Input channel operations
Input channel operations

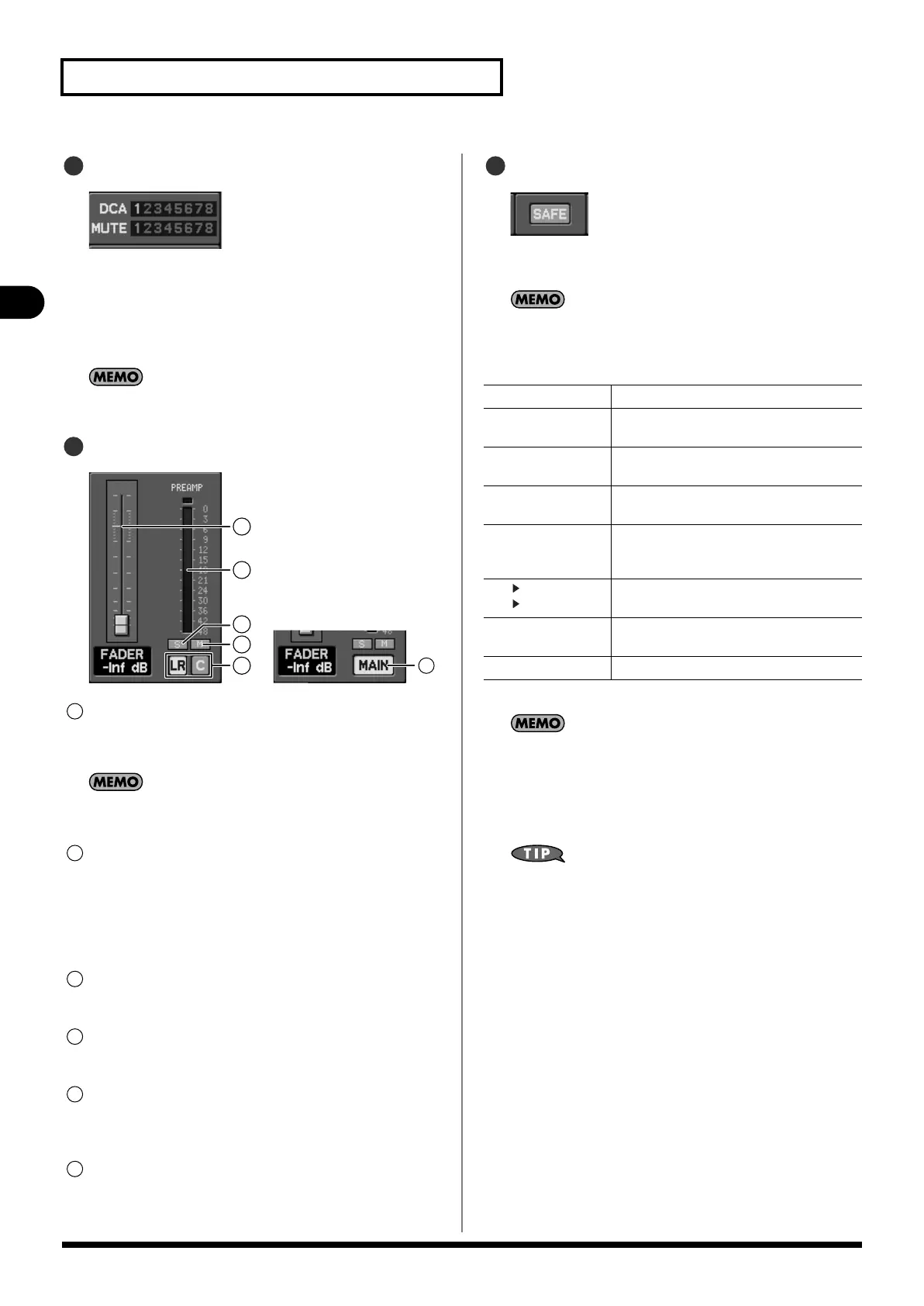

Group
fig.ScrChGroup.eps
This indicates whether the channel is assigned to a DCA group or
a MUTE group.
If you move the cursor to DCA GROUP or MUTE GROUP and press
[ENTER], the DCA/MUTE GROUP ASSIGN popup will appear,
allowing you to make DCA group or MUTE group assignments.
You can also access the DCA/MUTE GROUP ASSIGN popup by
pressing [F5 (DCA/Mute ASSIGN)].
Fader
fig.ScrChFader.eps
Fader
This adjusts the amount sent to the MAIN in a range of -Inf
dB– +10.0 dB.
You can make settings in finer increments by operating the
value dial while you hold down [SHIFT].
Channel meter
This indicates the signal level of the channel. For a stereo-
linked channel, two meters L and R are shown. The level
detection point is according to the setting in the METER
screen. For details, refer to “Editing the meter settings” (p.
96).
S button
This turns SOLO on/off for the channel.
M button
This turns MUTE on/off for the channel.
LR button / C button
These individually turn the send to the MAIN L/R and MAIN C
on/off. These are shown only when the LCR button is on.
MAIN button
This turns the send to the MAIN L/R/C on/off. This is shown
only when the LCR button is off.
SAFE button
fig.ScrChSafeGuide.eps
When this is turned on, scene recall will not affect the
channel.
This switches the state of the corresponding Channel recall
scope button (p. 125) in the GLOBAL SCOPE popup.
The function buttons have the following operations:
* CH 1–48 only.
The [F7 (ATT Ctrl)] setting is common to all channels CH1–48.
When the M-480 is configured as a Monitor console, it is
convenient to use the GAIN knob as an attenuator over the
shared inputs.
The [F7 (ATT Ctrl)] setting is stored in the M-480 as a system
parameter. It is not saved in scene memory.
When you press [F8 (Patchbay)] to access the PATCHBAY screen, the
PATCHBAY screen will appear with the currently selected channel
highlighted.
12
13
1
2
3
4
5
6
1
2
3
4
5
6
[F1 (LINK)] *
Turns channel link on/off (p. 51).
[F2 (NAME EDIT)] Accesses the NAME EDIT popup, where you can
specify the channel name (p. 52).
[F3 (COPY)] * Accesses the CH COPY popup, where you can
copy channel settings (p. 53).
[F4 (LIBRARY)] * Accesses the CH LIBRARY popup, where you
can use the channel library (p. 54).
[F5 (DCA/Mute
ASSIGN)]
Accesses the DCA/MUTE GROUP ASSIGN
popup, where you can assign the channel to
DCA groups and MUTE groups (p. 55).
[F6 ( MTX SENDS)]
[F6 ( AUX SENDS)]
Switches between the MTX sends display and
the AUX sends display.
[F7 (ATT Ctrl)] If this is on, the target of the GAIN knob will
change to controlling the channel attenuator.
[F8 (Patchbay)] Accesses the PATCHBAY screen (p. 87).
14
