Chapter 7 Making Global Settings for the TD-8
Chapter 7
Choosing the Output
Destination
To change the output destination for the sound of each pad
note. If you want to get the Ambience effect, select “MAS”
(MASTER).
The Ambience effect is not available for any output destination
besides “MAS.”

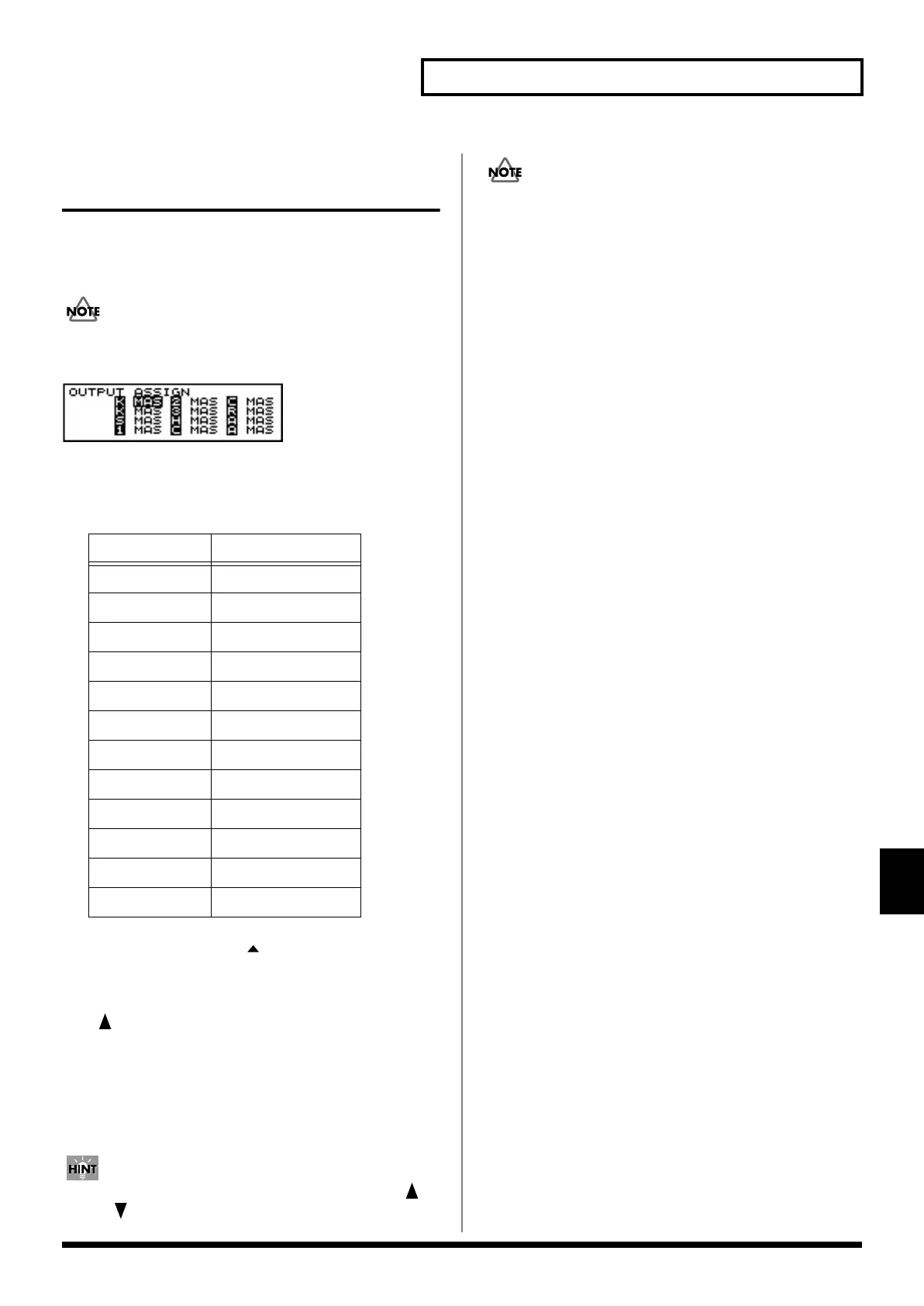

fig.08-022
Abbreviations in the display screen
The following is indicated on the screen.
1. Press [SETUP], then [F3 ( MENU)].
[SETUP] lights, and a pop-up menu appears.
2. Press [DEC/-], rotate the VALUE dial, or press CURSOR
[ ] to move the cursor to “OUT.”
3. Press [F3] to confirm your choice.
The “OUTPUT” screen appears.
4. Strike the pad.
The cursor moves to the setting for the pad that was struck.
You can make the selection by pressing CURSOR [ ]
or [ ] and [TRIG SELECT].
• The rim cannot be selected for TRIGGER INPUT 1 (KICK 1),
2 (KICK 2), 11 (AUX 1), or 12 (AUX 2).
• TRIGGER INPUT 2 (KICK2) and 12 (AUX2) can be used
only when two pads are connected to TRIGGER INPUT 1/2
(KICK1/2) or 11/12 (AUX2), respectively (p. 27).
5. Press [INC/+] or [DEC/-] or rotate the VALUE dial to
make the setting.
OUTPUT: MAS, M_L, M_R, DIR, D_L, D_R, M&D
MAS:
Stereo output from MASTER L (MONO), R according to
the mixer pan settings.
M_L:
Monaural output from MASTER L (MONO), regardless
of the mixer pan settings.
M_R:
Monaural output from MASTER R, regardless of the
mixer pan settings.
DIR:
Stereo output from DIRECT L, R according to the mixer
pan settings. No Ambience effect is applied.
D_L:
Monaural output from DIRECT L, regardless of the
mixer pan settings. No Ambience effect is applied.
D_R:
Monaural output from DIRECT R, regardless of the
mixer pan settings. No Ambience effect is applied.
M&D:
Stereo output from MASTER L (MONO), R and DIRECT
L, R according to the mixer pan settings. No Ambience
effect is applied.
Screen Symbol Trigger Input
K 1 (KICK1)
K 2 (KICK2)
S 3 (SNARE)
1 4 (TOM1)
2 5 (TOM2)
3 6 (TOM3)
H 7 (HI-HAT)
C 8 (CLASH1)
C 9 (CLASH2)
R 10 (RIDE)
A 11 (AUX1)
A 12 (AUX2)
