173
Appendices

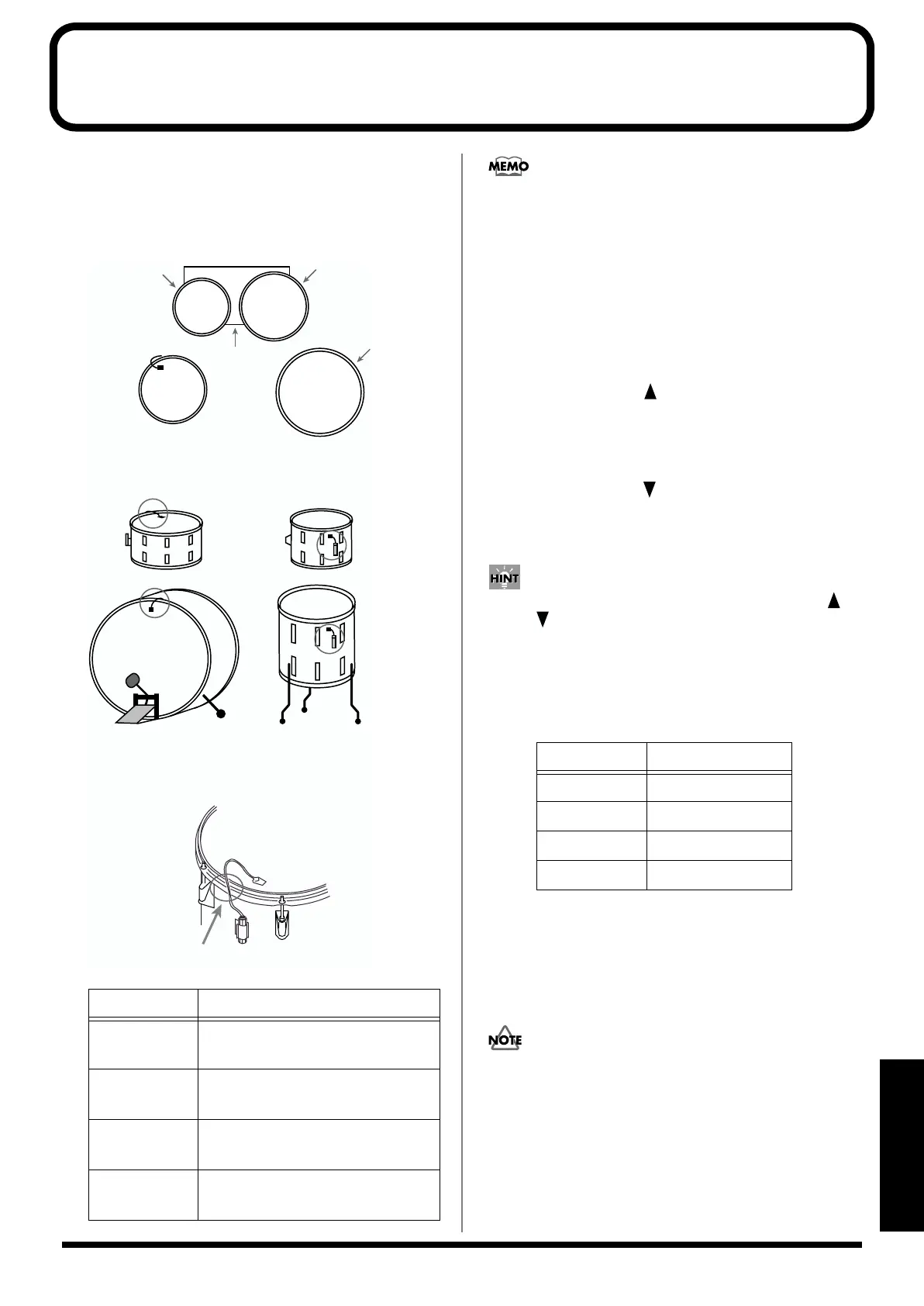

How to Use the Acoustic Drum Trigger
This section describes how to install a commercial drum
trigger.
1. Attach the acoustic drum trigger to the
acoustic drum.
fig.d-01.e
If the acoustic drum trigger of a tom has a low output
level, attach it to the head.
2. Use a monaural cable to connect the
acoustic drum trigger to the TD-8’s trigger
input jack.
3. Make trigger settings on the TD-8.
1. Press [SETUP], then [F1 (TRIG)].
[SETUP] is lit, and the “TRIG” screen appears.
2. Press CURSOR [ ] to move the cursor to BANK
number.
3. Press [INC/+] or [DEC/-] or rotate the VALUE dial
to select the BANK number.
4. Press CURSOR [ ] to move the cursor to trigger
type.
5. Strike a pad.
You can make the selection by pressing CURSOR [ ]
or [ ] and [TRIG SELECT].
6. Press [INC/+] or [DEC/-] or rotate the VALUE dial
to make the setting.
Refer to the following chart, then specify the
corresponding type of pad.
4. When the drum is struck, the TD-8 sounds.
If poor quality sound is produced, reposition the drum
trigger, and referring to “Using the TD-8 with Acoustic
Drums (Acoustic Drum Trigger)” (p. 134), make any
necessary adjustments.
• So that the acoustic drum trigger does not pick up extraneous
vibrations, do not allow it’s cable to contact the rim or shell
(body).
• Be sure to mute the bass drum and snare drum. If you use a
ring mute, cut away part of the ring mute, so the acoustic
drum trigger contacts the head directly.
• For details on adjusting the correspondence between playing
velocity and the TD-8’s volume, refer to p. 129.
Drum Where to Install
Kick On the playing head (5 to 10 cm
from the rim)
Snare drum On the playing head (2 to 3 cm from
the rim)
Tom tom
On the shell (next to a lug located
about 1 cm from the playing head rim)
Floor tom
On the shell (next to a lug located
about 1 cm from the playing head rim)
Tom tomSnare drum
Kick drum
Froor tom
Make sure that the wire does not touch
Screen Chart Type Used
KIK kick drum
SNR snare drum
TOM tom-tom
FLR floor tom
To Next Page
