Sega Double Spin User Manual

92

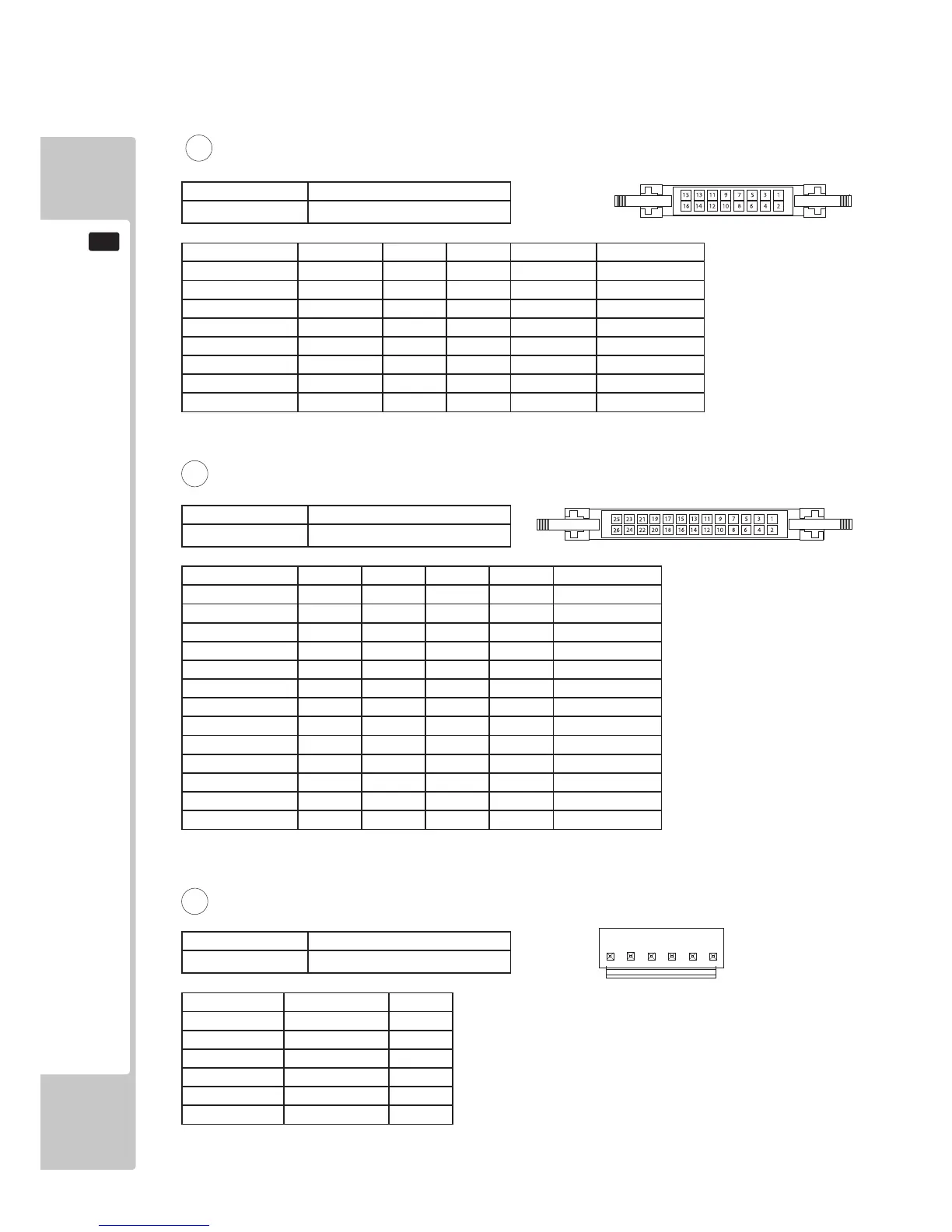

GAME BOARD
16
27
MOTOR PORT D
Function O/P Pin
STEPPER 12 1
12v 2
STEPPER 13 3
STEPPER 14 4
12v
5
STEPPER 15
6
LOCATION TYPE
J27 6W JST VH - VNR-6N
Function O/P Pin Pin O/P Function
Solenoid #2 DLS_7
1 2
12v External
Prize Vend #5 DLS_8
3 4
12v External
BOT Wheel C DLS_9
5 6
12v External
Ticket Vend #3 DLS_10
7 8
DHS_10 Ticket Vend #3
BOT Wheel D DLS_11
9 10
GND
BOT Wheel L DLS_12
11 12
GND
Ticket Vend #4 DLS_13
13 14
DHS_13 Ticket Vend #4
GND
15 16
GND
LOCATION TYPE
J25 16W JST RA TYPE
VEND OUTPUTS
25
Function I/P Pin Pin I/P Function
+5V 1 2 +5V
DIGIN MUX16 3 4 MUX17 DIGIN
DIGIN MUX18 5 6 MUX19 DIGIN
GND 7 8 GND
DIGIN MUX20 9 10 MUX21 DIGIN
DIGIN MUX22 11 12 MUX23 DIGIN
GND 13 14 GND
DIGIN MUX24 15 16 MUX25 DIGIN
DIGIN MUX26 17 18 MUX27 DIGIN
GND 19 20 GND
DIGIN MUX28 21 22 MUX29 DIGIN
DIGIN MUX30 23 24 MUX31 DIGIN
+12V 25 26 +12V
LOCATION TYPE
J26 26W JST RA TYPE
DIGITAL INPUTS MUX16-31
26
