Sega Double Spin User Manual

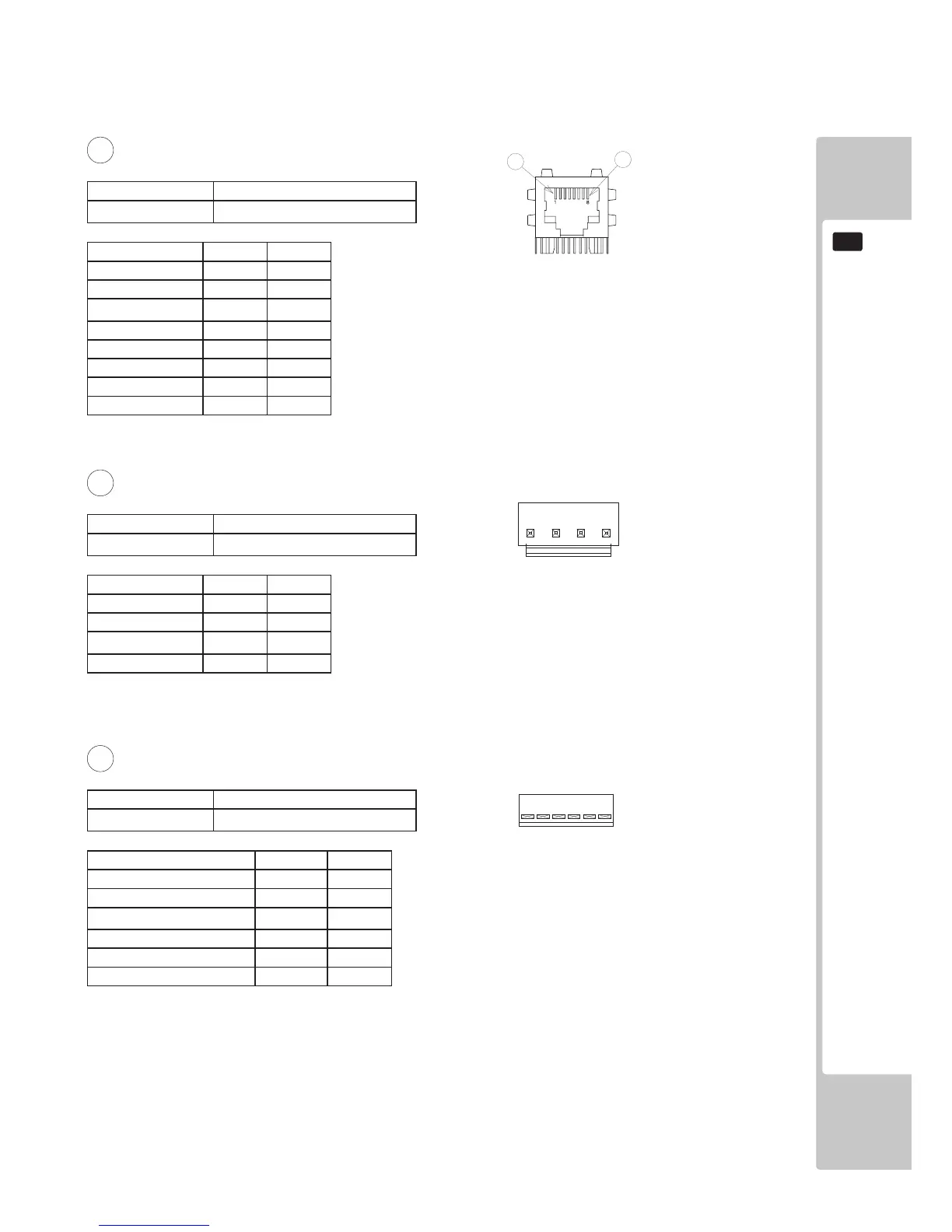

GAME BOARD
85
16
Function O/P Pin
TD + 1
TCT 2
TD - 3
RD + 4
RCT 5
RD - 6
NC 7
C_GND 8
Function O/P Pin
+5V 1
+5V 2
0V 3
0V 4
Function O/P Pin
+12V 1
+5V 2
Ticket #2 Meter
Meter 2 3
Ticket #3 Meter
Meter 3 4
Spare Open Collector
Spare_2
5
Spare Open Collector
Spare_3
6
LOCATION TYPE
J4 RJ45
LOCATION TYPE
J5 4W JST VH
LOCATION TYPE
J6 6W JST NH
4
5
6
Ethernet
Power
Counters / Meters
1
8
1 2 3 4 5 6
