This product comes equipped with a Crane NRI Coin Acceptor. To adjust the price of play ALL credit setting are
adjusted via the EXCEL CREDIT BOARD.
The Credit Board is controlled by 2 DIL Switches. These allow the operator to select the price of play, type of coin
acceptor and region.

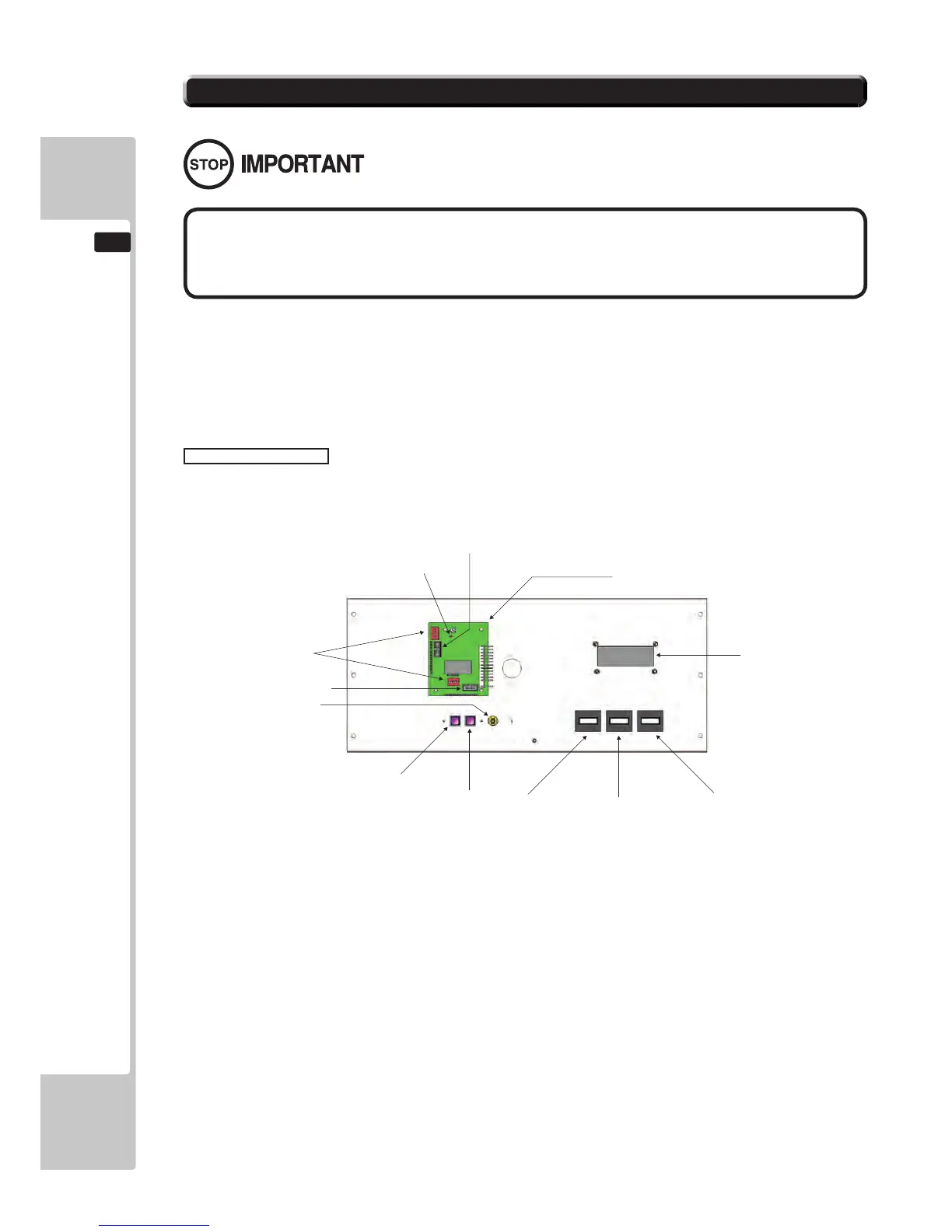

EXCEL Credit Board
12-3 ADJUSTING THE PRICE OF PLAY (EXCEL)
DIL SW3 (Regional Settings)
Adjust these switches to specify the type of Coin Acceptor used and currency.
Default = SW1&SW2 ON - NRI in parallel mode, Sterling.
TEST BUTTON Provides access to the TEST MENU when pressed.
SERVICE BUTTON Provides a SERVICE CREDIT when pressed
Status LED Flashes when functioning.
CHANNEL 1 Not Used
CHANNEL 2 To Coin Acceptor (SR3 TYPE.)
DIL SW1 (credit settings) Adjust to required price of pay.
VOL CONTROL MAIN VOLUME ADJUSTMENT (FRONT SPEAKERS)
DIP Switches
Status LED
Channel 1
Credit PCB
A/N Display
Counter
Counter
Counter
Test SW
Service SW
Volume Control
Channel 2
● The price of play is determined by the conguration of switches located
on either an EXCEL board or VTS board. The type of board used is determined
by product location. Switch settings for both types of board remain the same.
