The SWITCH UNIT and COUNTERS are housed within the COINTOWER. To access these controls you will need
to open the COIN door, the switches and counters can be found directly on the rear face of the Tower.

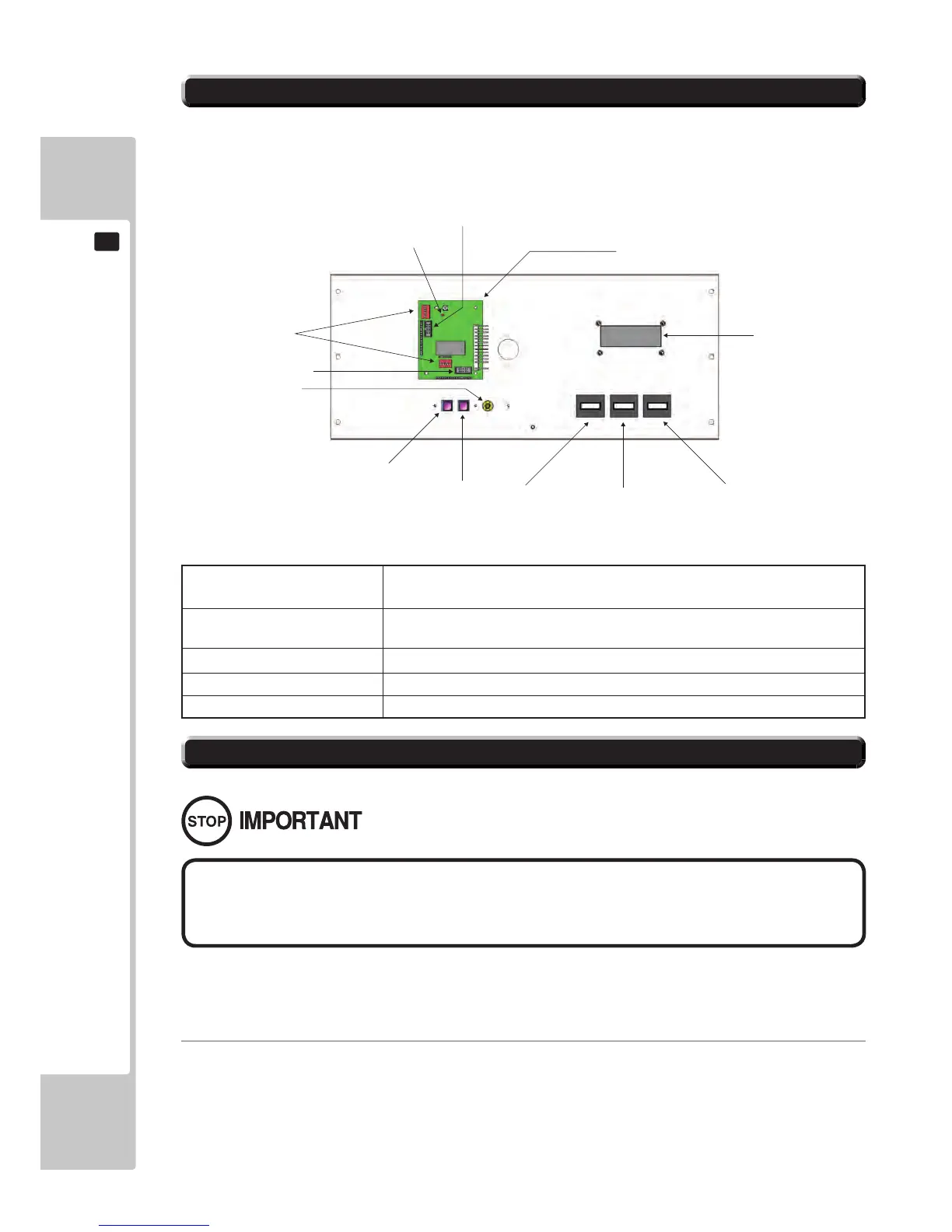

9-1 SWITCH UNIT AND COIN METER.
DIP Switches
Status LED
Channel 1
Credit PCB
A/N Display
Counter
Counter
Counter
Test SW
Service SW
Volume Control
Channel 2
DEVICE FUNCTION
TEST BUTTON Press to enter TEST MODE - Also used to enter choices selected within
TEST MODE
SERVICE BUTTON Press for SERVICE CREDIT - Also used to scroll through TEST MENUs
COIN IN COUNTER Counts inserted coins (£0.10 or $0.10 = 1 count)
VOLUME CONTROL Adjusts audio level
9-2 TEST MENU
1
Press the TEST Button after powering on the unit to display the following TEST MENU.
The details of changes to Test Mode settings are saved when you exit from each
Test Mode by selecting EXIT. Be careful because if the power is turned off before
that point, changes to the settings will be lost.
SYSTEM TEST MODE can be used to check the information or the operation of UNCOCH (RedOne), adjust Gameplay
settings, and perform coin/credit settings.
For further details, see the UNCOCH (RedOne) section in this service manual.
To Next Page
