Sega Double Spin User Manual

106
PARTS LIST
18

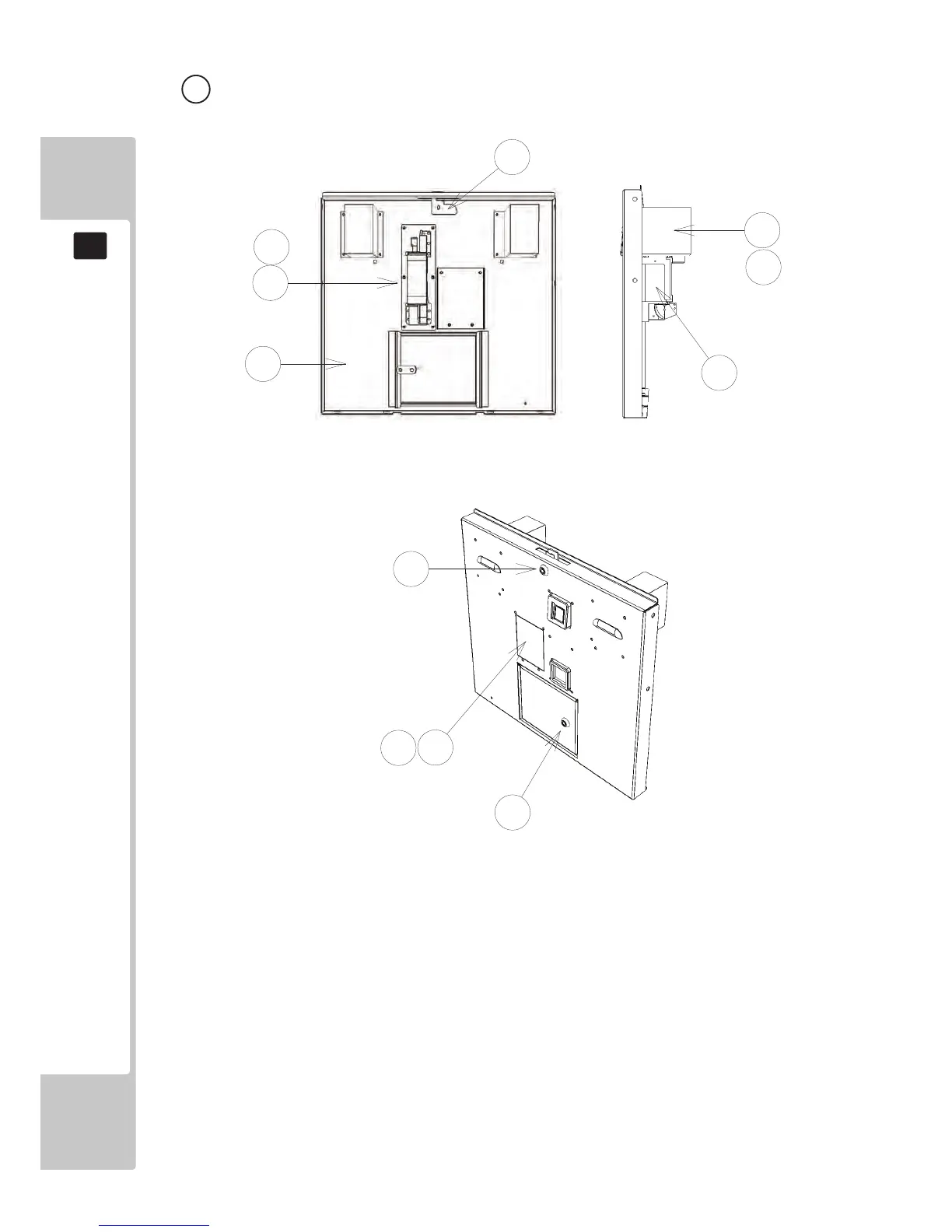

5 ASSY FRONT CONSOLE (DB-1120XUK) (D-1/1)
ITEM NO PART NUMBER DESCRIPTION QTY
****1 DB-1121XUK FRONT CONSOLE 1
****2 DB-1122UK PLATE DBA BLANKING 1
****3 DB-1123UK TNG LID 1
****101 220-0001-01UK TICKET VEND UNIT TD-963CR 2
****102 220-5610-01 COIN MECH SR3 1
****103 220-5575UK LOCK (J9117) KEY TO LIKE 22MM W CAM 1
****104 220-5574UK LOCK KEYED DIFFERENT 7087-10 1
****105 220-5786-R A0710 IL FRONT PLATE ROHS COMPLIANT 1
****201 050-U00400 M4 NUT NYLOK PAS 8
****202 050-F00400 M4 NUT FLG SER PAS 10
1
2
3
101
102
103
104
105
201
202
202
