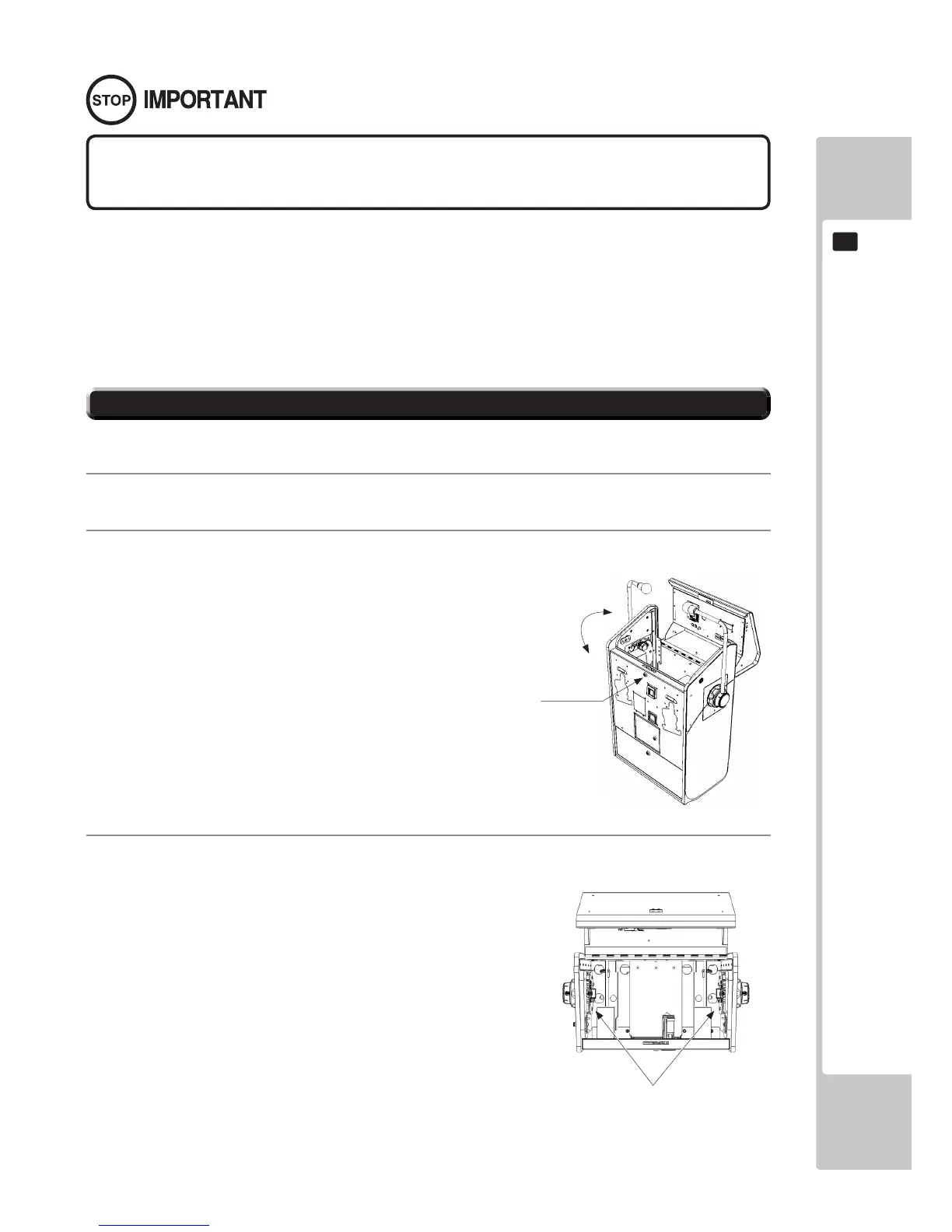

10-1 AJUSTING/CHANGING THE POT
Be sure to remove the power before attempting service or repair to the controller.
Failure to remove power may result in component damage or shock hazzard.
In cases where the Handle operability is poor and/or the adjustment or replacement of the POT is required. It may be
nescessary to replace either the COIL or the POT from within the controller depending on the fault condition.
In game, when the handle is pulled fully along its path the gage around the outside of the upper disc should indicate
a MAX spin. If this is not the case then it is possile that the POT within the controler may need to be adjusted or re-
placed. Carefully follow the instructions below to carry out this operation.
An adjutable wrench is required for the following procedure.
1
Turn off the power.
2
Using the key - open the Console lid to access either left or right controllers.
3
Locate the controllers. Identify the controller which requires maintenance. For the purpose of this exercise
we will be looking at the right hand controller.
Controllers
Left Right
Unlock and open console door
To Next Page
