Sega Double Spin User Manual

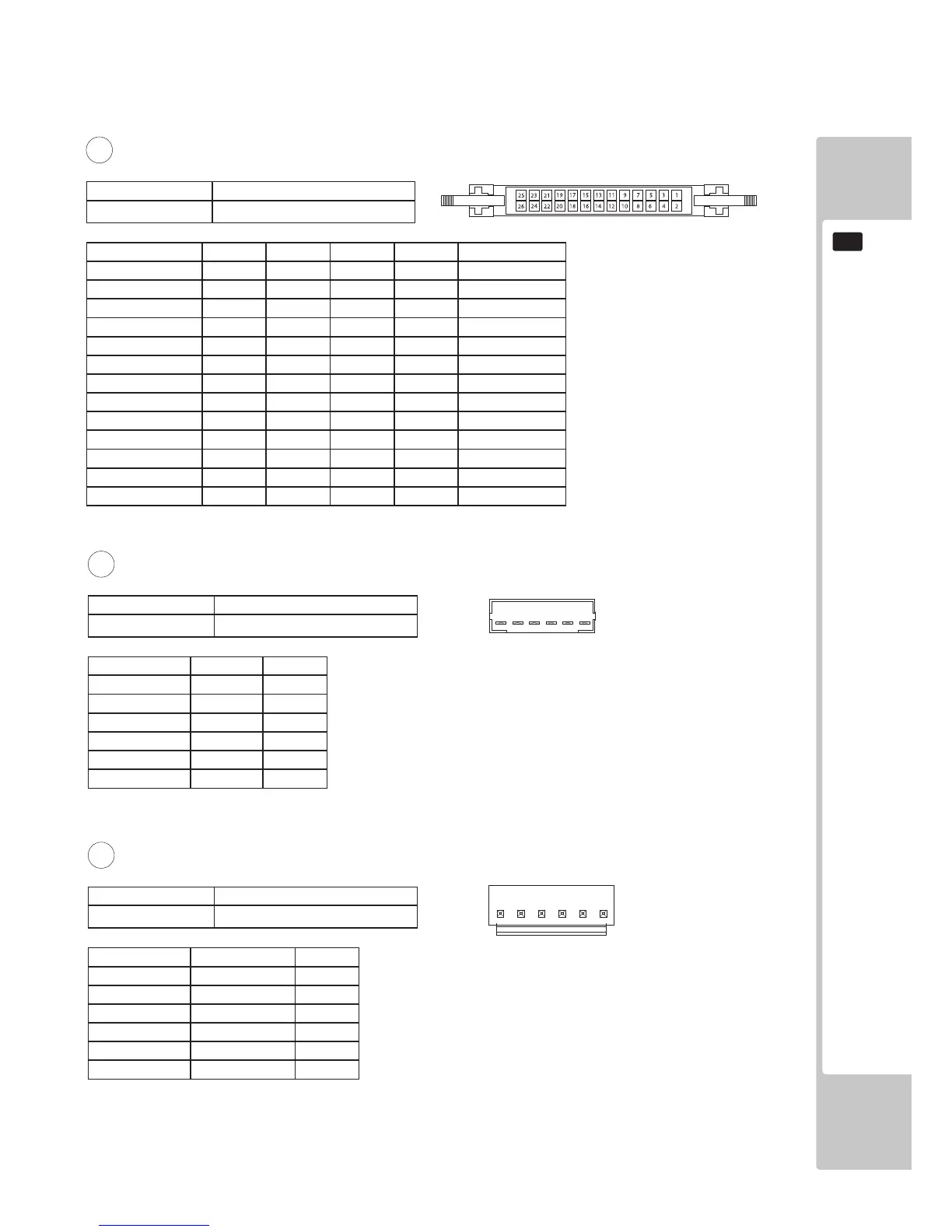

GAME BOARD
89
16
Function I/P Pin Pin I/P Function
5v 1 2 5v
L/H Handle AID 0 3 4 AID 1 R/H Handle
GND 5 6 GND
GND 7 8 GND
AID 2 9 10 AID 3
GND 11 12 GND
GND 13 14 GND
AID 4 15 16 AID 5
GND 17 18 GND
GND 19 20 GND
Audio Volume AID 6 21 22 AID 7
GND 23 24 GND
12v 25 26 12v
LOCATION TYPE
J16 26W JST RA TYPE
ANALOGUE INPUTS
16
Function O/P Pin
RGB Latch
1
RGB Data
2
RGB CLK
3
GND 4
+5V
5
LED SUPPLY
+5V
6
Function O/P Pin
STEPPER 8 1
12v 2
STEPPER 9 3
STEPPER 10 4
12v
5
STEPPER 11
6
LOCATION TYPE
J17 6W JST PH K S
LOCATION TYPE
J18 6W JST VH - VNR-6N
17
18
RGB
MOTOR PORT C
