Sega Double Spin User Manual

107
PARTS LIST
18
ITEM NO PART NUMBER DESCRIPTION QTY
****1 DB-1151UK BRKT DIAGNOSTICS 1
****101 838-14548-01AUK SW & VOL CTL BD 1
****102 EP1380-01 EXCEL CREDIT BOARD 1
****103 220-5643UK 12V COIN METER 3
****105 EP1429 LCD MDL 2X16 PC1602LRS 1
****106 OS1098 CRIMP BELL END SMALL 6
****107 280-L00706-PM STANDOFF 6.4MM HOLE PM 4
****201 000-P00308 M3X8 MSCR PAN PAS 3
****202 068-330808-PN M3 WSHR 8OD FLT NYLON 11
****203 000-F02508 M2.5X8 MSCR CSK BZ 4

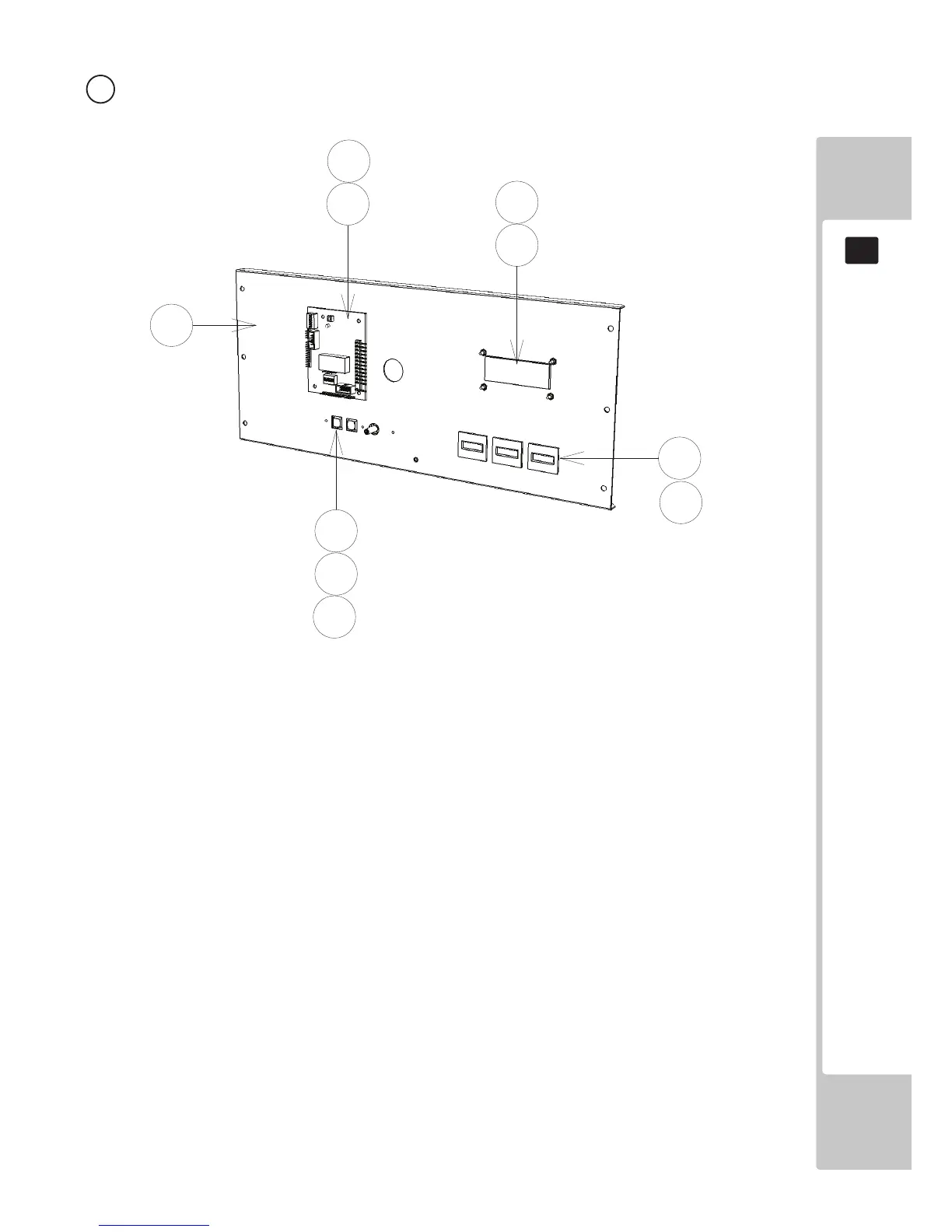

6 ASSY DIAGNOSTICS CONSOLE (DB-1150UK) (D-1/1)
1
101
102
107
106
103
105
201
202
203

Sega Double Spin Specifications

General

Brand	Sega
Model	Double Spin
Category	Arcade Game Machines
Language	English
