Sega Double Spin User Manual

88

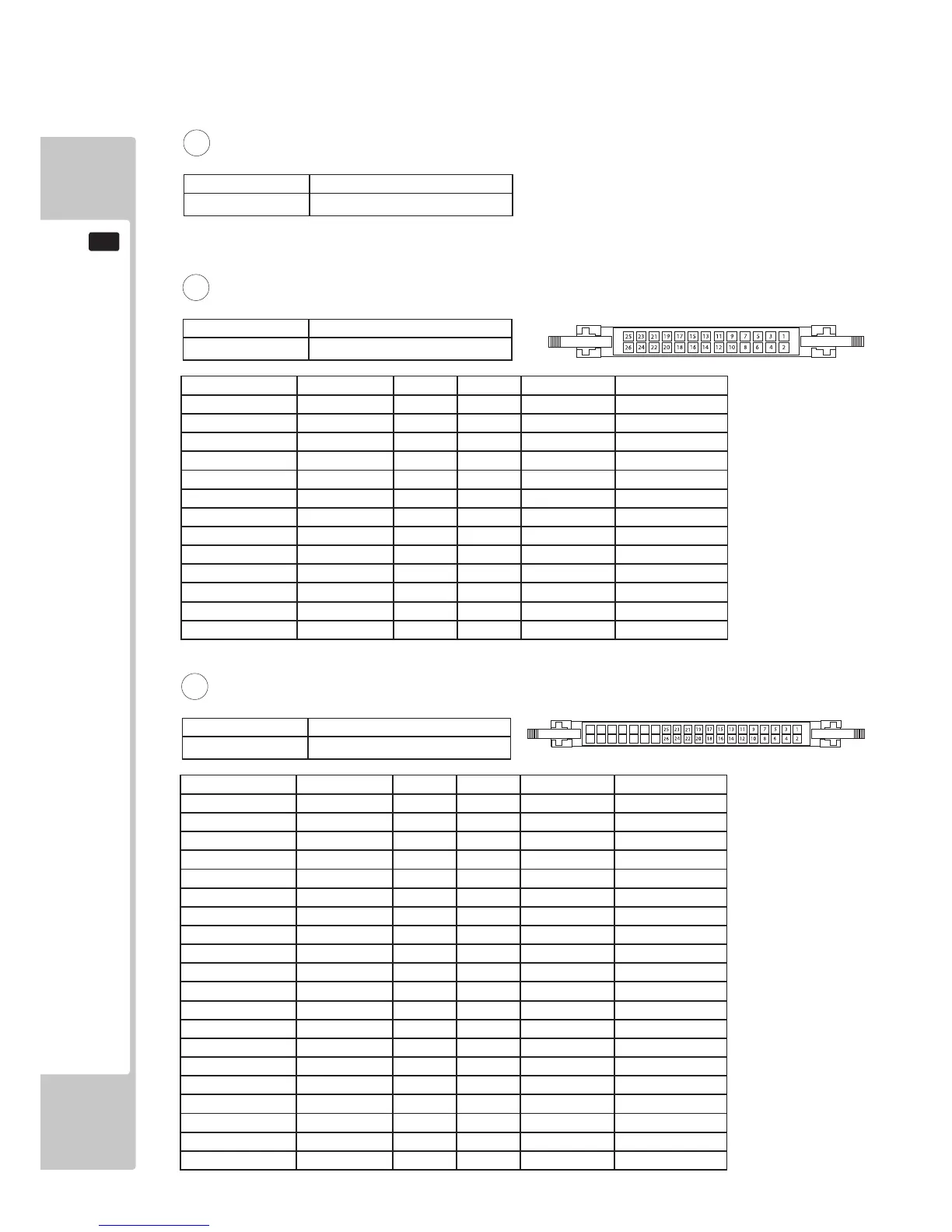

GAME BOARD
16
LOCATION TYPE
J14 26W JST RA TYPE
LOCATION TYPE
J15 40W JST RA TYPE
LOCATION TYPE
J13 5W SIL HDR
14
13
DIRECT DIGITAL INPUTS
LED MUX ARRAY
BOOT LOADER - DEV PURPOSES ONLY
Function I/P Pin Pin I/P Function
5V 1 2 5V
GND 3 4 GND
COIN IN 1 DID0 5 6 DID1 NOT USED
TICKET COUNT DID2 7 8 DID3 TICKET COUNT
GND 9 10 GND
WHEEL SW T DID4 11 12 DID5 NOT USED
WHEEL SW B DID6 13 14 DID7 NOT USED
GND 15 16 GND
ENC TOP DID8 17 18 DID9 ECN BOT
NOT USED DID10 19 20 DID11 NOT USED
GND 21 22 GND
NOT USED DID12 23 24 DID13 NOT USED
12V 25 26 12V
Function Wire Code Pin Pin Wire Code Function
R0 YEL/BLK 1 2 YEL/BRN R1
R2 YEL/RED 3 4 YEL/ORG R3
R4 YEL/BLU 5 6 YEL/PUR R5
R6 YEL/GRY 7 8 YEL/WHT R7
C1 BLU/BLK 9 10 BLU/BRN C17
C2 BLU/RED 11 12 BLU/ORG C18
C3 BLU/YEL 13 14 BLU/GRN C19
C4 BLU/PUR 15 16 BLU/GRY C20
C5 BLU/WHT 17 18 BLU/PNK C21
C6 PUR/BLK 19 20 PUR/BRN C22
C7 PUR/RED 21 22 PUR/ORG C23
C8 PUR/YEL 23 24 PUR/GRN C24
C9 PUR/BLU 25 26 PUR/GRY C25
C10 PUR/WHT 27 28 PUR/PNK C26
C11 GRY/BLK 29 30 GRY/BRN C27
C12 GRY/RED 30 32 GRY/ORG C28
C13 GRY/YEL 32 34 GRY/GRN C29
C14 GRY/BLU 34 36 GRY/PUR C30
C15 GRY/WHT 36 38 GRY/PNK C31
C16 ? 38 40 ? C32
15
27
28
29
30
31
32
33
40
39
38
37
36
35
34
