PARTS LIST
18

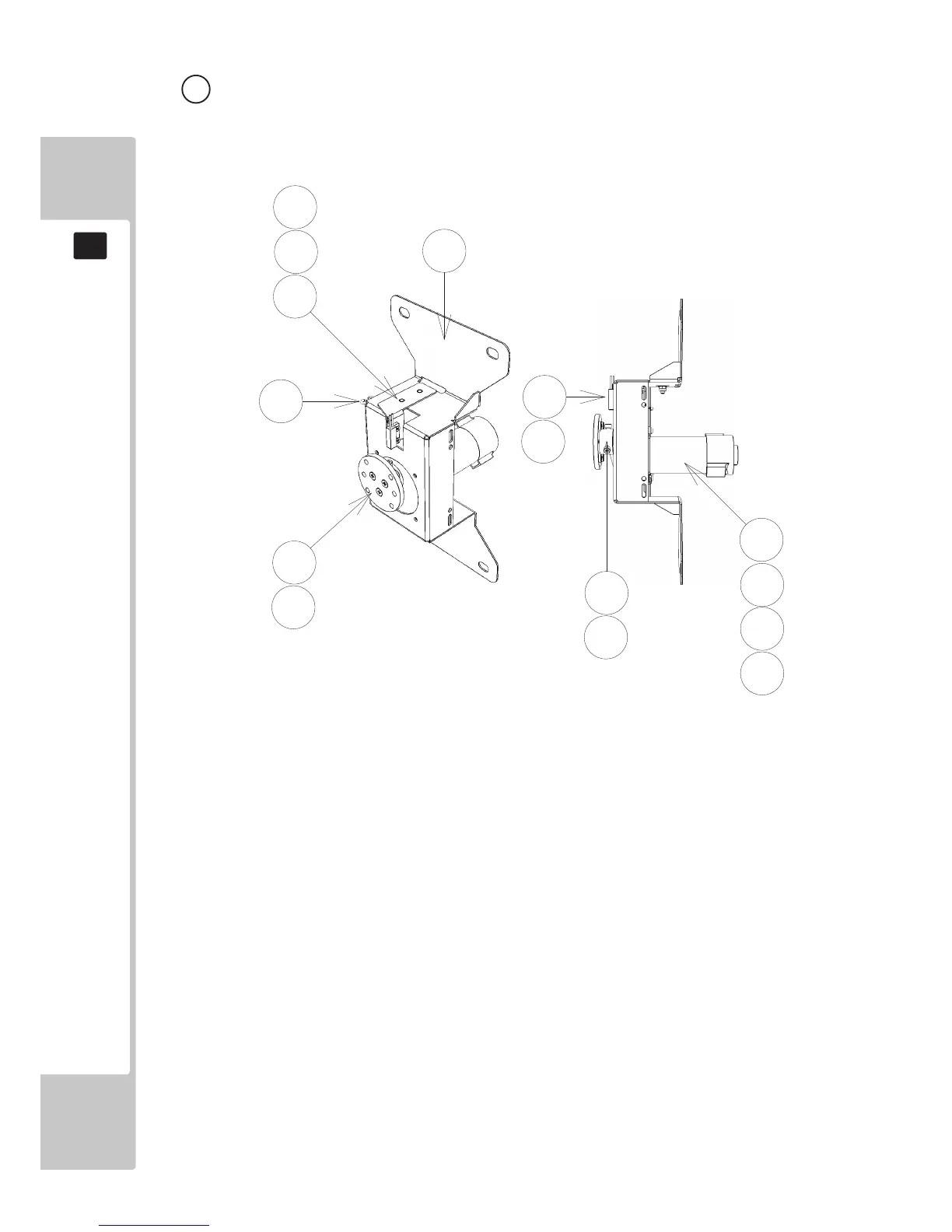

9 ASSY MOTOR STEPPER (DB-1450UK) (D-1/1)
ITEM NO PART NUMBER DESCRIPTION QTY
***1 DB-1451UK BRKT MTG MOTOR 1
***2 DB-1452UK COUPLER MOTOR SHAFT 1
***3 DB-1453UK COUPLER MOTOR PLATE 1
***4 DB-1454UK BRKT MTG MAG SWITCH 1
***101 350-012-208UK MOTOR DC 12V W/GB X0229760 1
***102 EP1406 STOP SWITCH CHERRY MP201801 1
***103 280-A01248-PM ROUTER TWIST D12 SO4.8 PAN MED 2
***201 020-000416 M4X16 SKT CAP 7
***202 000-F00416 M4X16 MSCR CSK PAS 3
***203 068-441616 M4 WSHR 16OD FLT PAS 6
***204 050-W00400 M4 NUT WING TYPE 2 PAS 2
***205 060-S00400 M4 WSHR SPR PAS 4
***206 000-F00310 M3X10 MSCR CSK PAS 2
1
2
3
101
102
103
201
201
202
203
203
204
205
206
4
