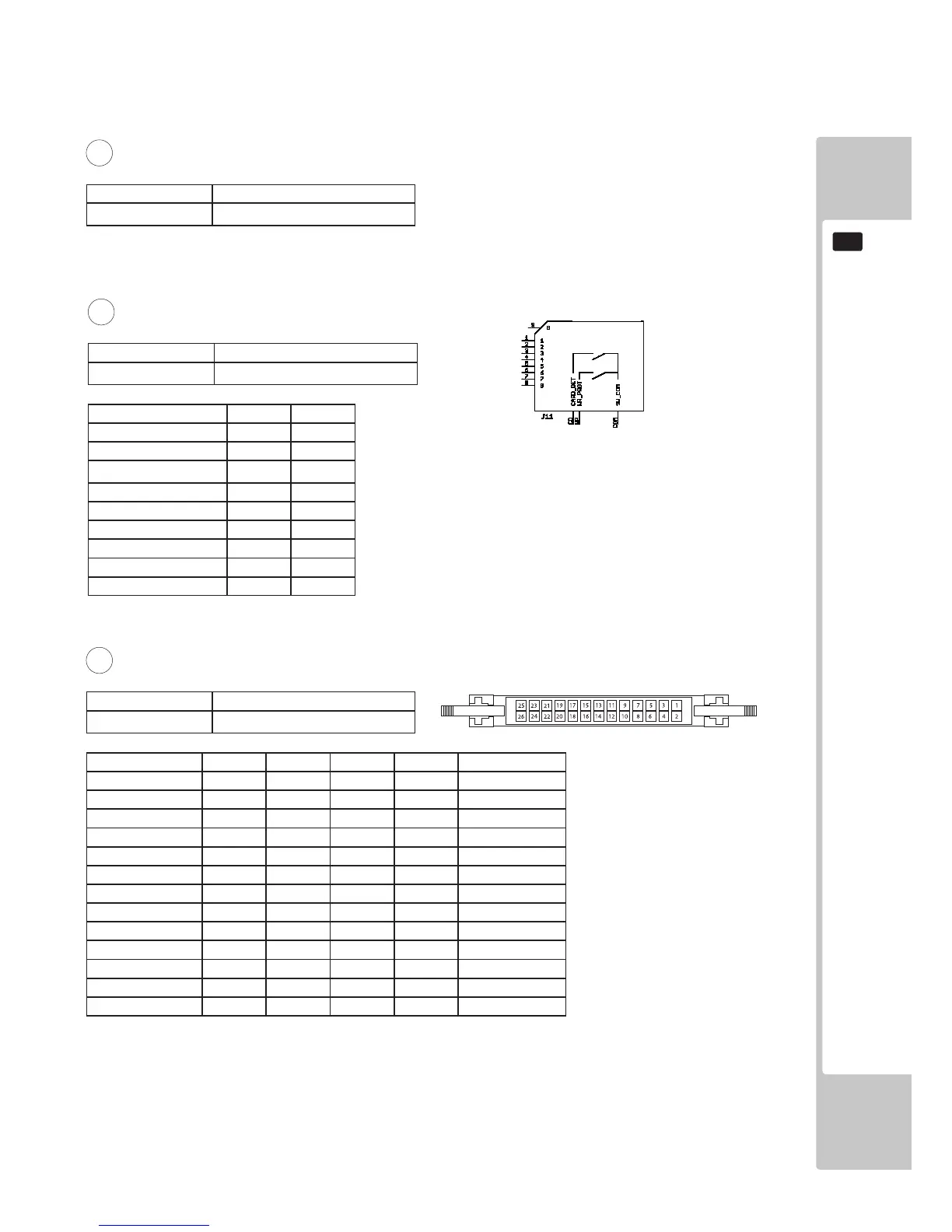

LOCATION TYPE
J10 N/A
10
NOT USED
Function O/P Pin
CS 1
DATA IN (MOSI)
2
GND
3
PWR
4
CLK (SCLK) 5
GND 6
DATA OUT (MOSO) 7
N/C 8
N/C 9
LOCATION TYPE
J11 4W JST VH
11
SD CARD READER FAT16
Function O/P Pin Pin O/P Function
PWR +5V 1 2 +5V PWR
START SW MUX0 3 4 MUX1 UP SW
RIGHT SW MUX2 5 6 MUX3 DOWN SW
GND GND 7 8 GND GND
LEFT SW MUX4 9 10 MUX5 SW 1
SW 2 MUX6 11 12 MUX7 SW 3
GND GND 13 14 GND GND
SW 4 MUX8 15 16 MUX9 SW 5
SW 6 MUX10 17 18 MUX11 REFIL SW
GND GND 19 20 GND GND
TEST SW MUX12 21 22 MUX13 SERVICE SW
DIP SW 1 MUX14 23 24 MUX15 DIP SW 2
PWR +12V 25 26 +12V PWR
LOCATION TYPE
J12 26W JST RA TYPE
12
DIGITAL INPUTS MUX0-15
To Next Page
