11 FEATURE WHEELS UPR & LWR
The two main features of this game are the spinning discs or feature wheels.
Each time a handle is pulled, the corresponding wheel will rotate at a speed chosen by the player when pulling down
on each handle. The speed of the disc is determined using the gauge on each of the outer discs. When a player pulls
down on the handle the gauge increases accordingly. The further a handle is pulled down the faster/longer the disc
will spin.
For information of replacing the LED's within the feature wheels please refer to Chapter 13 - Lamps and Lighting in this manual
.
The Game is presented in two formats, a £1/€1/$1 game and a 50p/50c/50¢ game. The denomination of the game is
determined by the upper disc. By default the games are shipped from the maunfacturers with the £1/€1/$1 disc tted
and the 50p/50c/50¢ supplied in the installation kit box alongside this manual and the billboard.

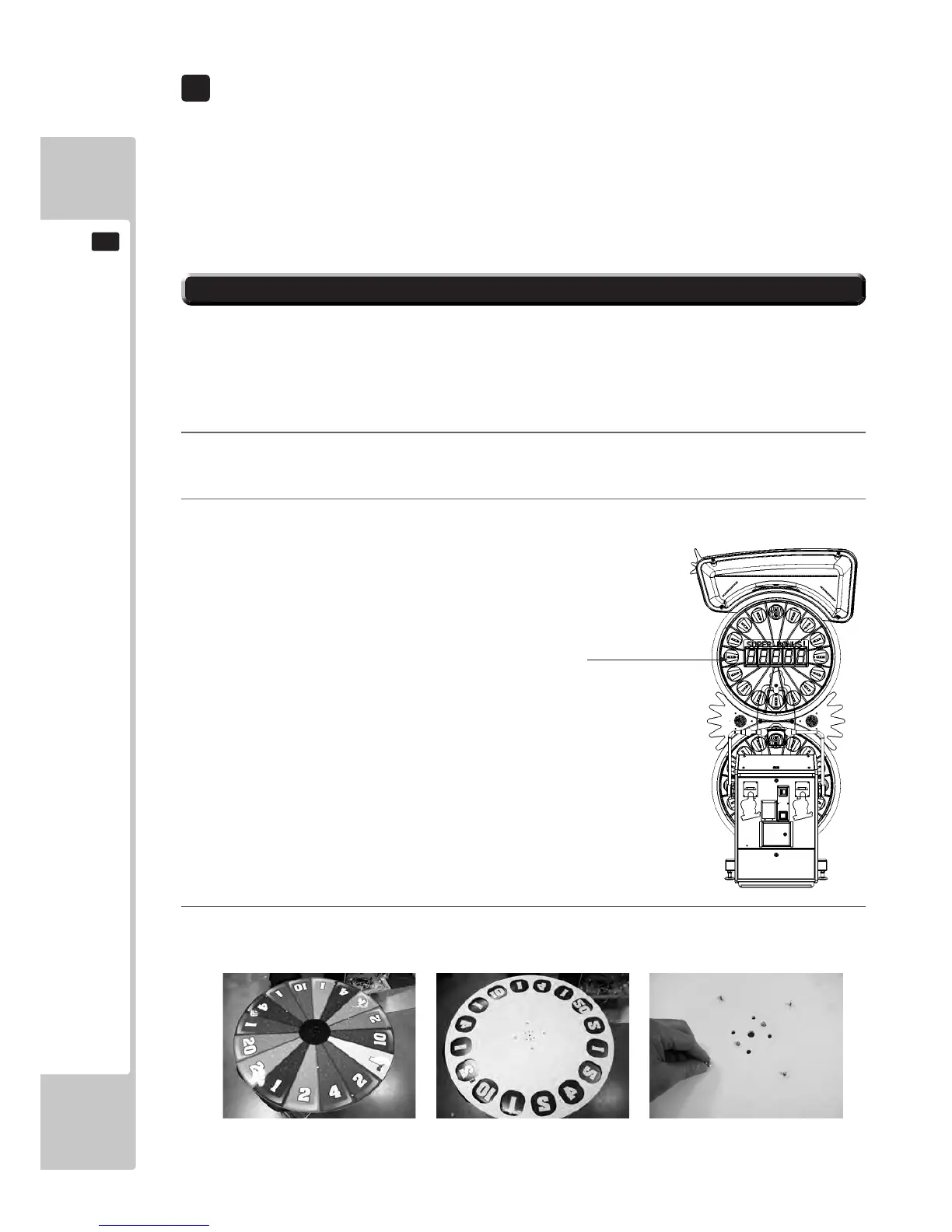

11-1 CHANGING UPPER DISC ARTWORK
2
Remove the outer and inner upper discs (please refer to Chapter 13 - Lamps and Lighting of this manual for
detailed instructions on how to remove the outer upper disc assy).
1
Remove the power from the cabinet and disconnect the main lead.
3
Once the inner disc has been removed, carefully turn it over and place it down on a protective surface to
prevent it from scratching and remove the M4 (4) Hex Nuts from the disc centre.
OUTER UPPER DISC
