16.5 Labeling
Function Keys
The
function keys on the OP27 are labeled ex–works as follows:
F1 to F14
K1 to K10
A set of unlabeled strips is enclosed with the OP. This means that the keys on
the OP can be labeled according to individual systems.
Proceed as follows to replace the labeling strips:
1.
Lay down the device with its front plate facing downwards.
2.
Remove the labeling strips to be replaced from the unit.
3.
Insert the new strips
Ê
with the inscription facing downwards into the slits
at the rear of the front plate (see Figure 16-3).
Note
Labeling on strips must be smudge-proof before they are inserted. If a key
-
board overlay is soiled on the inside, it cannot be cleaned and has to be
returned to the works for replacement.
Ê
Ê
Ê

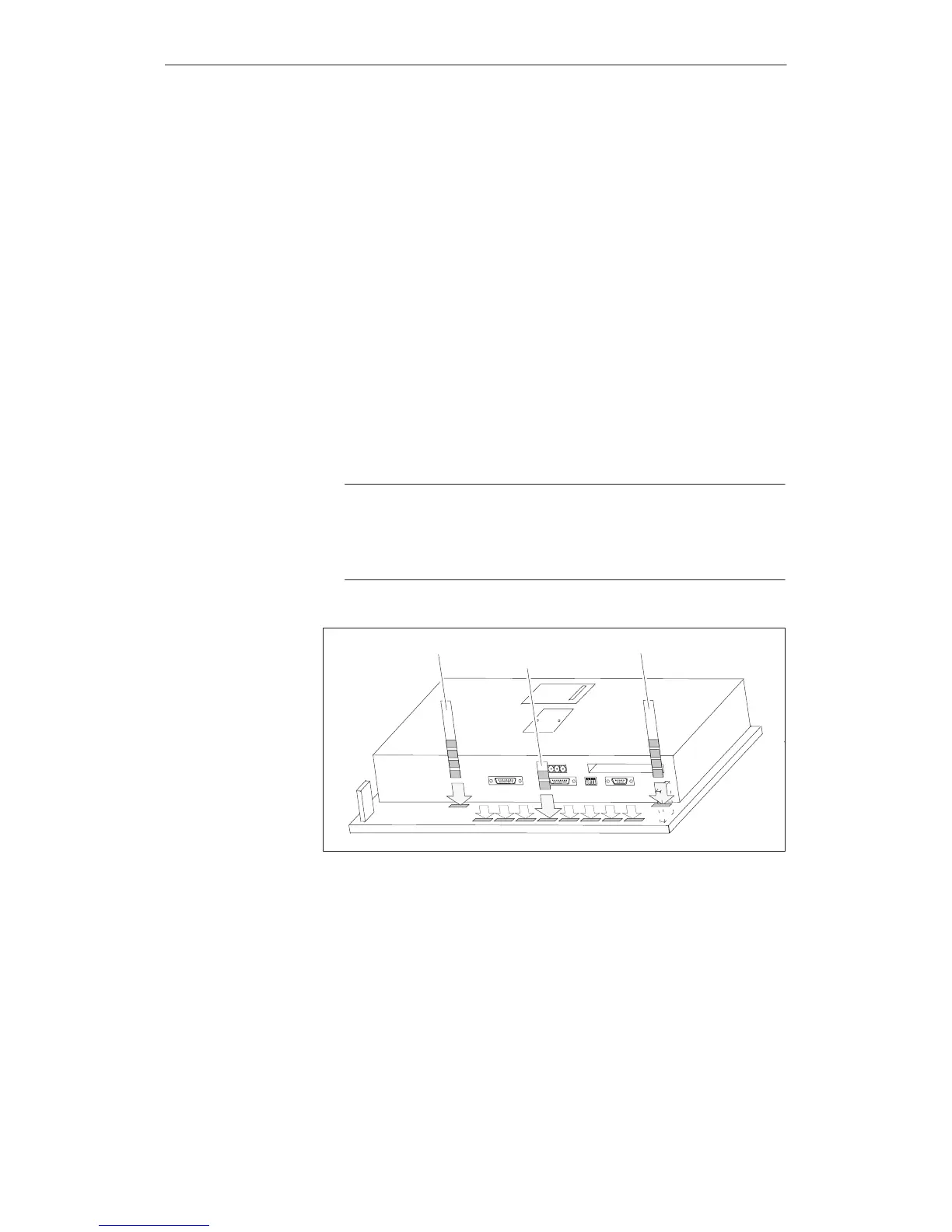

Figure 16-3 Inserting labeling strips
State
on delivery
Replacing labeling
strips
OP27 Unit Description
