4-3
OP27,
OP37 Equipment Manual
Release 05/99
4.2 Standard
Screens
A
standard configuration containing standard screens is supplied with the con
-
figuration software ProT
ool for the OP27 and OP37. The functions needed for
basic operation of the OP have been implemented on the screens. They
include, for example, Call Message Buf
fer
, Edit Passwords and Change Param
-
eters Online. The individual functions are described in this manual on the basis
of the standard screens.
Process-specific implementation, such as event messages or screens for the
process, are not included in the standard screens.

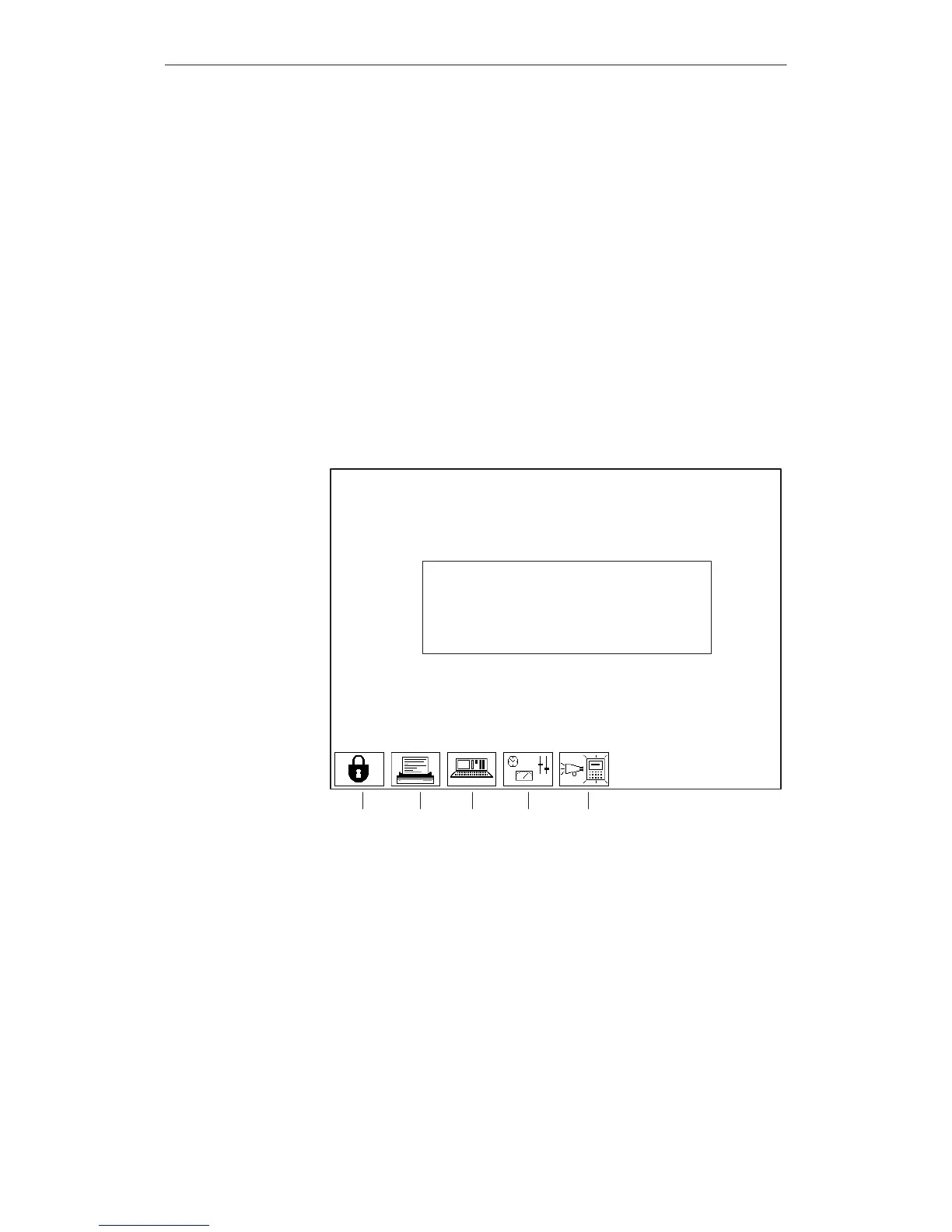

The standard screens are called in via soft keys on the main screen. Figure 4-2
provides an example of the main screen of the OP37.
¬ Edit
Password (Chapter 5)
Printer Settings (Chapter 7)
®
Status/Control T
ag (Chapter 10)
¯
System Settings (Chapter 1
1)
°
Messages (Chapter 6)
¬
®
¯
°
Figure 4-2 Main screen of the OP37 (example)
Figure
4-3 illustrates the standard screen hierarchy
. Detailed information on the
functions and operation of standard screens is provided in the corresponding
sections of this manual.
Purpose
Main
screen
Screens
