OP27, OP37 Equipment Manual
Release 05/99
18.3.1 Installing the Control Panel Interface
An OP27 or an OP37 can accommodate either a control panel interface or a
direct key module (Section 18.2). The procedure for installing a control panel
interface is as follows:
1. Set the OP down with its front plate facing downwards.
!
Caution
 Make sure that the OP is disconnected from the power supply .
 Always follow the ESD guidelines in the Appendix when working on open
devices.
2. Release the two pop rivets ¶ and then remove the cover · indicated in
Figure 18-8 from the rear panel of the OP .
¶
¶
·

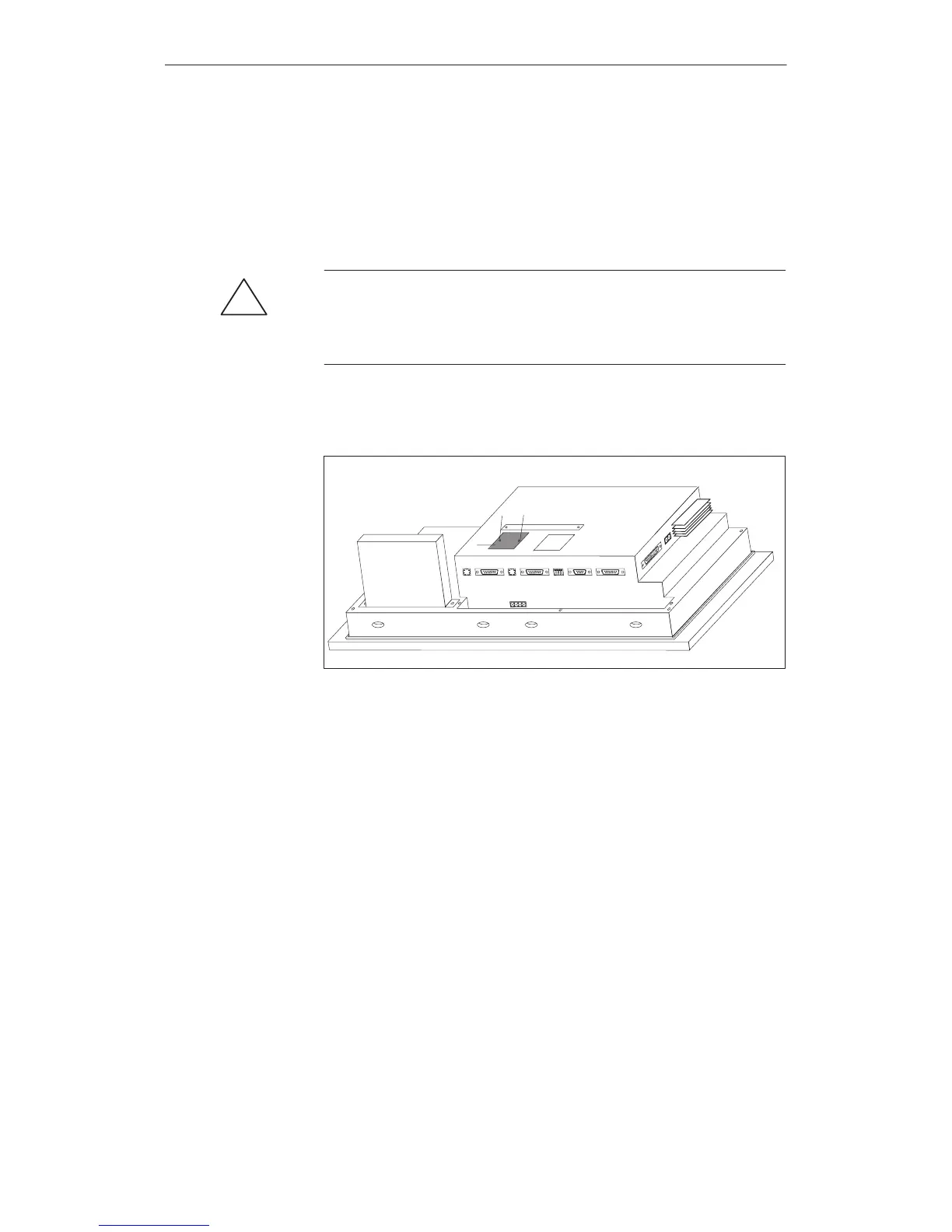

Figure 18-8 Removing the cover (example OP37)
Options
