19.4.3 Replacing the Floppy Disk Drive
To
replace the floppy disk drive, perform the following steps:
Step Action
1 Open the OP37, as described up to and including Step 3 in Section 19.4.1.
Study the safety notes contained in that section.

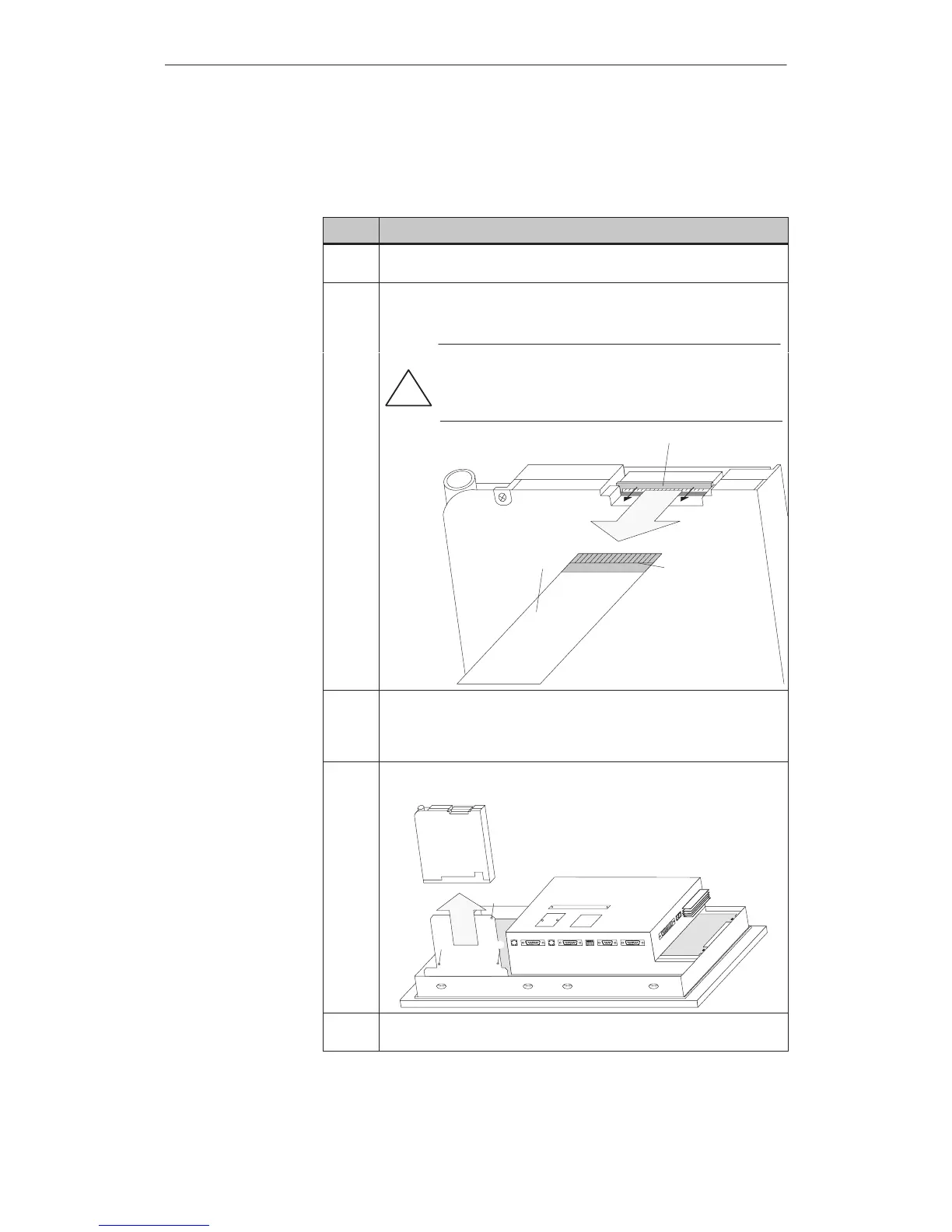

2
Open the clamp lock ¶ by drawing it carefully with your fingertips on
both sides (see black arrows) in the direction of the arrow until it reaches
its end position.
Caution
Do
not tilt the clamp lock or pull it too sharply
, because it
may break.
!
Blue
cable
terminal
¶
·
3 Remove the ribbon cable · (see figure in Step 2). When the cable is
inserted in the in the terminal piece of the replacement floppy disk drive,
ensure the cable side with the blue terminal is facing upwards and the
cable contacts are facing downwards.
4
Remove the three screws ¸ at the rear of the floppy disk drive holder and
remove the floppy disk drive.
¸
¸
¸
5 Fit the new floppy disk drive and reassemble the unit in the reverse
sequence.
