16.1 Motherboard
SIMATIC IPC647C
150 Operating Instructions, 12/2010, A5E02669337-02

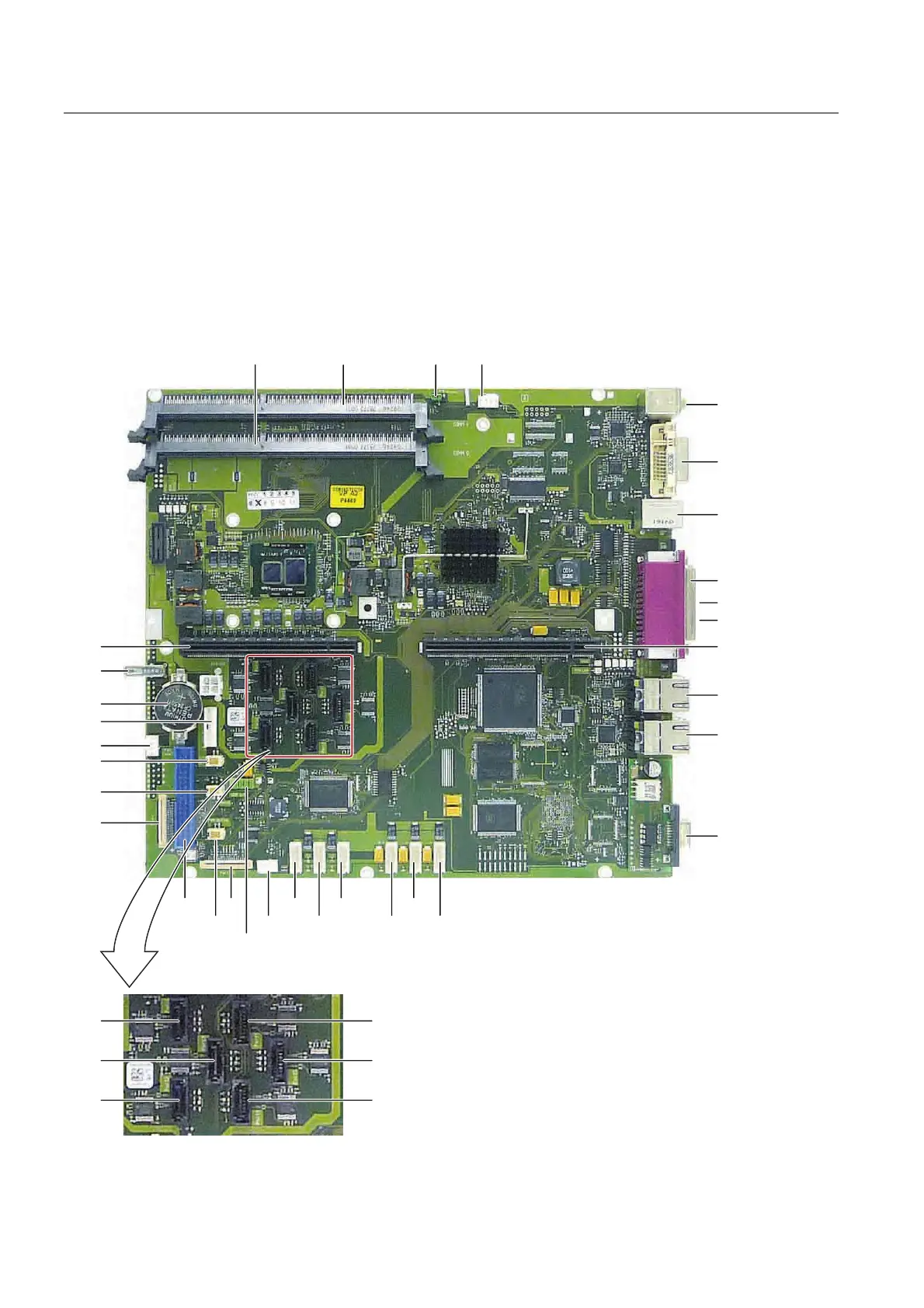

16.1.3 Position of the interfaces on the motherboard
Interfaces
The Rack PC motherboard contains the following interfaces:
● Interfaces for the connection of external devices
● Interfaces for internal components (drives, bus boards etc.)
X48
X19 X20 X132
X302
X21
X130
X41
X40
X45 X27X25 X29
X26 X28 X30
G2
X133
X46
X10
X50
X52
X53
X51
X54
X72
X60
X47
X131
X12
X420
X6
X608
X610
X55
X609 top
X615 bottom
X617 bottom
PROFIBUS /
PROFINET
(optional)
To Next Page
