3.6 Installation
SIMATIC IPC647C
24 Operating Instructions, 12/2010, A5E02669337-02
Power supply

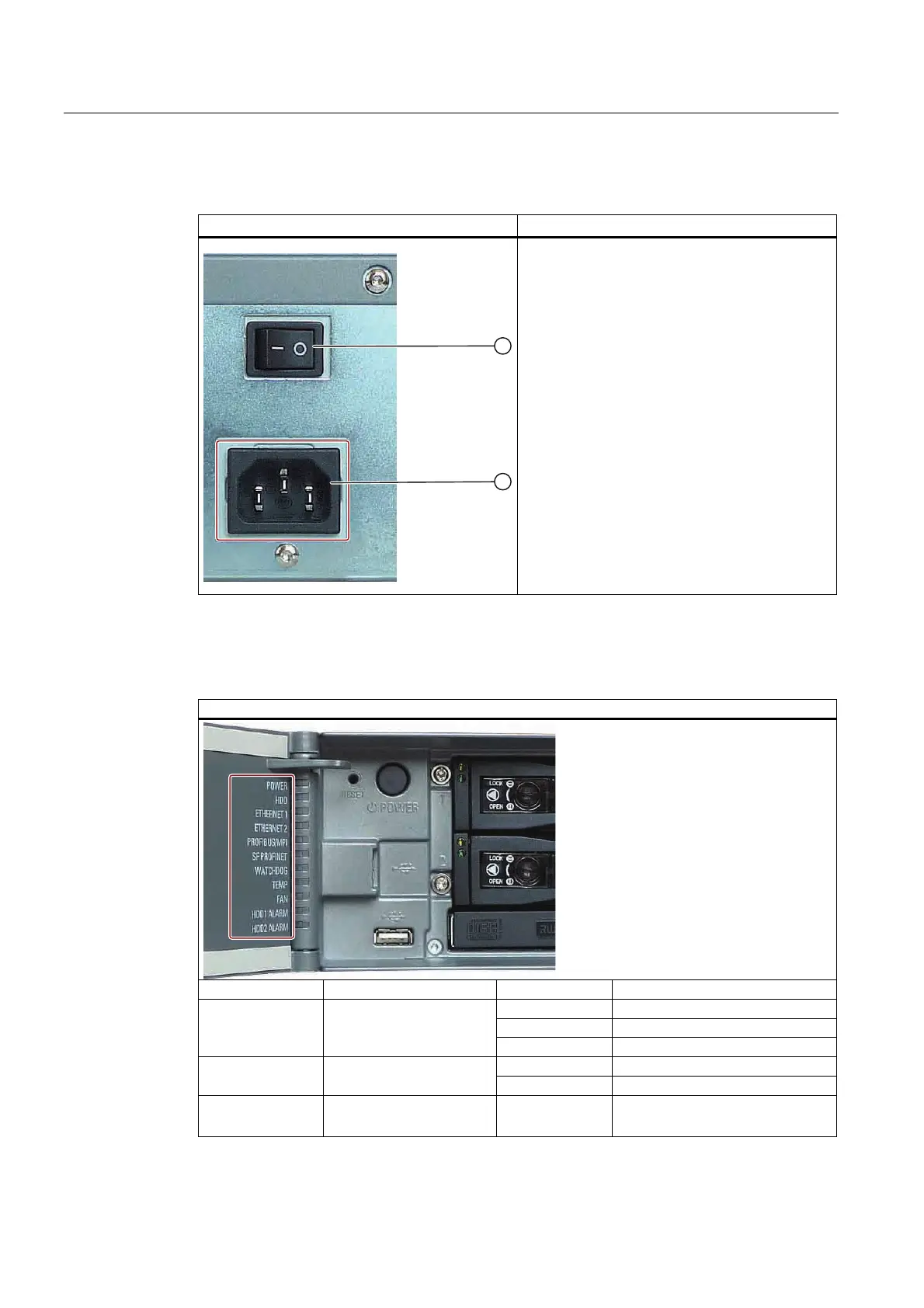

Position of the IEC connector Description
2
1
On/Off switch ①.
Socket ② for IEC connector for the AC power
supply to the device.
100 to 240 V AC is permissible as the input
voltage.
3.6.4 Status displays
Front status displays
Display Meaning LED Description
OFF isolated from mains
YELLOW Standby (hibernating)
POWER PC status display
GREEN PC in operation
OFF no access HDD Display for hard disk
access
GREEN Access
ETHERNET 1 * ETHERNET status
display
OFF
No connection
No data traffic
