Detailed descriptions
16.7 CP 1616 onboard communications processor
SIMATIC IPC647C
214 Operating Instructions, 12/2010, A5E02669337-02
You can find additional, detailed information about the individual loader variants in the
integrated help.
NOTICE
When loading the firmware or commissioning the module, be aware that the CP 1616
onboard takes five MAC addresses (always in direct sequence). The first two are shown in
the BIOS.

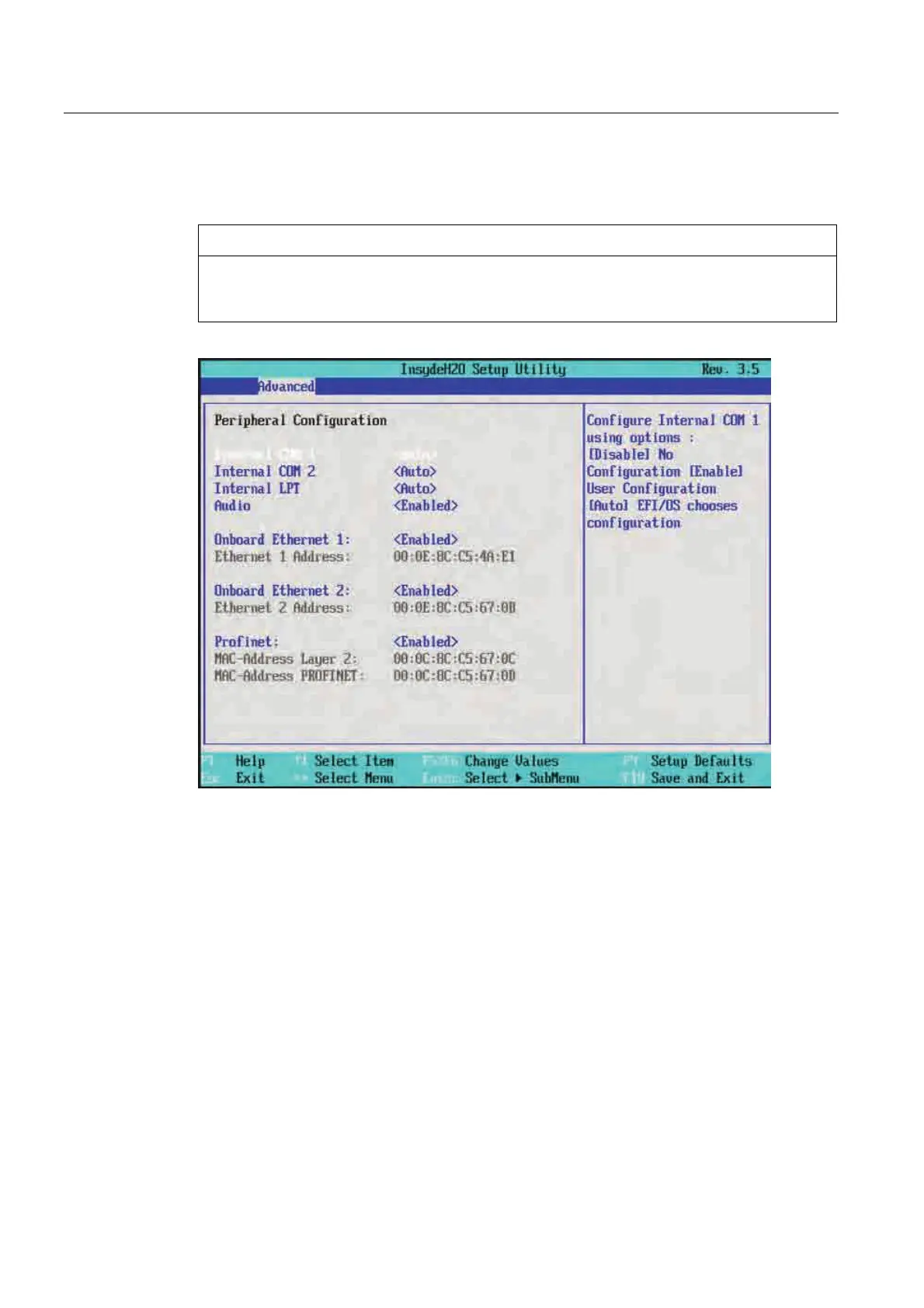

Figure 16-24 Advanced menu > "Peripheral Configuration"
Example
The lower MAC address under "Profinet" is intended for Layer 2 communication, while the
second one is for Ethernet/PROFINET communication.
16.7.3 Further actions in STEP 7/NCM PC
Configuring
Your PC is now ready, although you still have to configure the SIMATIC NET communication
software. The rest of the procedure is described in the "Commissioning PC Stations" manual
(on the Windows PC that also contains STEP 7/NCM PC: Start > Simatic > Documentation >
English > Commissioning PC Stations).
