Expansions and parameter assignment
10.4 Drive racks and storage media
SIMATIC IPC647C
Operating Instructions, 12/2010, A5E02669337-02
83
Insert the HDD carrier again.

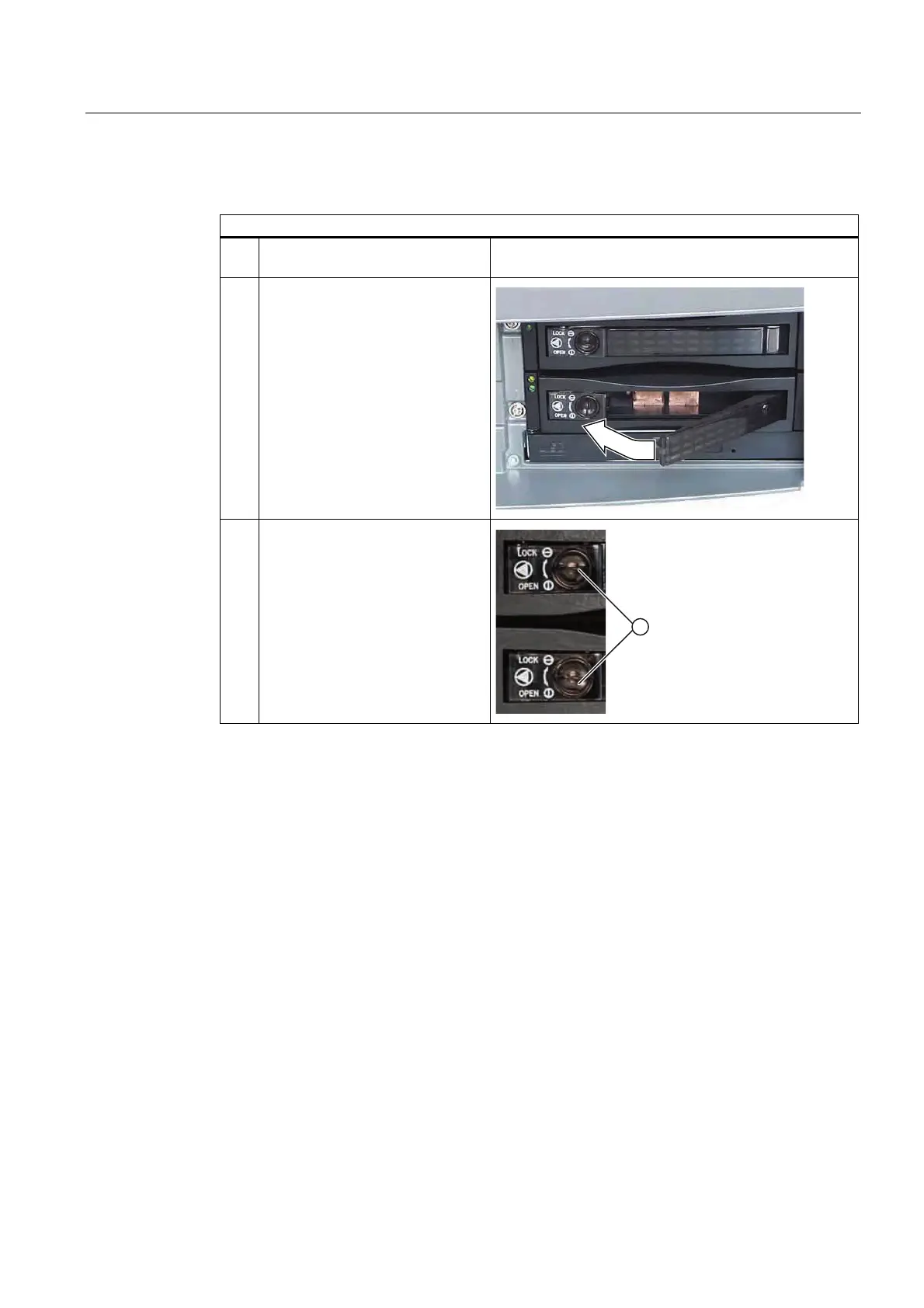

How to insert the HDD carrier again
1. Insert the HDD carrier into the
removable rack.
2. Close the lever of the HDD carrier
again.
3.
Return the locking switch ① to the
"LOCK" position. You can hear
clearly when the HDD carrier locks
into position.
1
10.4.4 Installation and removal of HDDs
HDDs in drive racks
You can install and remove HDDs in the following drive racks:
● Drive rack for a removable rack Installation in the hard disk carrier
● Vibration damped drive rack: Direct mounting in the drive rack
Requirement for the removing or installing the HDD
Remove the drive rack from the device as described in the section 4Installation and removal
of drive racks (Page
280).
