Expansions and parameter assignment
10.3 Installation and removal of expansion modules
SIMATIC IPC647C
Operating Instructions, 12/2010, A5E02669337-02
73

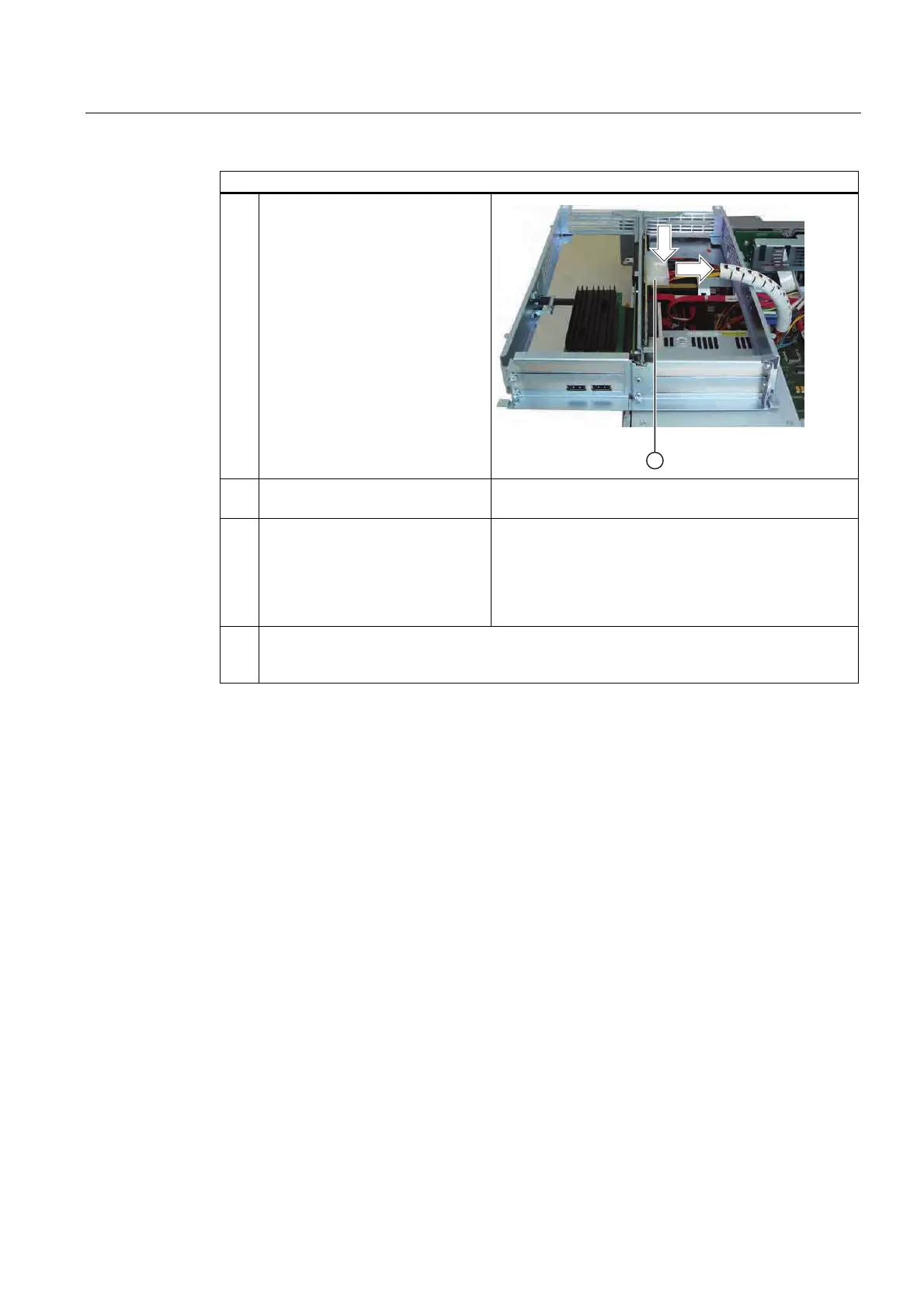

How to remove the bus frame
5.
Press release ① of the power plug
②.
1
1
2
6. Pull out the power plug from the
bottom.
7. Place the bus frame on one of its
sides on a level table surface. Set
the bus frame on the table surface
in such a way that the module
which you want to install or remove
is on the top.
The bus frame is removed. The four feet on the long side of the bus frame serve as mounting
aid and make for lateral mounting. You may have to support the bus frame with your hand to
prevent it from tipping.
Installing the bus frame
Perform the actions described above in reverse order to install the bus frame.
10.3.3 Installation and removal of expansion modules in the bus frame
Introduction
Two slots are available for installing an expansion module for the following bus systems:
● PCI
● PCIe x8 (for I/O expansion modules)
● PCIe x16 (for I/O expansion modules or graphics cards)
Preparation
You have removed the bus frame. For details of how to do this, see section 4Installation and
removal of the bus frame (Page
271)
