Description
3.6 Installation
SIMATIC IPC647C
20 Operating Instructions, 12/2010, A5E02669337-02
3.6 Installation
3.6.1 External design

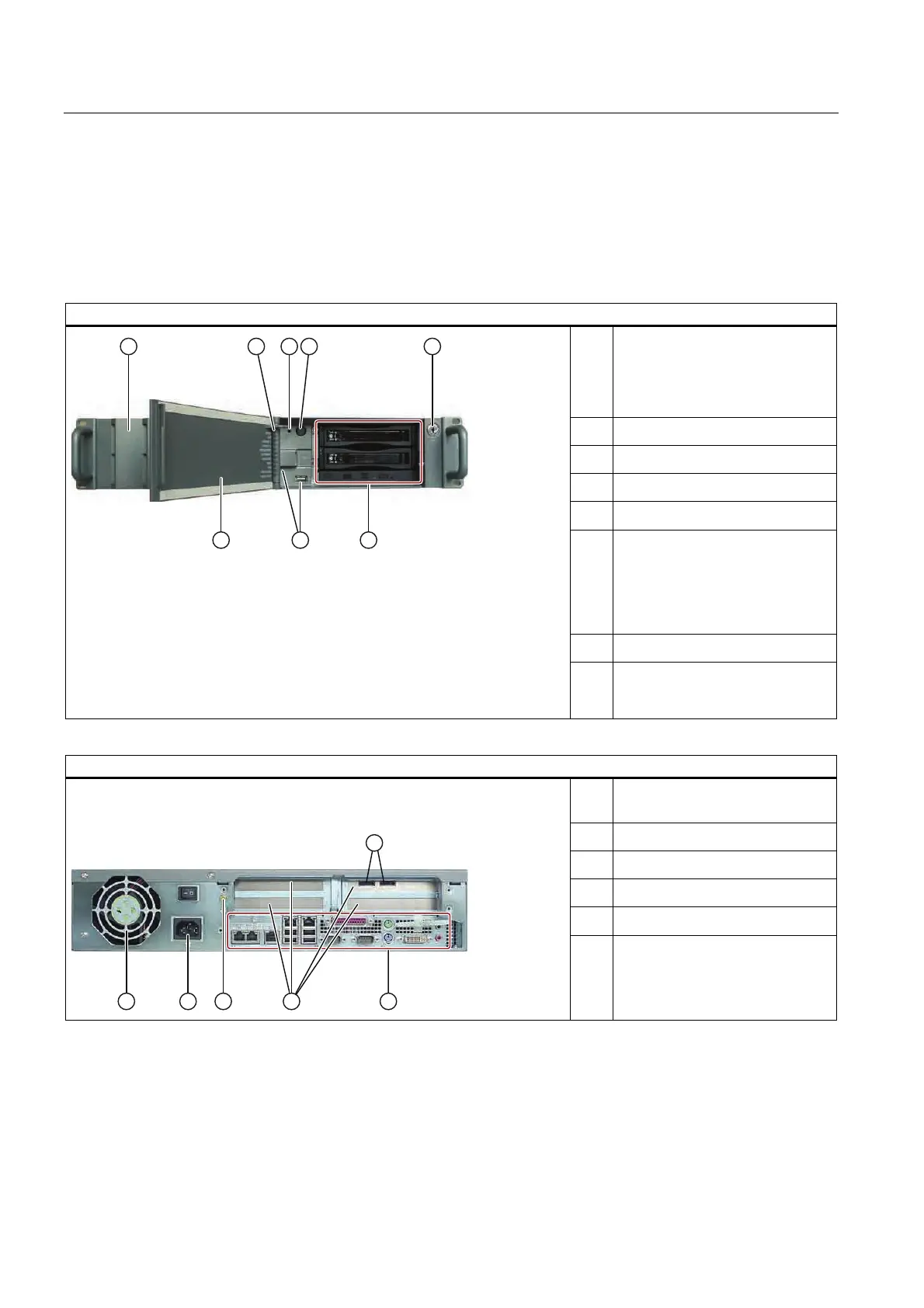

Front view of the device (example)
①
Front panel with vent openings
(filter mat and fan behind the front
panel). Check the filter mat
regularly for soiling and, if
appropriate, replace it.
②
Status displays
③
Reset button
④
On/off button
⑤
Lock
⑥
Option of installing:
 DVD burner drive (slimline)
 Hard disk removable rack
 Hard disk in vibration damped
drive rack
⑦
USB ports
1 2 3 4 5
8 7 6
⑧
Lockable front door for access
security. Keep the front door
closed during normal operation.
Rear view of the device (example)
①
DP connection of graphics card
②
Connection elements
③
Expansion slots
④
Equipotential bonding connection
⑤
Power supply connector
6 45 23
1
⑥
Fan / power supply unit
