Expansions and parameter assignment
10.4 Drive racks and storage media
SIMATIC IPC647C
82 Operating Instructions, 12/2010, A5E02669337-02
10.4.3 Removing and inserting the HDD carrier
A HDD carrier is located in the drive rack for removable racks. You can use the HDD carrier
to insert and remove drives and storage media.

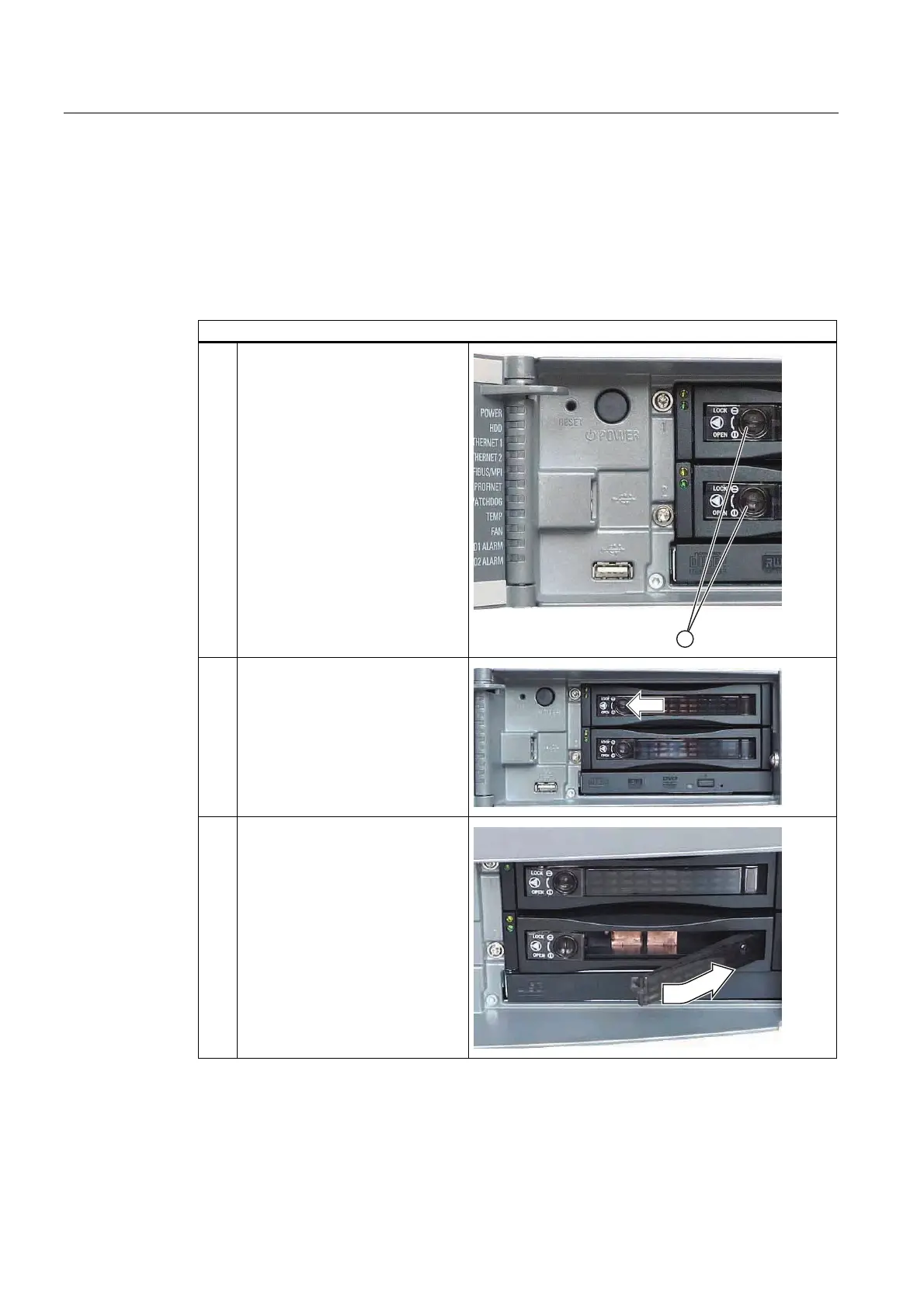

Removing the HDD carrier
How to remove the HDD carrier
1.
Turn the locking switch ① to the
"OPEN" position.
1
2. Press on the release next to the
locking switch in the direction of the
arrow to lower the lever on the
HDD carrier.
3. Pull the lever out until you feel the
HDD carrier release and pull it out
completely.
