SIMATIC IPC647C
Operating Instructions, 12/2010, A5E02669337-02
31
Installing
5
5.1 Installing the device
Optional installation locations
The device can be installed horizontally in control desks, in switch cabinets and in 19-inch
rack systems.
Optional mounting methods
WARNING
Function test while installing the device in machines or systems
Following the results of a risk analysis, additional protection equipment on the machine or
the system is necessary to avoid endangering persons. With this, especially the
programming, configuration and wiring of the inserted peripherals have to be executed, in
accordance with the safety performance (SIL, PL or Cat.) identified by the necessary risk
analysis.
The intended use of the device has to be ensured.
The proper use of the device has to be verified with a function test on the system. This test
can detect programming, configuration and wiring errors. The test results have to be
documented and if necessary inserted into the relevant inputs.
You can mount the device as follows:
● Mounting on cabinet brackets
● Mounting on device bases
● Mounting on telescopic rails
When telescopic rails are used for mounting, the device can be withdrawn fully from the
cabinet or rack.
For more detailed information on telescopic rails, refer to the sections
2Technical data of
the telescopic rails (Page
2142) and 2Dimensional drawing for the use of telescopic rails
(Page
2145).
1

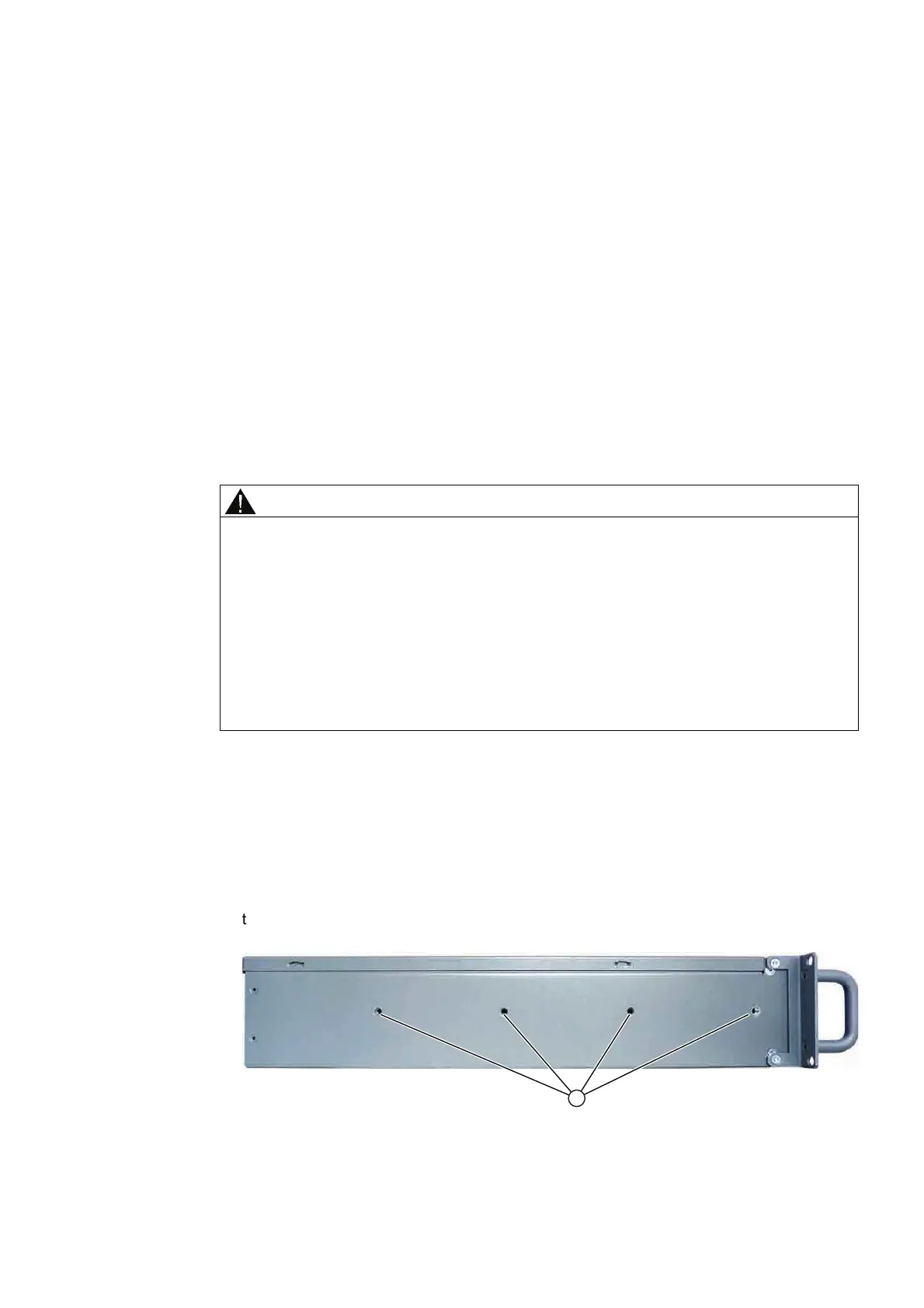

Figure 5-1 Position of the mounting holes ①
