Detailed descriptions
16.2 Bus boards
SIMATIC IPC647C
Operating Instructions, 12/2010, A5E02669337-02
167
16.2 Bus boards
16.2.1 Bus board models
Riser cards are used as bus boards for SIMATIC IPC647C. These riser cards are used to a
create spatial offset for connections between the motherboard and the expansion modules.
The riser card is used as an elbow. This positions the bus board vertical and expansion
modules parallel to the motherboard. The edge-socket connectors for expansion modules
are located on the bus board. The riser card also provides power to the motherboard.
There are two types of bus boards for SIMATIC IPC647C:
48. Main bus board (optional)
– 2 x PCI and 1 x PCIe x16 (angled)
Bus board with edge-socket connectors for two PCI expansion modules and an angled
edge-socket connector for the PCIe x16 Piggyback.
– 1 x PCI and 1 x PCIe x4 and 1 x PCIe x16 (angled)
Bus board with edge-socket connectors for one PCI expansion module, one PCI x4
expansion module and an angled edge-socket connector for the PCIe x16 Piggyback.
49. Piggyback
– Bus board with diverted connection for a PCIe x16 expansion module.

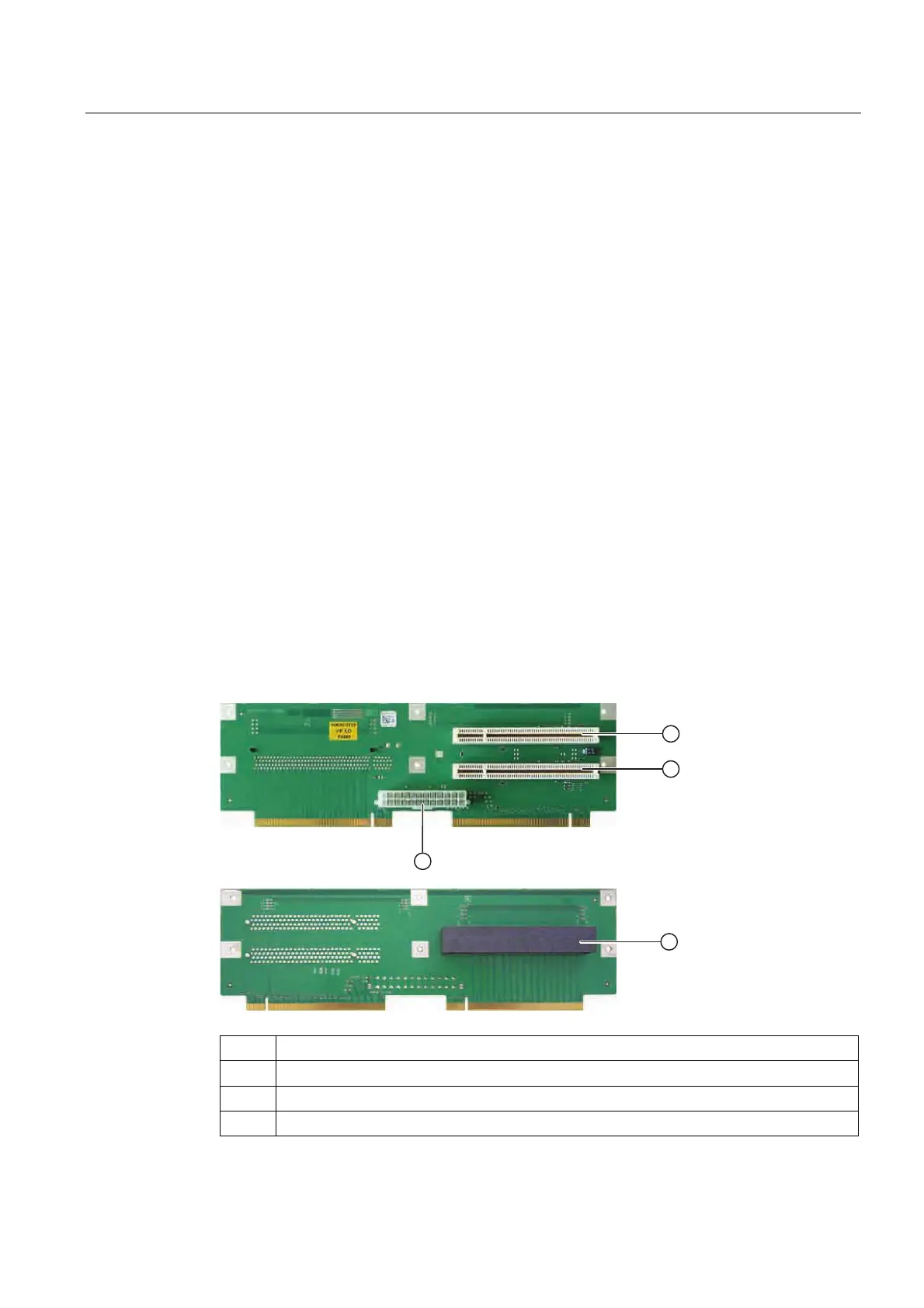

Motherboard: 2 x PCI and 1 x PCIe x16 (angled)
1
2
3
4
①
PCI edge-socket connector
②
PCI edge-socket connector
③
BTX power connector
④
PCIe x16 edge-socket connector (angled) for piggyback
