Synchronization modules
12.3 Selecting fiber-optic cables
CPU 410-5H Process Automation
System Manual, 09/2014, A5E31622160-AB
213
Cabling
Components required
Specification
A cable junction is required
between the indoor and out-
door area
see Figure 12-2
• One distribution/junction box
per branch
Installation and patch cables are
connected via the distribution box.
Either ST or SC plug-in connec-
tions can be used, for example
Check the cross-over installation
when you wire the CPUs.
• Connector type ST or SC, for example, to match
other components

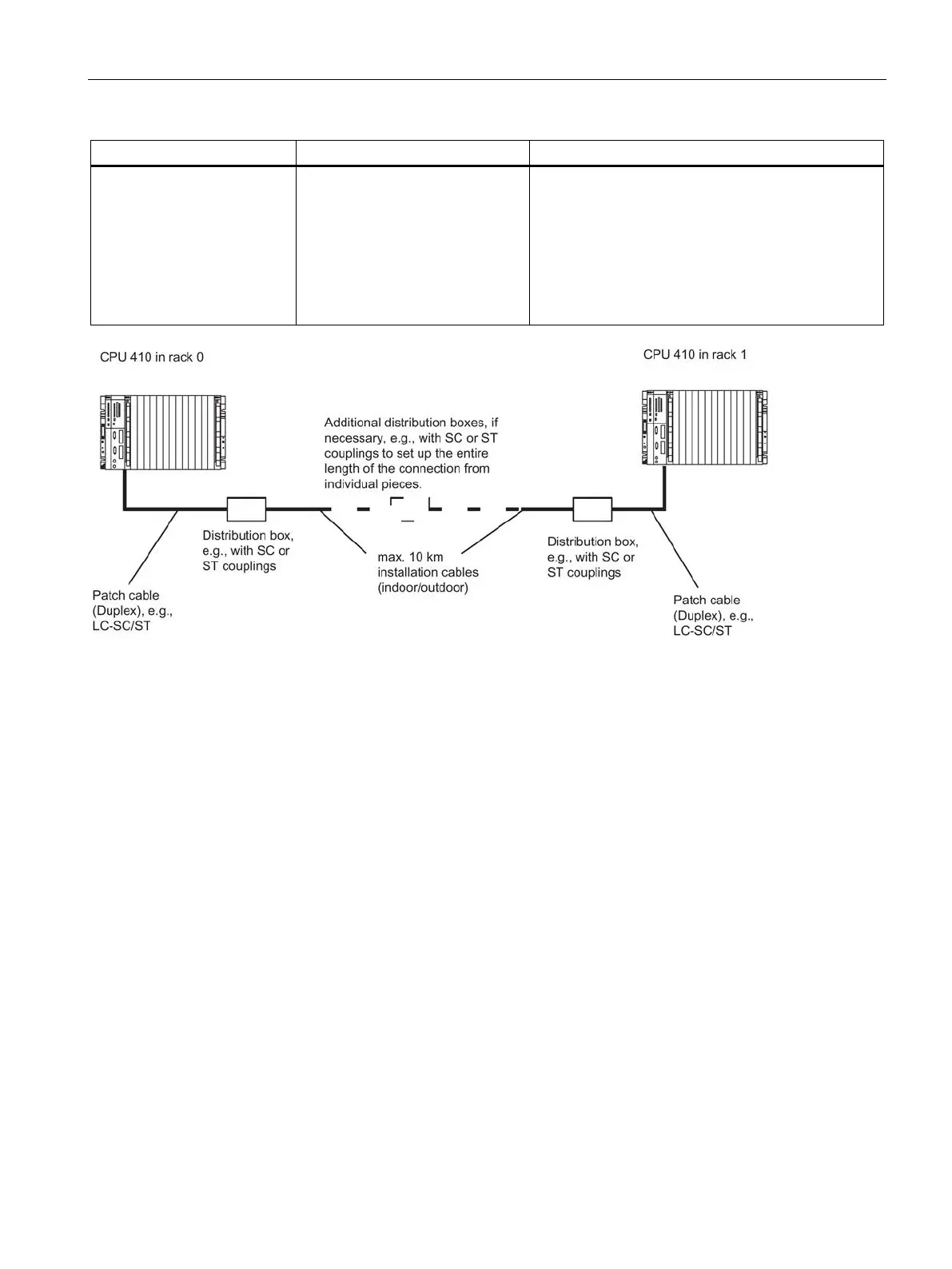

Figure 12-2 Fiber-optic cables, installation using distribution boxes
