Siemens SIMATIC PCS 7 CPU 410-5H User Manual

Connection examples for redundant I/Os
C.26 SM 332; AO 4 x 0/4...20 mA [EEx ib], 6ES7 332–5RD00–0AB0
CPU 410-5H Process Automation
362 System Manual, 09/2014, A5E31622160-AB
C.26
SM 332; AO 4 x 0/4...20 mA [EEx ib], 6ES7 332–5RD00–0AB0

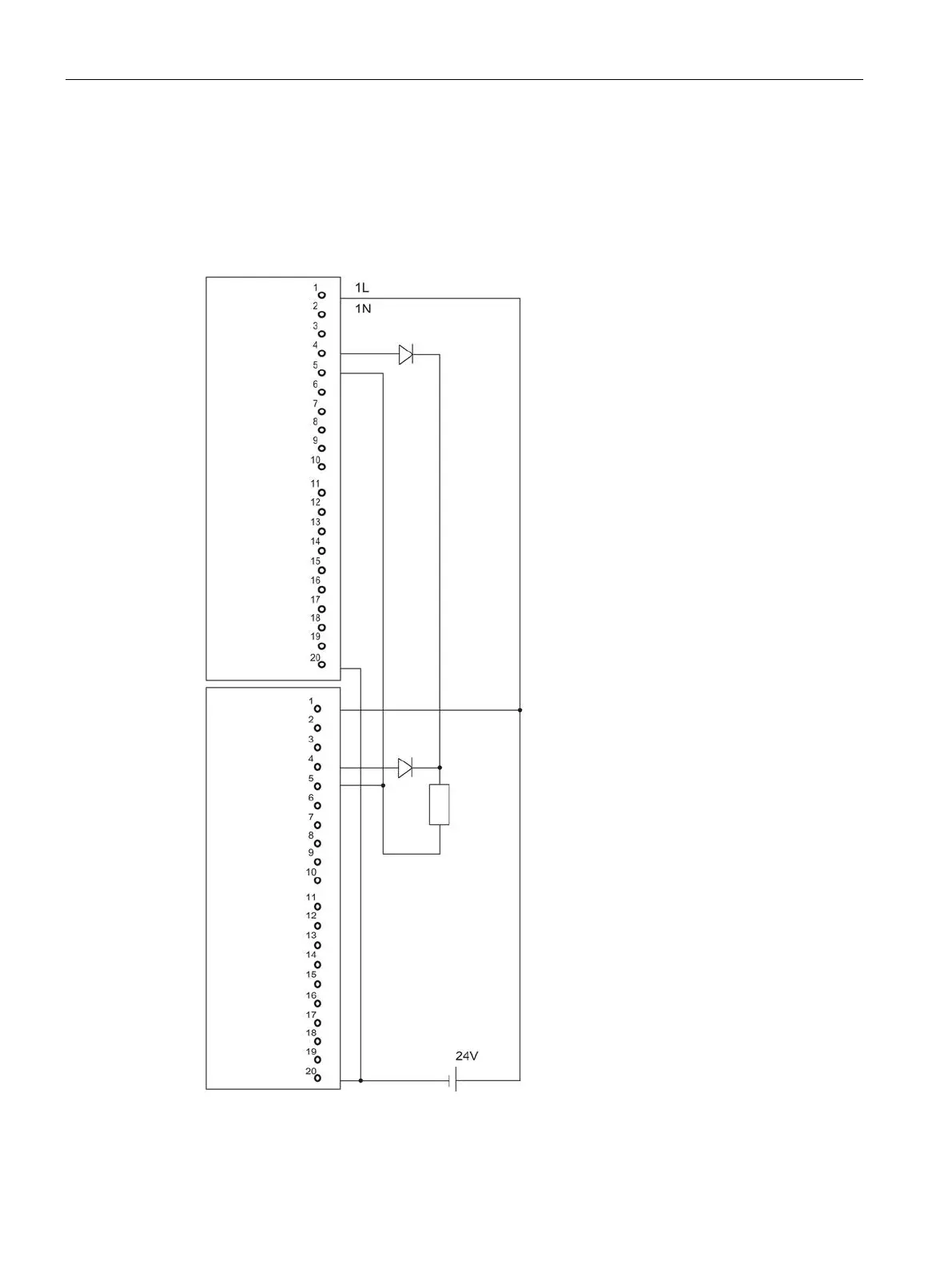

The diagram below shows the connection of an actuator to two SM 332; AO 4 x 0/4...20 mA
[EEx ib]. The actuator is connected to channel 0.
Suitable diodes are, for example, types from the series 1N4003 ... 1N4007 or any other
diode with U
_r
>=200 V and I_
F
>= 1 A
Figure C-24 Example of an interconnection with SM 332; AO 4 x 0/4...20 mA [EEx ib]
