Connection examples for redundant I/Os
C.10 SM 321; DI 16 x DC 24V, 6ES7 321–7BH01–0AB0
CPU 410-5H Process Automation
346 System Manual, 09/2014, A5E31622160-AB
C.10
SM 321; DI 16 x DC 24V, 6ES7 321–7BH01–0AB0

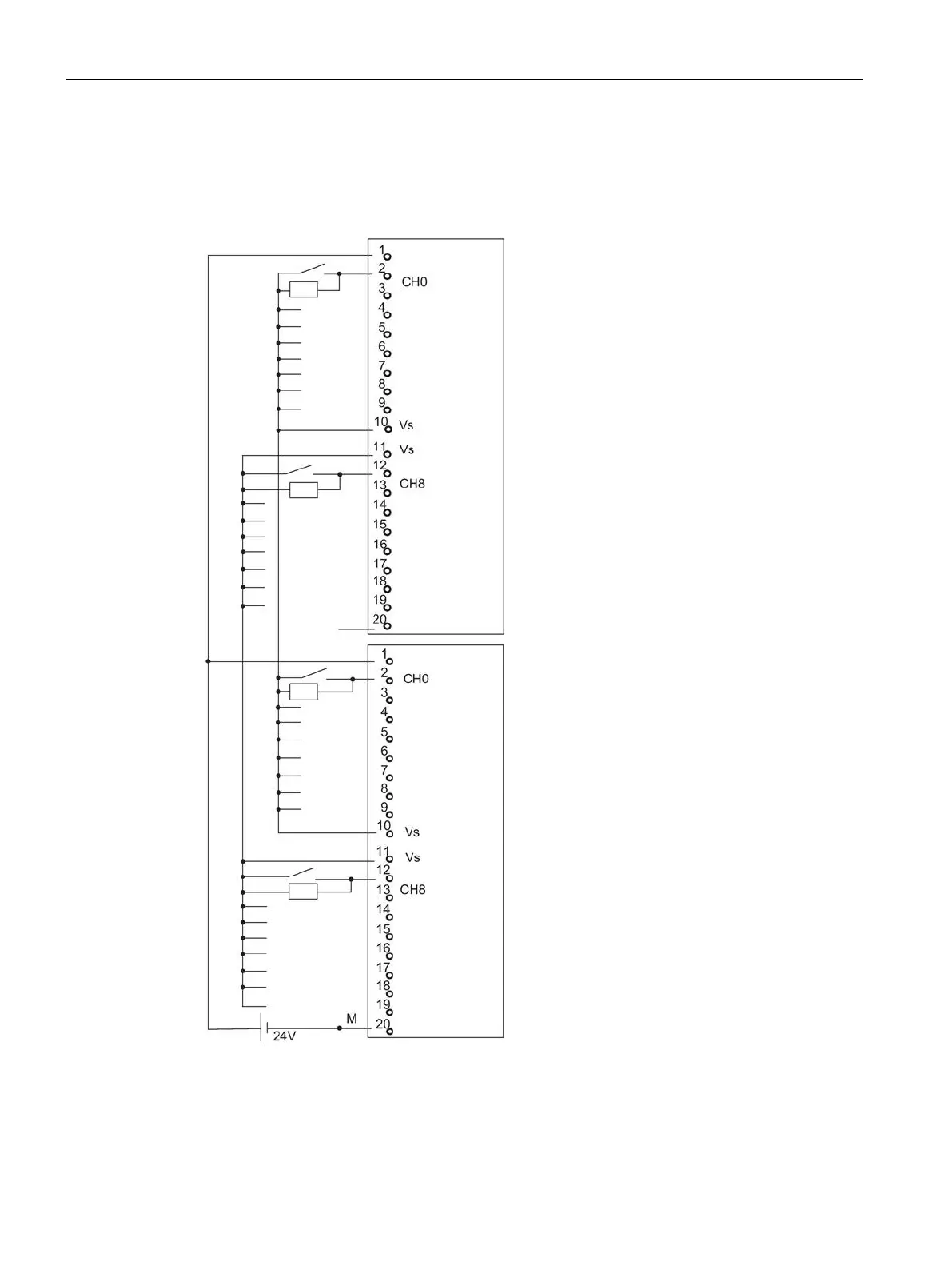

The diagram below shows the connection of two redundant encoder pairs to two SM 321;
DI 16 x DC 24V. The encoders are connected to channels 0 and 8.
Figure C-8 Example of an interconnection with SM 321; DI 16 x DC 24V
