Connection examples for redundant I/Os
C.12 SM 326; DI 8 x NAMUR, 6ES7 326–1RF00–0AB0
CPU 410-5H Process Automation
348 System Manual, 09/2014, A5E31622160-AB
C.12
SM 326; DI 8 x NAMUR, 6ES7 326–1RF00–0AB0

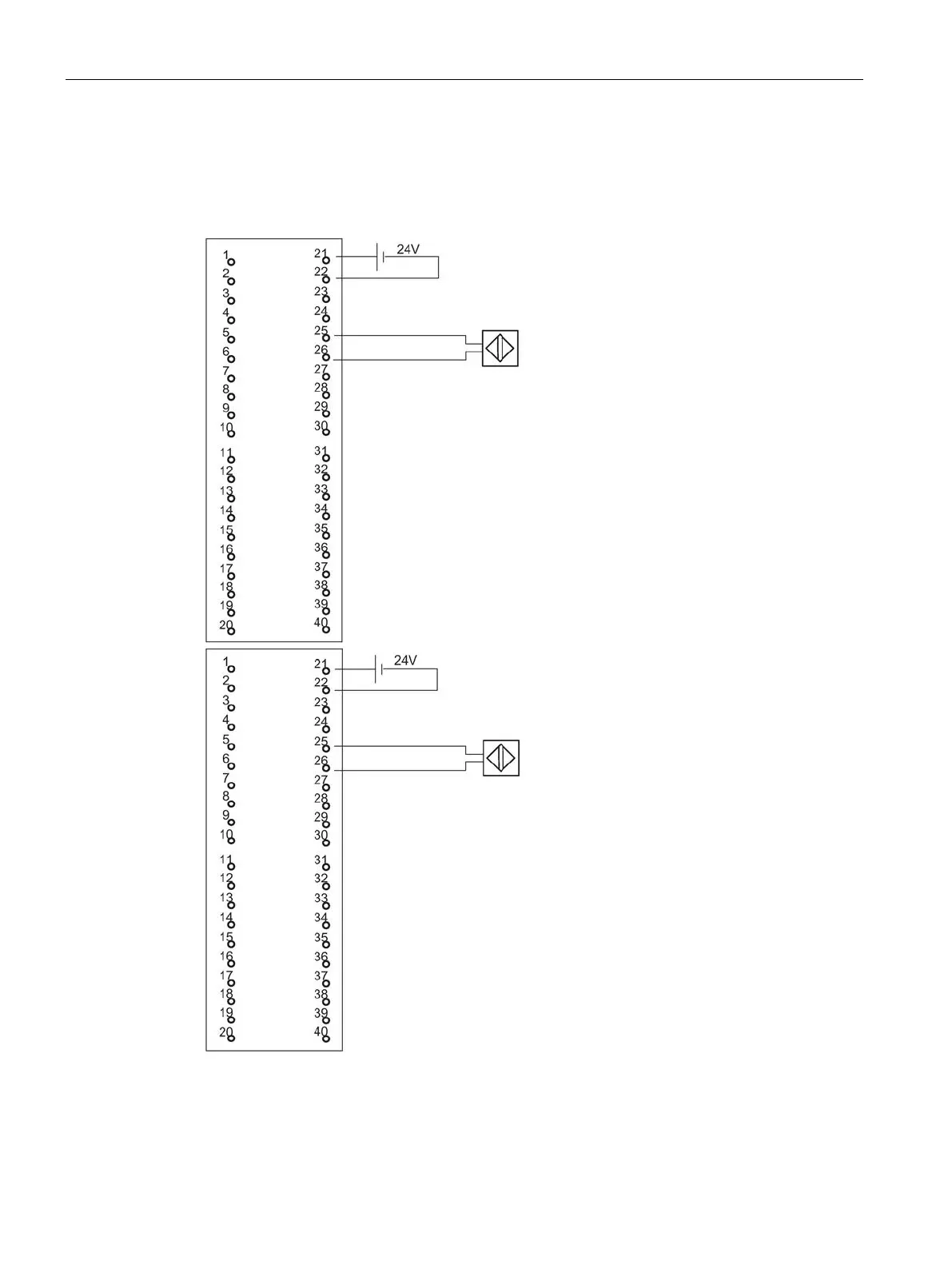

The diagram below shows the connection of two redundant encoders to two redundant
SM 326; DI 8 x NAMUR . The encoders are connected to channel 4.
Figure C-10 Example of an interconnection with SM 326; DI 8 x NAMUR
