Connection examples for redundant I/Os
C.24 SM 322; DO 16 x DC 24 V/0.5 A, 6ES7 322–8BH01–0AB0
CPU 410-5H Process Automation
360 System Manual, 09/2014, A5E31622160-AB
C.24
SM 322; DO 16 x DC 24 V/0.5 A, 6ES7 322–8BH01–0AB0

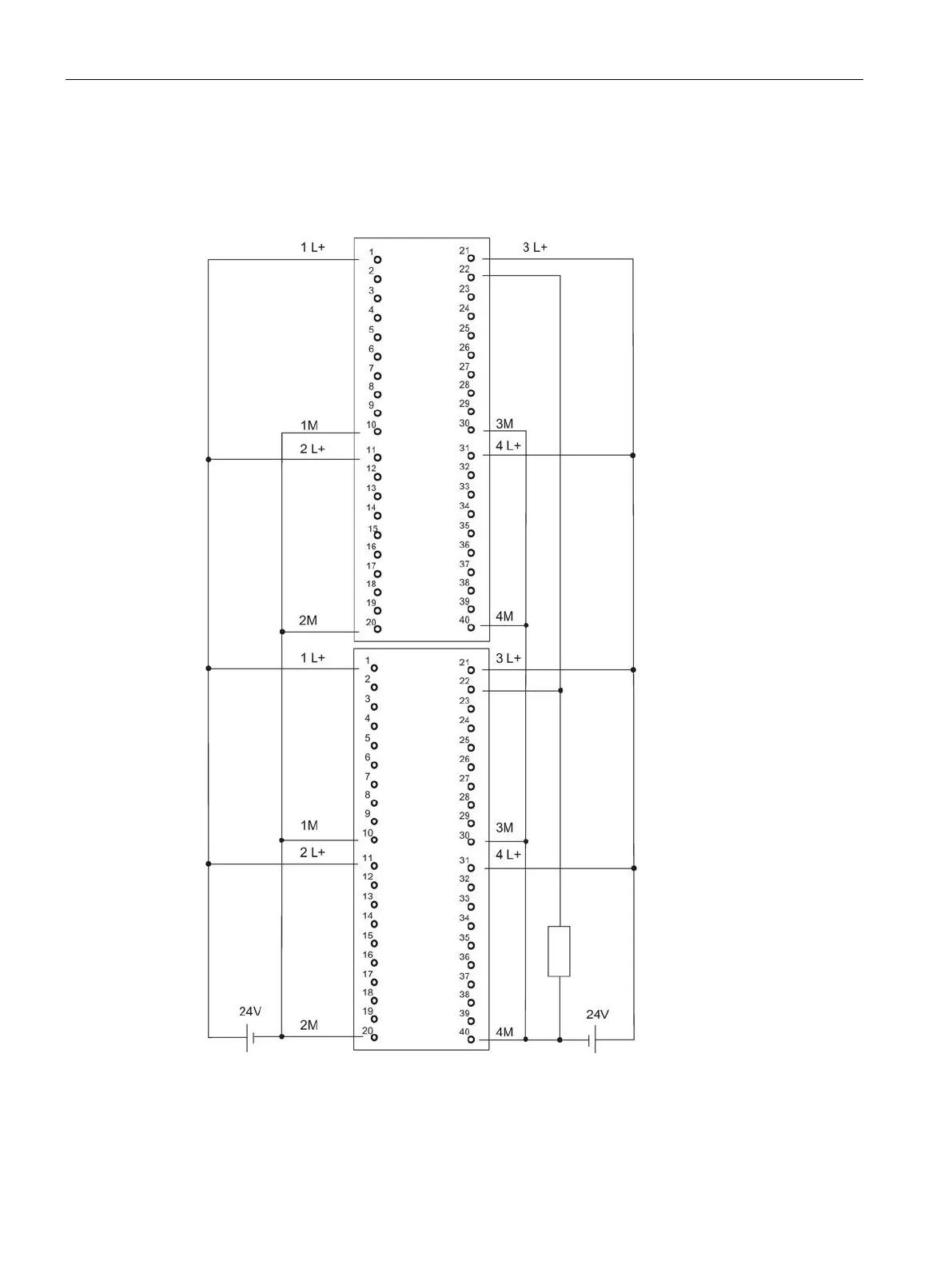

The diagram below shows the connection of an actuator to two redundant SM 322;
DO 16 x DC 24 V/0.5 A. The actuator is connected to channel 8.
Figure C-22 Example of an interconnection with SM 322; DO 16 x DC 24 V/0.5 A
