Connection examples for redundant I/Os
C.4 8-channel HART analog output MTA
CPU 410-5H Process Automation
340 System Manual, 09/2014, A5E31622160-AB
C.4
8-channel HART analog output MTA
The following figure shows the connection of an encoder to two redundant SM 322;
AI 8 x 0/4...20mA HART via an 8-channel HART analog output MTA.

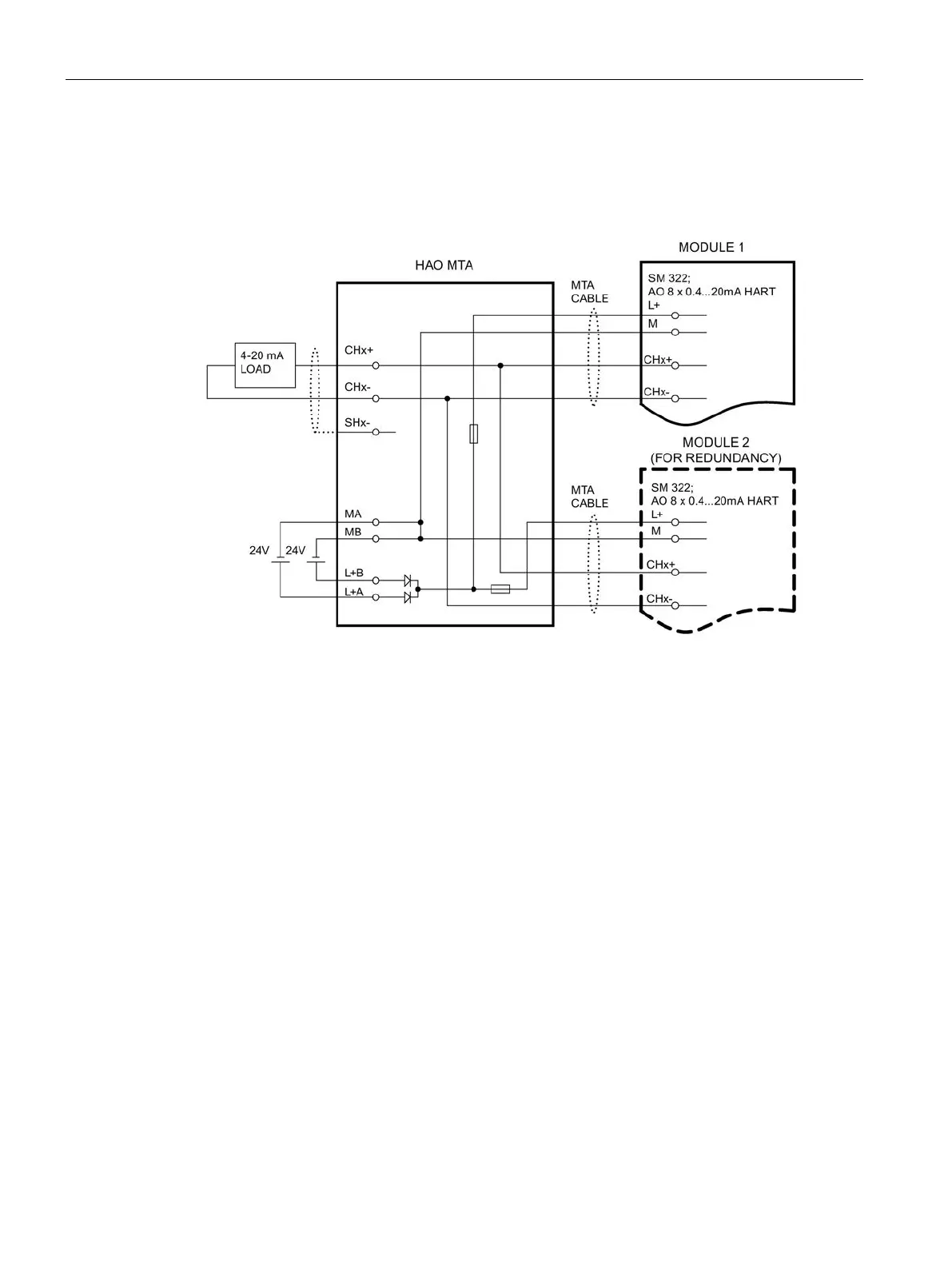

Figure C-2 Interconnection example for SM 322, Al 8 x 0/4...20mA HART
