CPU 410-5H Process Automation
System Manual, 09/2014, A5E31622160-AB
35
Structure of the CPU 410-5H
3
3.1
Operator controls and display elements on the CPU 410-5H
Arrangement of the control and display elements on CPU 410-5H

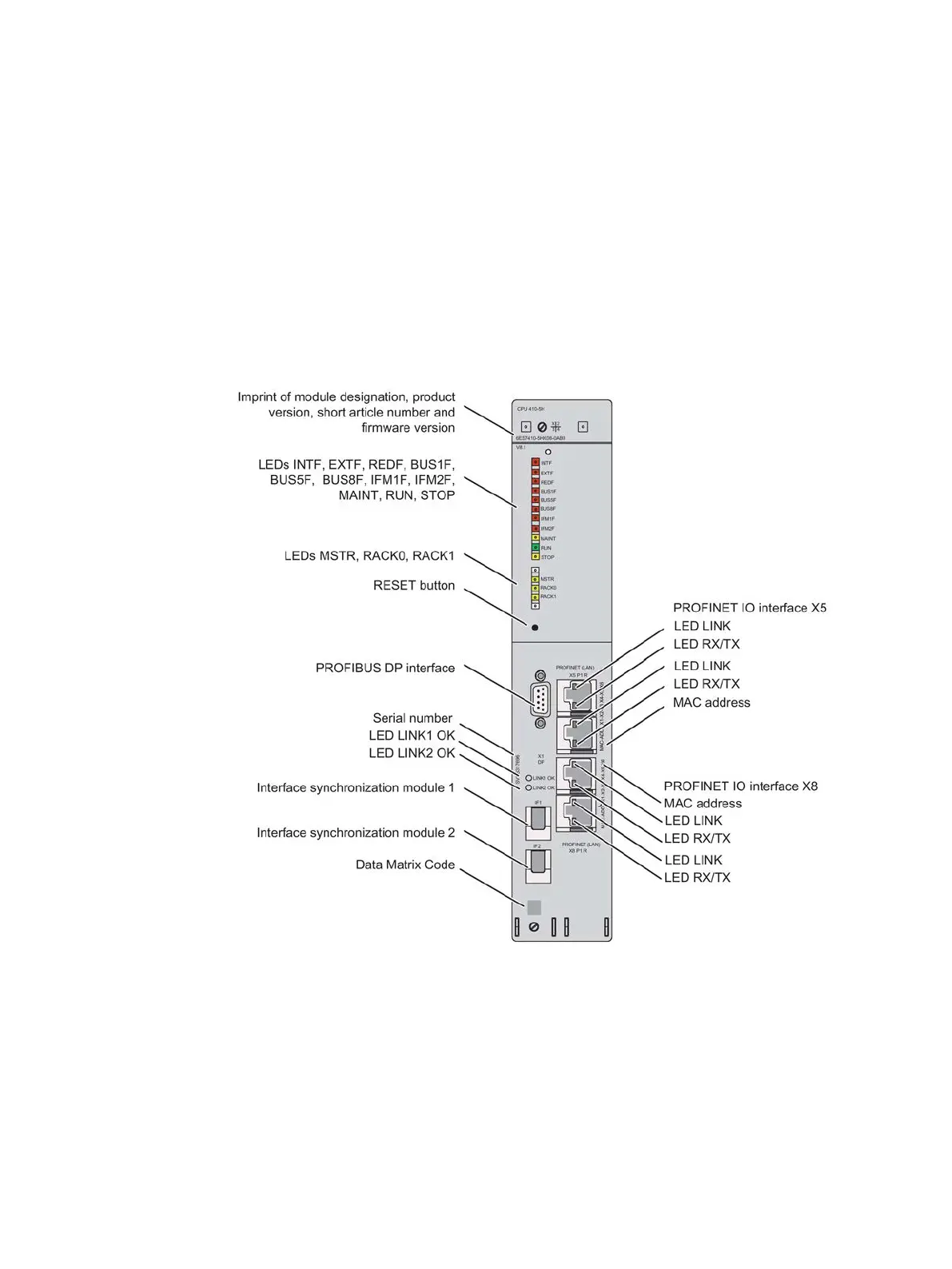

Figure 3-1 Arrangement of the control and display elements on CPU 410-5H
