15.6 Communication services
CPU 410-5H Process Automation
System Manual, 09/2014, A5E31622160-AB
247
S7 routing gateways: PROFINET IO - DP - PROFINET IO
The following figure shows the access from PROFINET IO to PROFIBUS to PROFINET IO.
CPU 1 is the router between subnet 1 and subnet 2; CPU 2 is the router between subnet 2
and subnet 3.

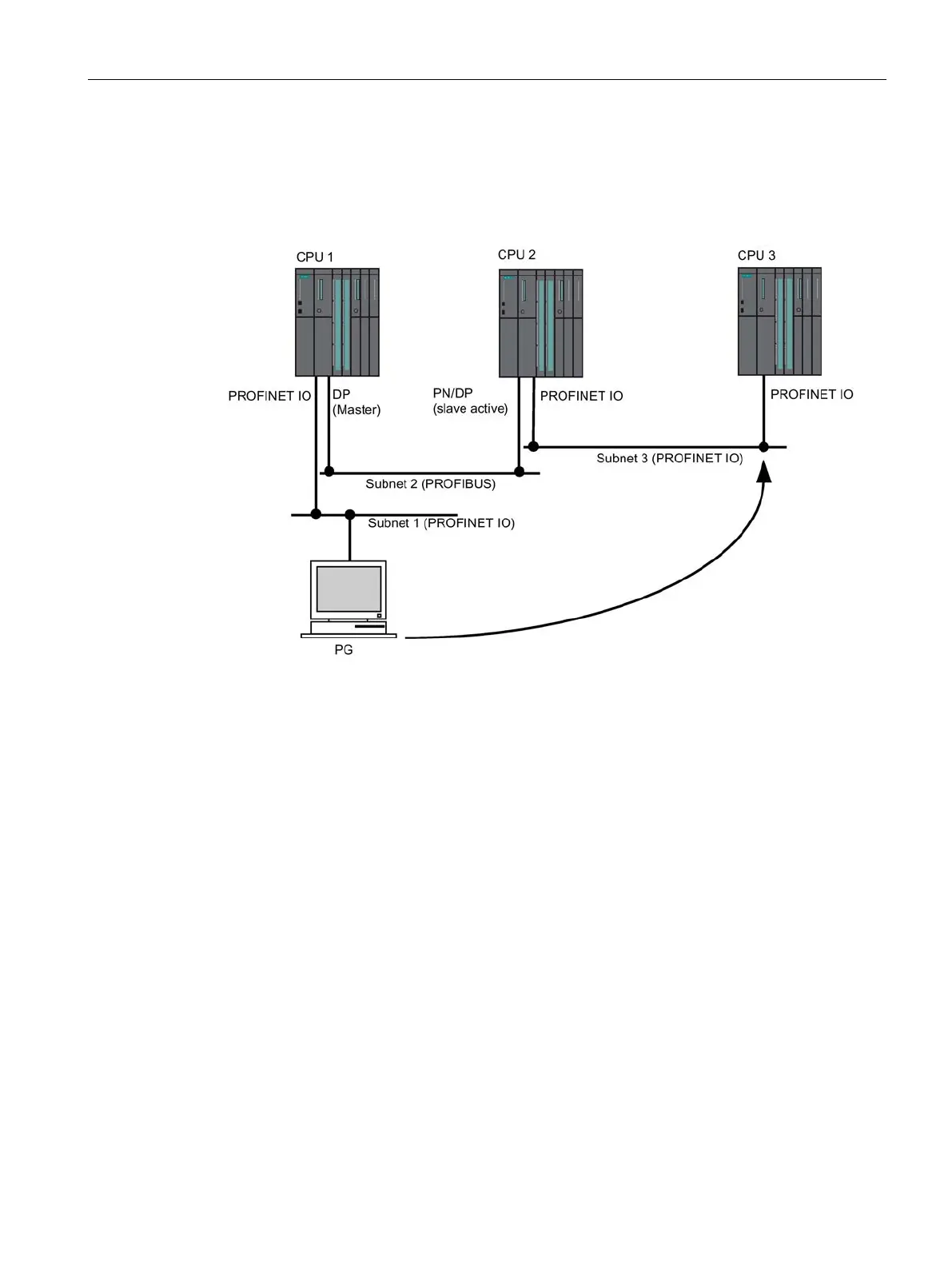

Figure 15-3 S7 routing gateways: PROFINET IO - DP - PROFINET IO
