4.6 System and media redundancy at the PROFINET IO interface
CPU 410-5H Process Automation
72 System Manual, 09/2014, A5E31622160-AB
Station numbers
The IO devices can be configured as one-sided or redundant. The station numbers must be
unique across both PROFINET IO interfaces and between 1 and 256.
PN/IO with system redundancy
The figure below shows the system-redundant connection of three IO devices using one
switch. Two additional IO devices are also connected in system redundancy.

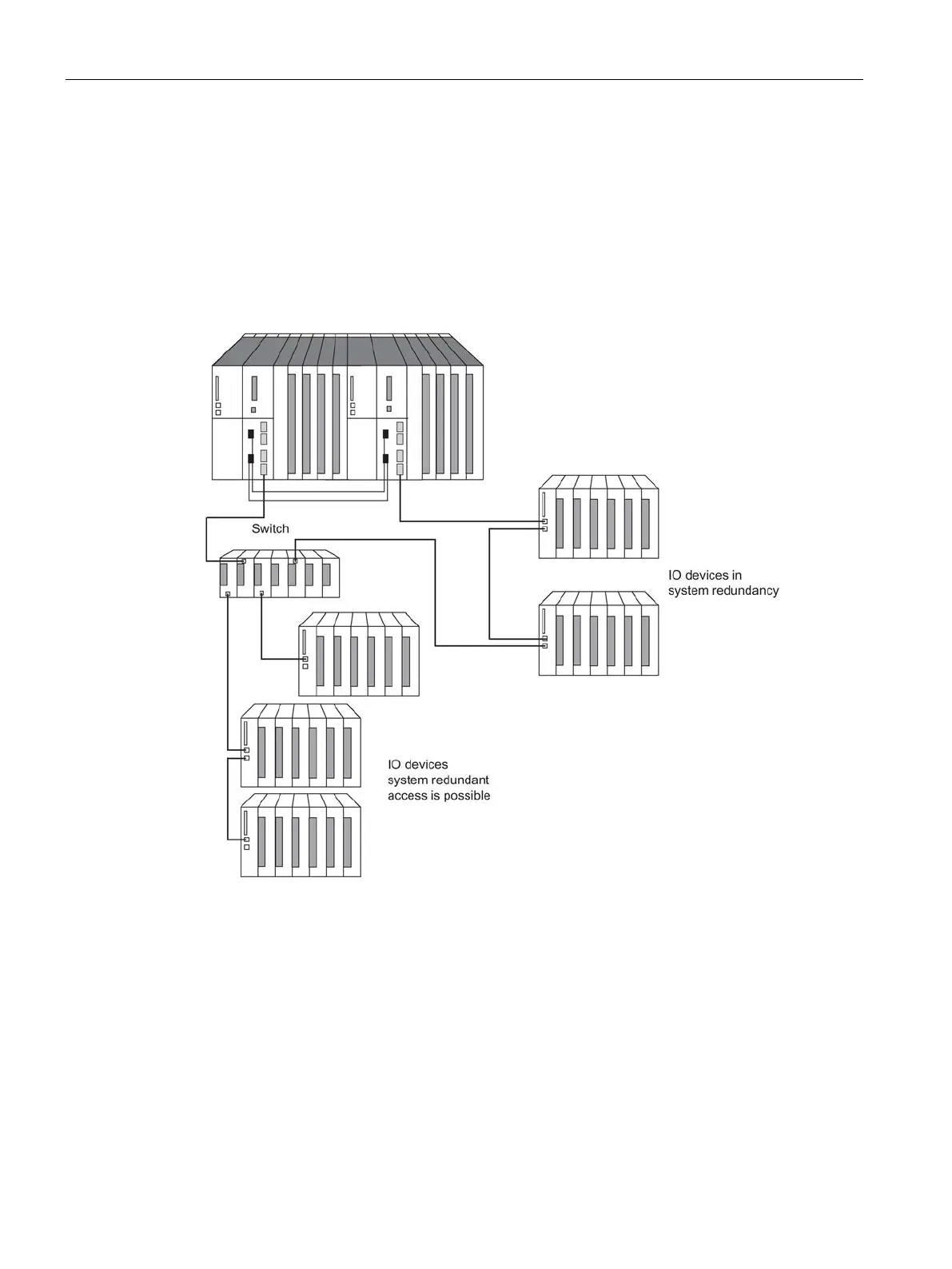

Figure 4-13 PN/IO with system redundancy
