Supplementary information
15.14 Other options for connecting redundant I/Os
CPU 410-5H Process Automation
294 System Manual, 09/2014, A5E31622160-AB
15.14
Other options for connecting redundant I/Os
Redundant I/O at user level
If you cannot use the redundant I/O supported by the system (Chapter Connecting
redundant I/O to the PROFIBUS DP interface (Page 76)), for example, because the module
to be used redundantly is not in the list of supported components, you can also implement
the use of redundant I/O at the user level.
Configurations
The following redundant I/O configurations are supported:
1. Redundant configuration with one-sided central and/or distributed I/O.
For this purpose, one signal module each is inserted into the CPU 0 and CPU 1
subsystems.
2. Redundant configuration with switched I/O
One signal module each is inserted into two ET 200M distributed I/O devices with active
backplane bus.

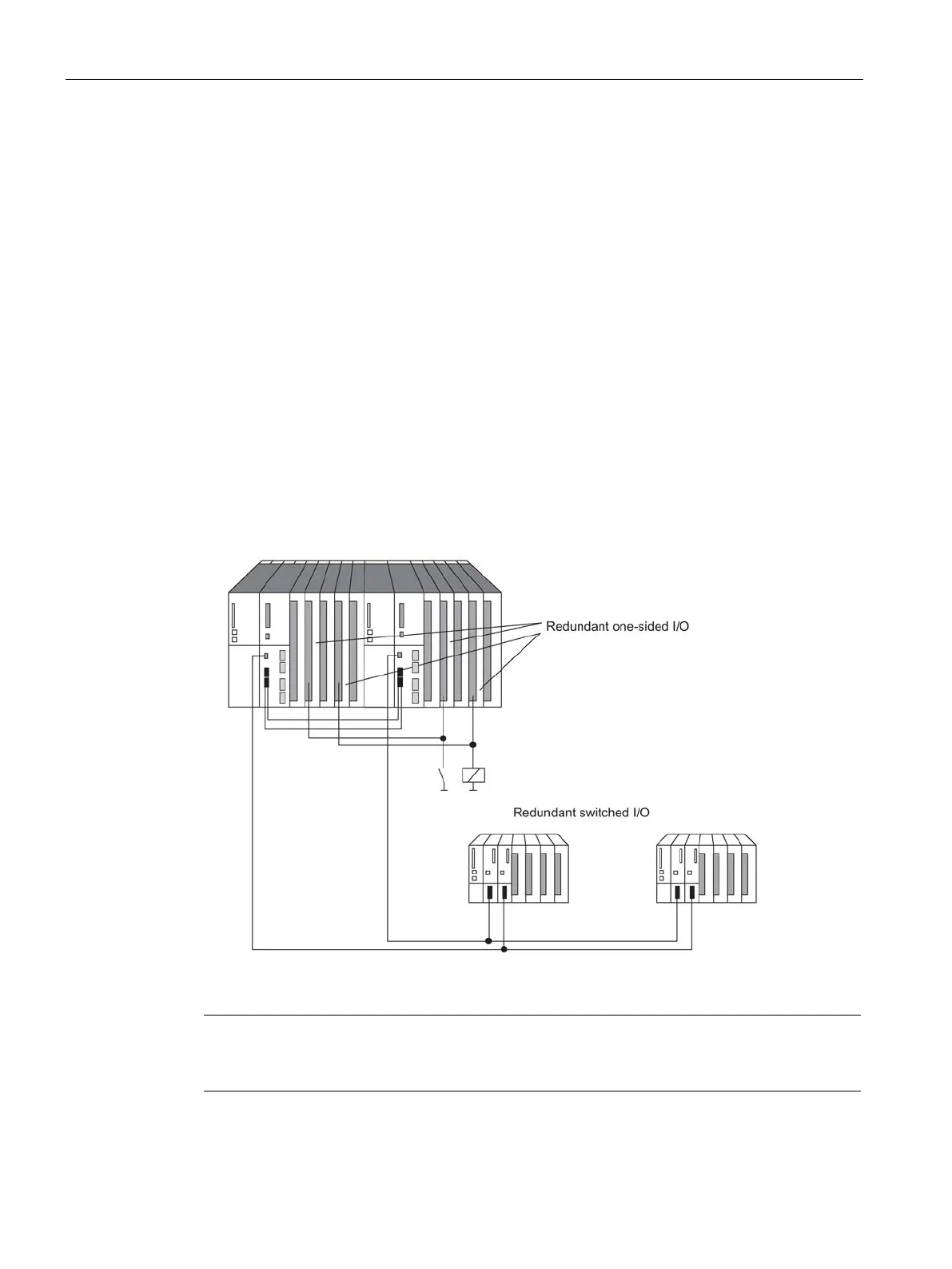

Figure 15-25 Redundant one-sided and switched I/O
Note
When using redundant I/O, you may need to add time to the calculated monitoring times; see
Chapter
Determining the monitoring times (Page 126)
