Connection examples for redundant I/Os
C.32 SM 331; AI 8 x 16 Bit; 6ES7 331–7NF10–0AB0
CPU 410-5H Process Automation
368 System Manual, 09/2014, A5E31622160-AB
C.32
SM 331; AI 8 x 16 Bit; 6ES7 331–7NF10–0AB0
The figure below shows the connection of a transmitter to two redundant SM 331;
AI 8 x 16 Bit. The transmitter is connected to channel 0 and 3 respectively.

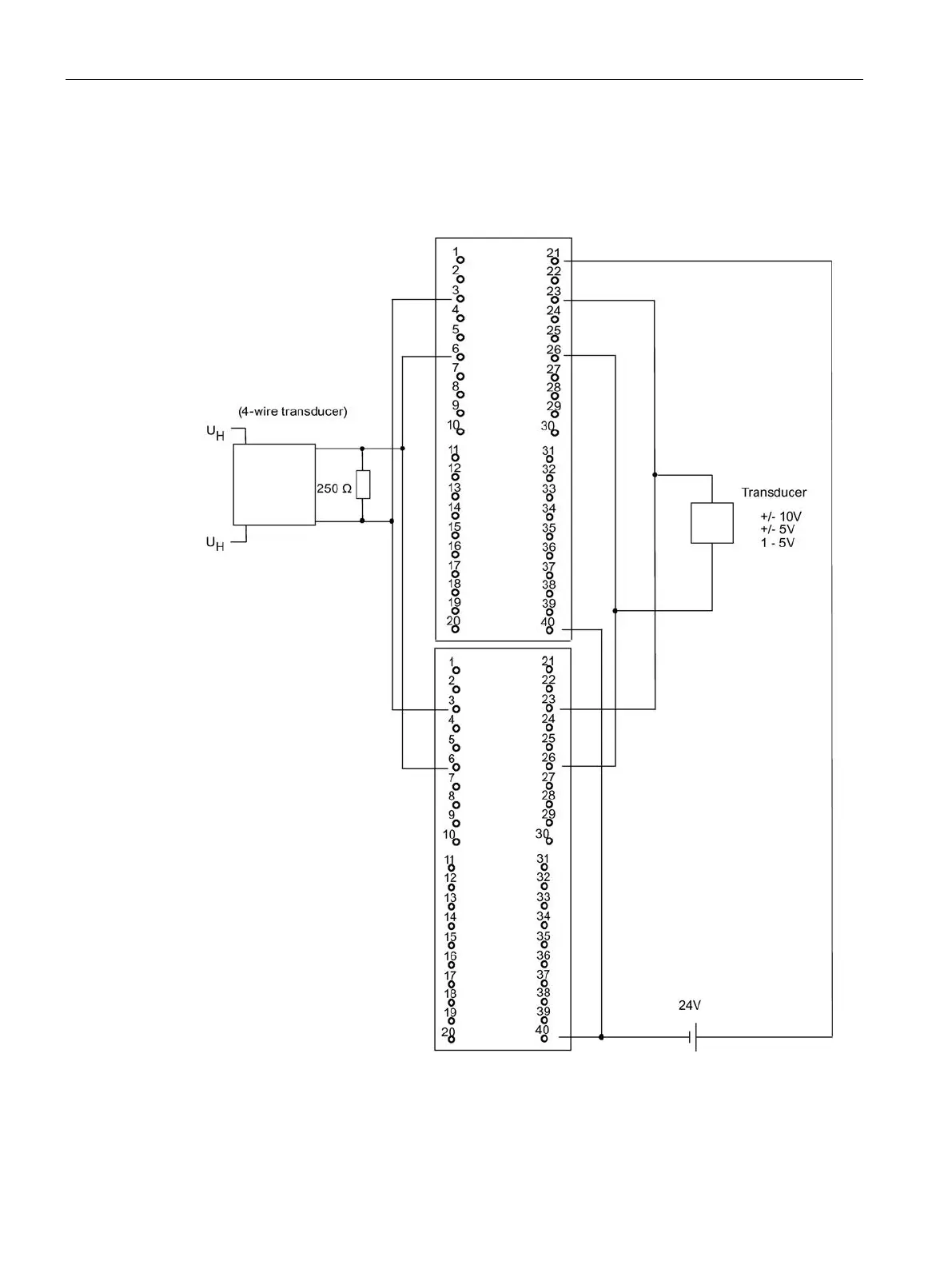

Figure C-30 Example of an interconnection with SM 331; AI 8 x 16 Bit
