4 – 3

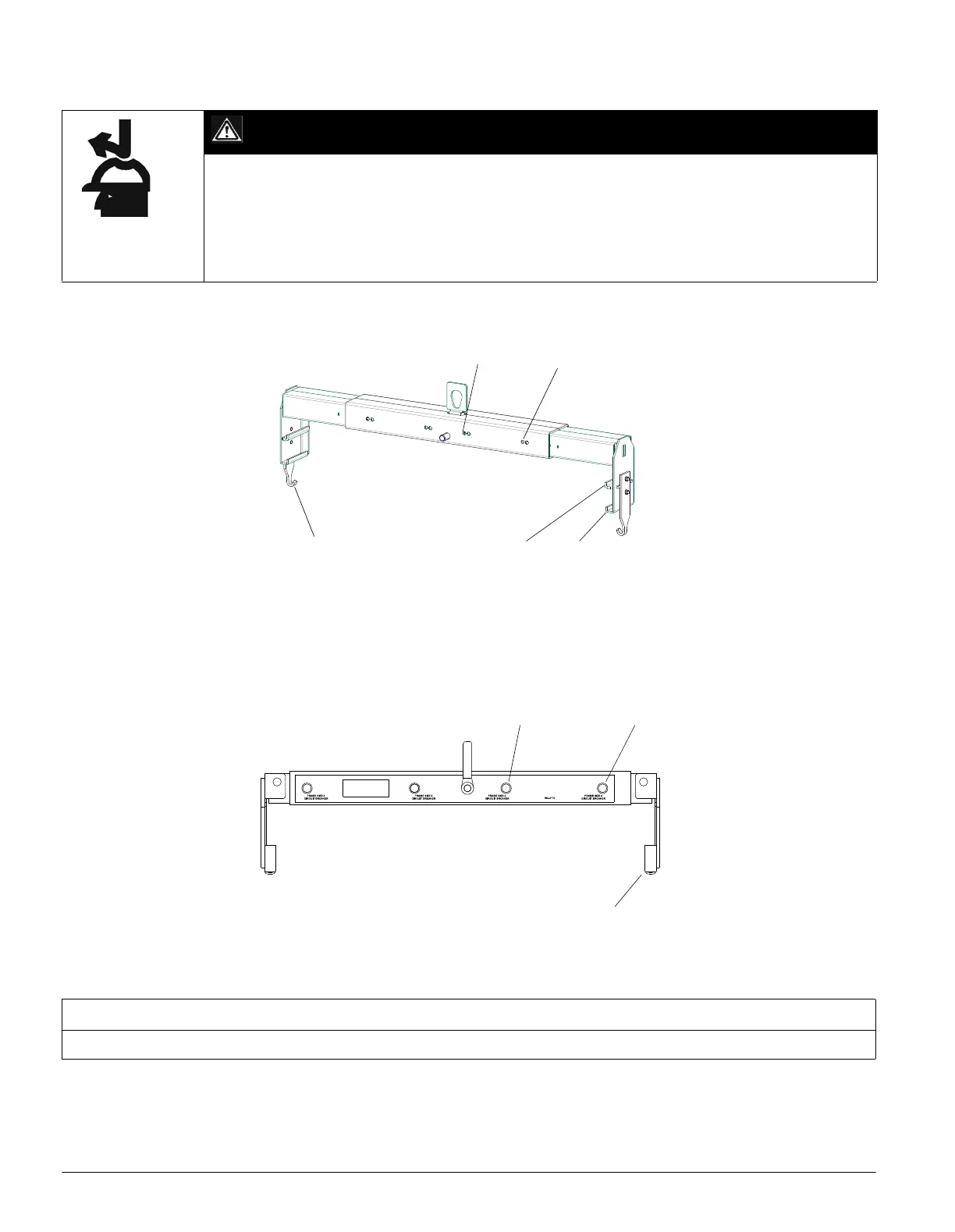

4.4 Lifting with a Lifting Bar Assembly
4.4.1 Lifting bar assembly (3-pole)
(1) Locking position for circuit breaker in frame size II
(2) Locking position for circuit breaker in frame size III
(3) Receptacle for circuit breaker carrying handle FS II / III
(4) Receptacle for circuit breaker carrying handle
(5) Hook for fuse carriage
4.4.2 Lifting bar assembly (4-pole)
(1) Locking position for circuit breaker in frame size II
(2) Locking position for circuit breaker in frame size III
(3) Receptacle for circuit breaker carrying handle FS II / III
DANGER
Heavy Equipment.
Improper lifting will cause death, serious personal injury, or equipment/property damage.
Never lift a circuit breaker or cradle above personnel.Follow instructions for use of lifting bar assembly. 
Use OSHA/NIOSH approved crane equipment and personal protection equipment for lifting/moving the circuit breakers
and cradles.
NOTE
Always lock the lifting bar assembly symmetrically on both sides.
0610_nu
(1)
(2)
(3)(5)
(4)
(1) (2)
(3)
