10 – 1

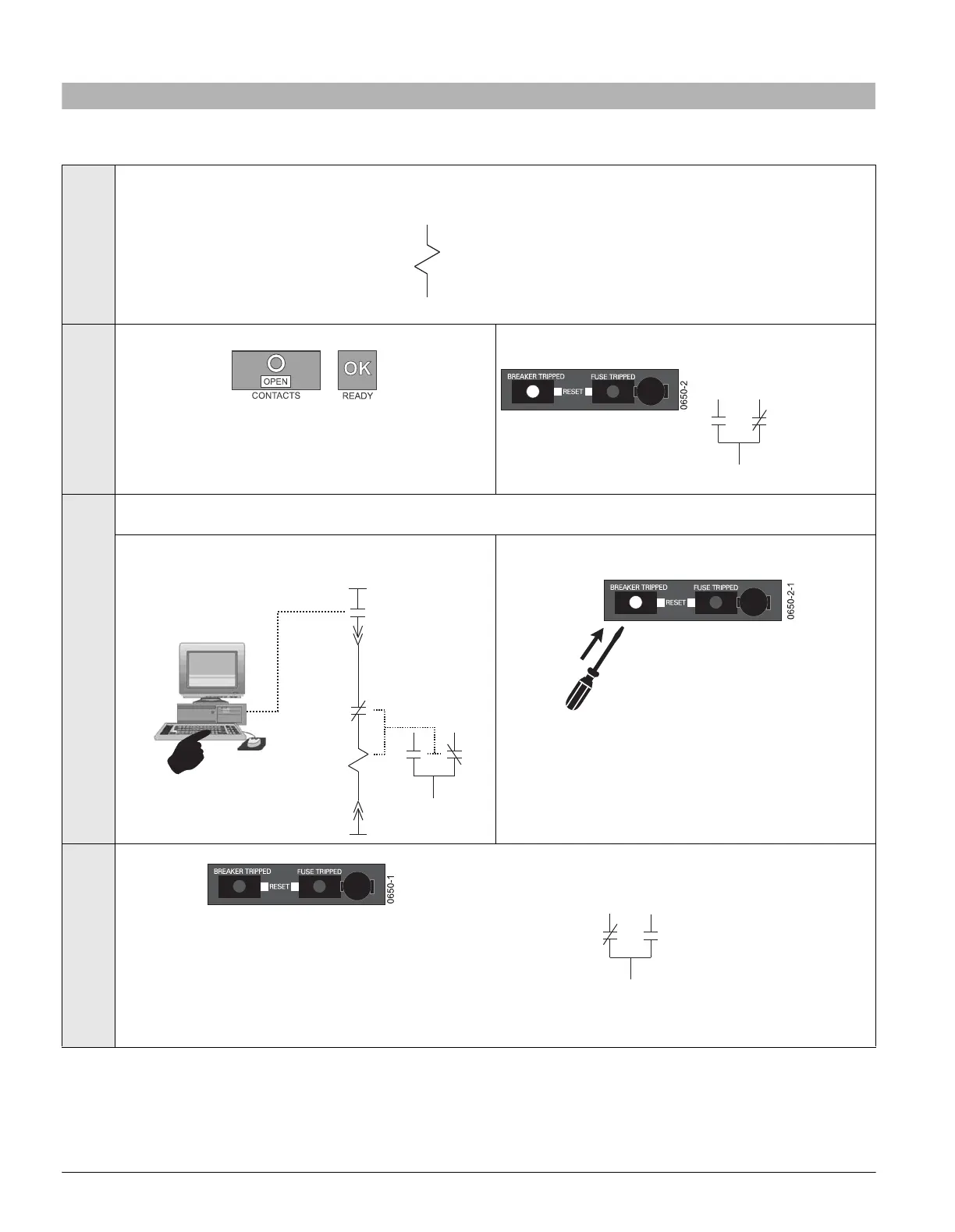

10 Reset the reclosing lockout and the Bell Alarm
10.1 Resetting the Bell Alarm
1
Circuit breaker is tripped by trip unit
Automatic reset
2
Indicators
Circuit breaker is immediately ready to close again,
if closing spring is charged.
Signals
3
Reset Bell Alarm
Electrical remote reset
Option: Electrical remote reset of reclosing lockout and the
Bell Alarm via a remote reset solenoid. (page 10-5)
Manual reset
Press Bell Alarm (red pin), until it latches
4
Bell Alarm Reset
Tripped signal reset
Automatic
reset of the maglatch
Tripping solenoid
Bell Alarm
Trip
X9.12 X9.14
X9.13
S24
0053-06_u
F7
S13
X8.13
X8.14
S24
X9.13
X9.14
X9.12
Bell Alarm
Reset
X9.12 X9.14
X9.13
S24
