12 – 14

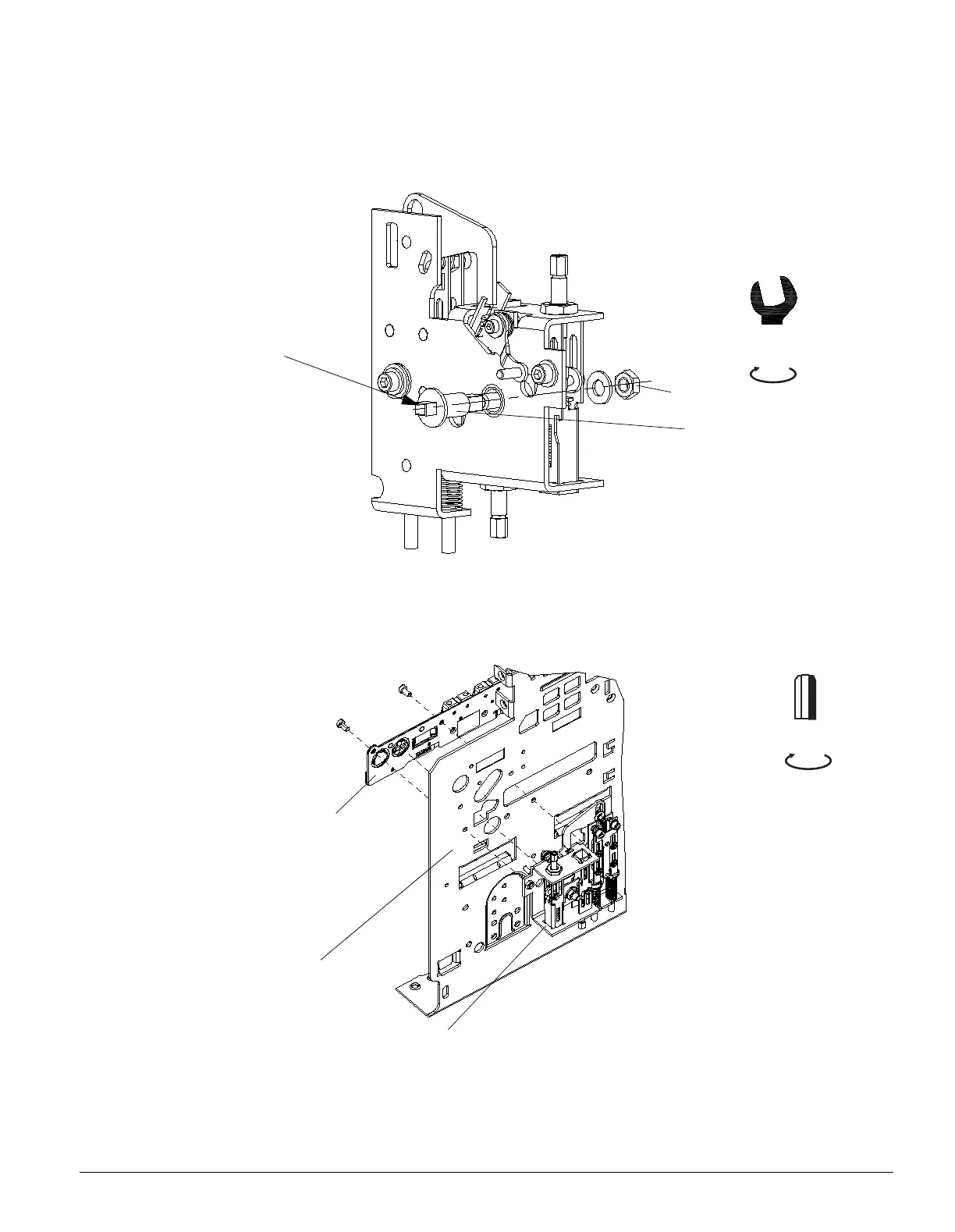

12.8.4 Combination of MOC and

mechanical interlocking module

For the MOC to be combined and operated with the mutual mechanical interlocking module, a special clutch shaft must be used in place 

of the normal one.

(1) Clutch shaft

(2) Lock-nut

12.8.5 Mounting of MOC and mechanical interlocking module on the cradle

Longer side turned upwards

12 Nm

105 lb-in

wrench size

13mm

(1)

(2)

MOC

Side wall

Mechanical interlocking module

8 Nm

71 lb-in

Size
