17 – 4

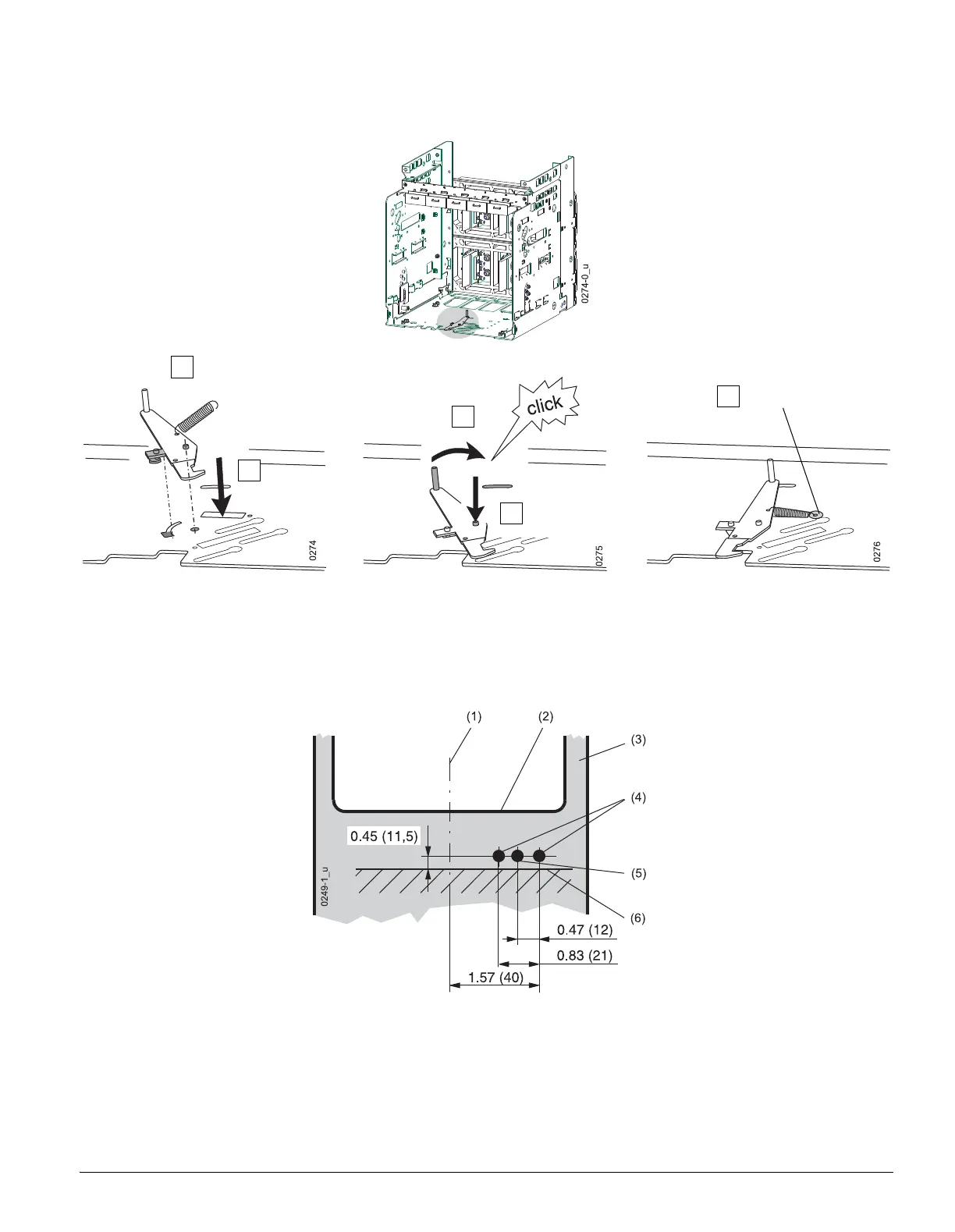

17.2.1 Installing the interlock mechanism to the cradle
Then:
- Insert the draw-out circuit breaker into the cradle and push it into the disconnected position  (page 6-1)
17.2.2 Cubicle door interlock drill pattern
(1) Centerline of breaker front panel
(2) Door cutout for breaker front panel
(3) Inner side of cubicle door
(4) Hole for manual defeat Ø
7
/
32
inches
(5) Hole for manual defeat Ø
7
/
32
inches
Drill this hole only if a manual defeat is required.
(6) Mounting surface
4
Engage tension spring
5
1
Engage tension spring
2
press + hold
3
