Frame size II and frame size III

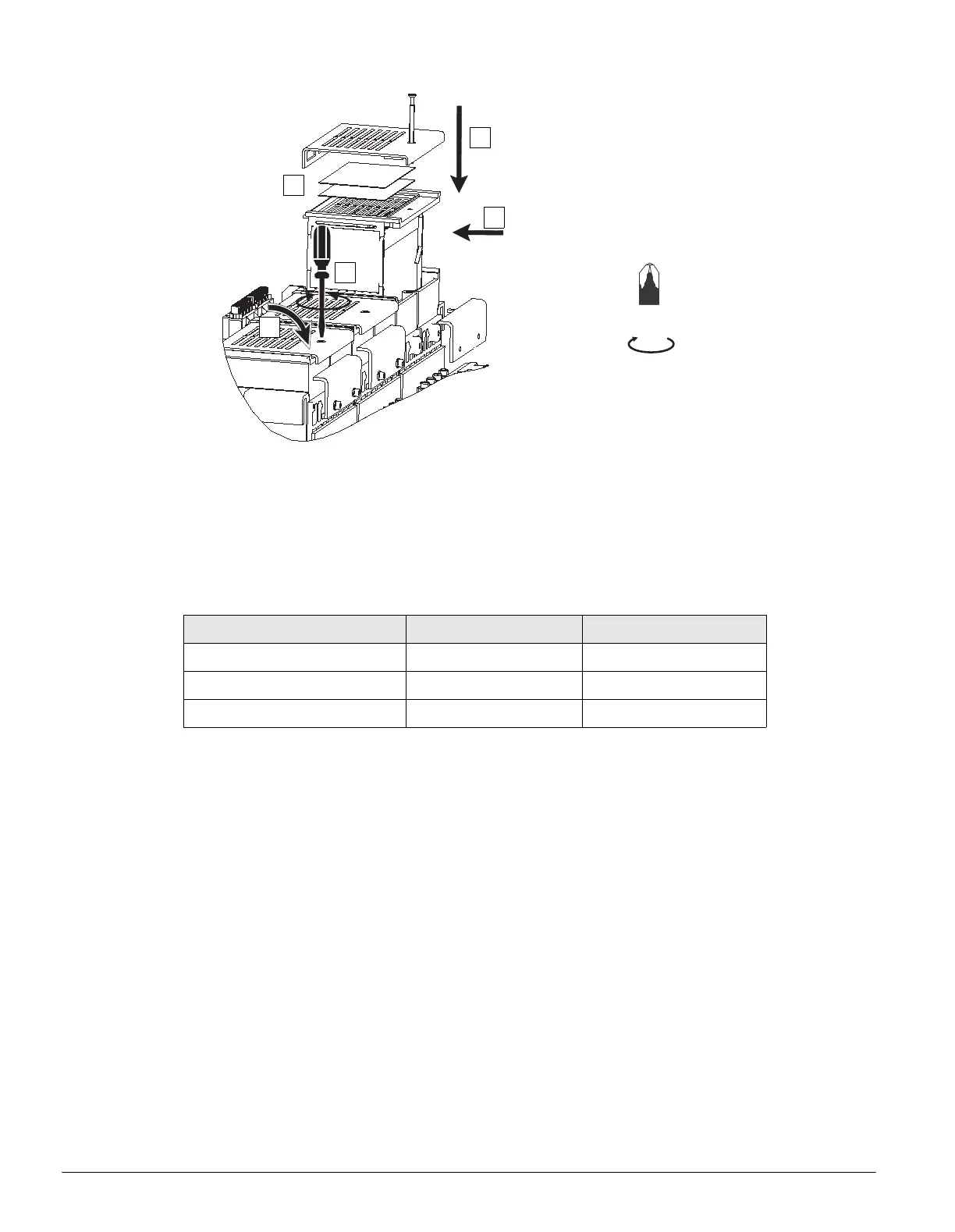

1 Insert arc chute, push cover back if necessary
2 Slide the cover into place
3 Check position of the 2 screens, FS III only
4 Hook the cover carefully into place and fold it down, FS III only
5 Insert the screw and tighten to the specified torque
23.3.4 Catalog numbers
Interrupting class Frame size Catalog No.
all II WLARC2
H, L, F III WLARC3
M III WLARCM3
0
0
4
3
-
0
2
1
2
3
4
5
PH 2
10 Nm
89 lb-in
