Siemens UL 1066 User Manual

6 – 1
6 Commissioning
6.1 Preparation of draw-out circuit breaker
6.1.1 Inserting the circuit breaker into the cradle

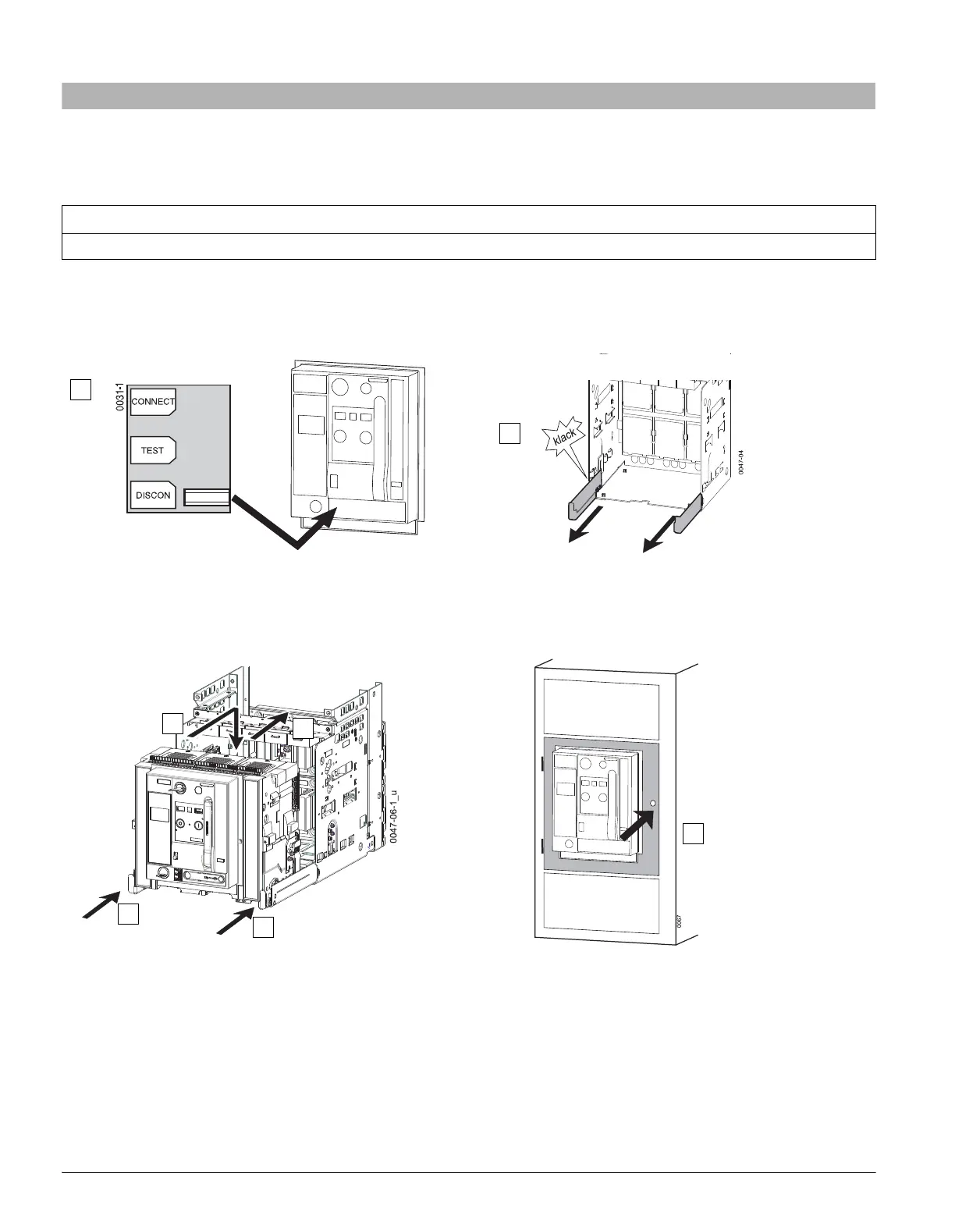

Check circuit breaker position indicator/
Draw out guide rails
1) The circuit breaker can only be pushed in when the indicator displays "DISCON".
2) Pull out guide rails to the end-stop.
Place the circuit breaker into the guide rails and push it into the cradle up to the disconnected position. Close cubicle door.
NOTE
Remove padlocks from the shutter and place the locking device in the stowed position  (page 15-19).
