23.6.8 Order numbers

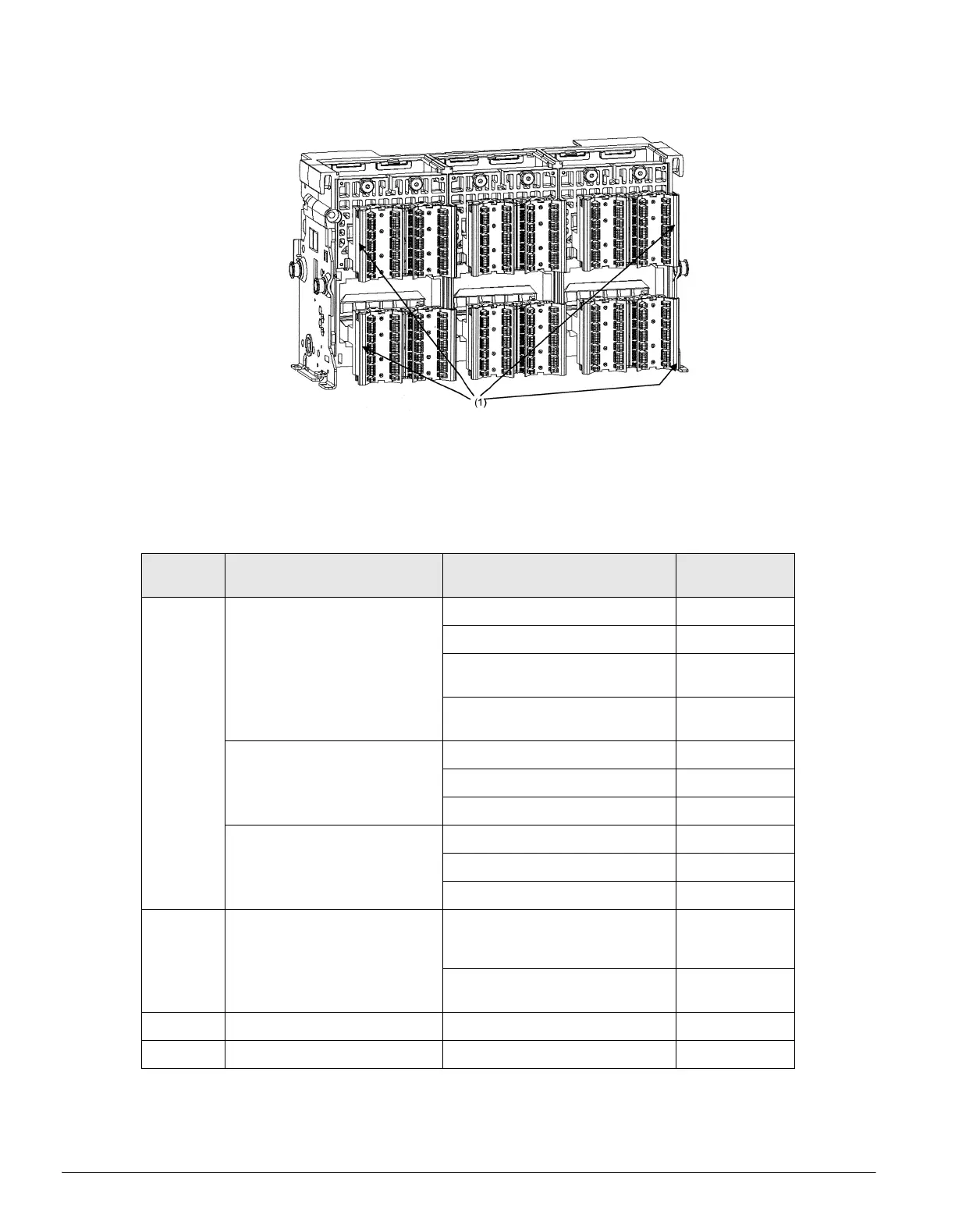

(1) For the noted finger clusters, the finger cluster edge guard should be oriented away from the center pole(s) of the circuit breaker.
For interior poles (i.e. B-phase, and 4-pole A-phase), the orientation is insignificant.
Adjustment of reinforced bend of internal fingerclusters open
Breaker internal contact assembly:
(one required for each phase)
Frame size Max. circuit breaker rated current
I
n max
(A)
Suitable for circuit breaker types Order No.
II
800 / 1600
WLN2A308, WLN2A316 RCS2N10
WLS2A308, WLS2A316 RCS2S10
WLH2A308, WLF2A308, WLH2A316,
WLF2A316, WLF2S308, WLF2S316
RCS2H10
WLL2A308, WLL2A316,
WLL2S308, WLL2S316
RCS2L10
2000
WLS2A320 RCS2S15
WLH2A320, WLF2A320, WLF2S320 RCS2HF15
WLL2A320, WLL2S320 RCS2L15
3200
WLS2A332 RCS2S30
WLH2A332 RCS2H30
WLL2A332, WLL2S332 RCS2L30
III 4000 / 5000
WLH3A340, WLF3A340, WLH3A350,
WLF3A350, WLF3S340, WLF3S350,
WLF3A332, WLF3S332
RCS3HF30
WLL3A340, WLL3A350,
WLL3S340, WLL3S350
RCS3L30
M-class: 3200 / 4000 / 5000 WLM3A332, WLM3A340, WLM3A350 RCS3M30
all all Grease used for assembly WLGREASE
