Remote access via Ethernet
The circuit breaker data, including parameterization, are accessed via customer-side Ethernet. This connection type is only possible in the
BDA PLUS version.

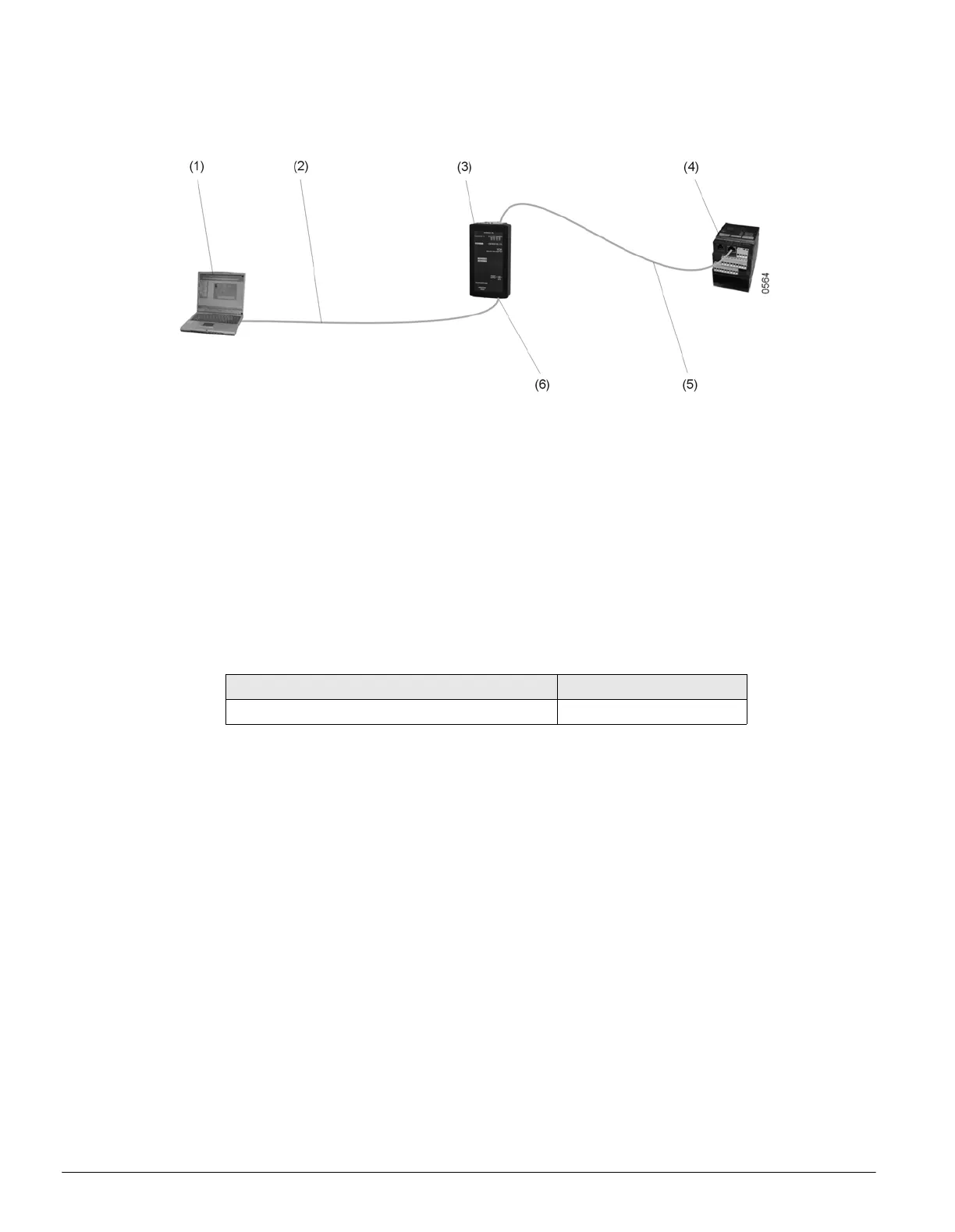

(1) Browser-capable input/output device (e.g. laptop computer)
(2) Ethernet cable
(3) BDA PLUS
(4) External cmodule
(5) Connection cable SUB-D, 15-pole (BDA) to RJ45 plug (c connection)
(6) Ethernet connection
9.4.5 Voltage supply
The BDA requires a voltage supply of 24 V DC. This can be applied via:
- a separate, standard plug-type power supply unit or
-the CublicleBUS with the external voltage supply of the circuit breaker electronics.
9.4.6 Catalog numbers
Catalog No.
BDA PLUS WLBDAP
