9.2.3 External CublicleBUS modules
9.2.3.1 General
Application
External cmodules are used for communication between the WL circuit breaker and the secondary equipment in the circuit
breaker panel. They are provided to control analog indications, transmit the circuit breaker tripping status and the reason for tripping
and to read additional control signals. Furthermore, with one of these modules it is possible to implement a zone selective interlocking for
short-circuit protection.

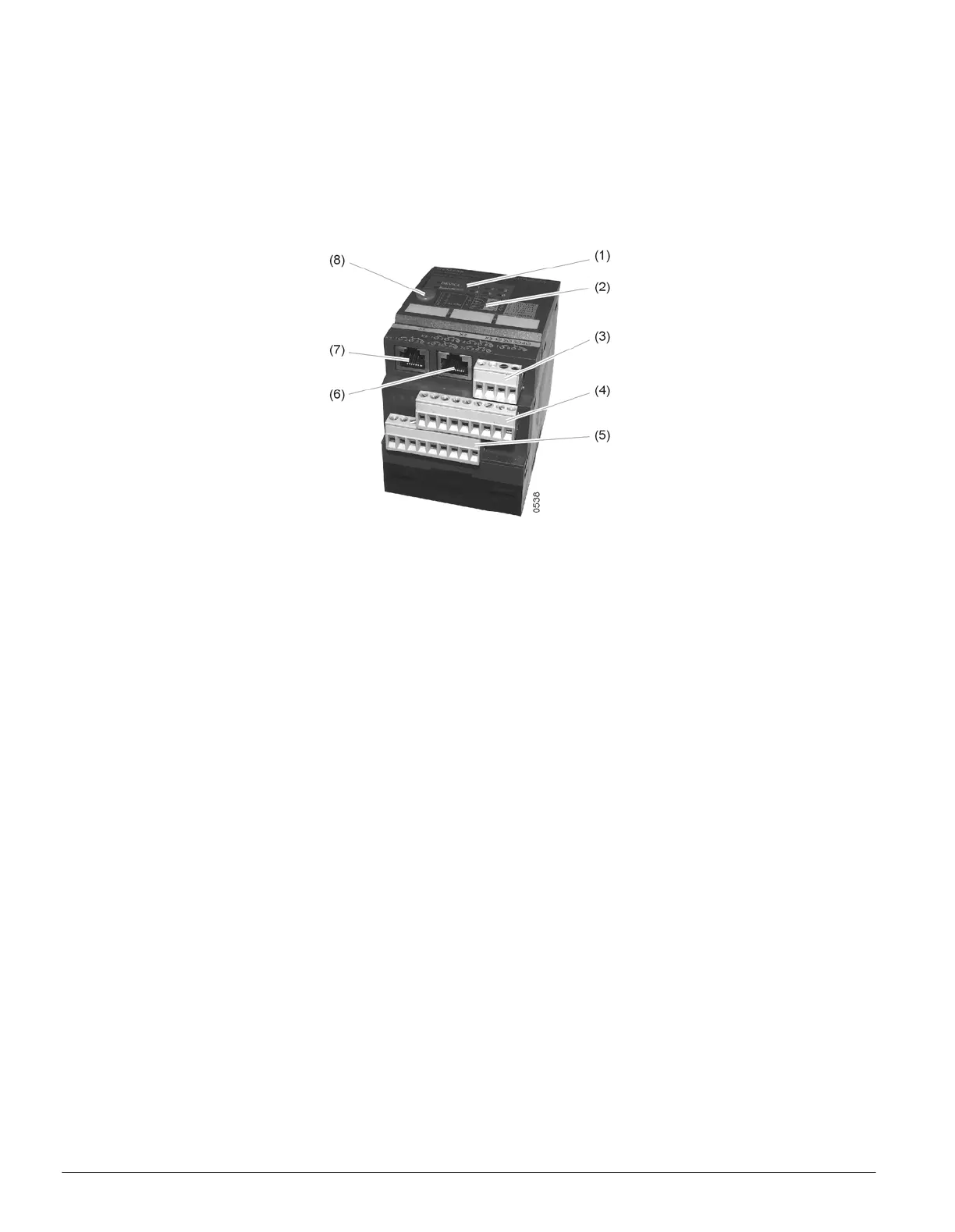

(1) Indicator LED
(2) Rotary coding switch
(3) Connection X3: c
(4) Connection X5: inputs or outputs
(5) Connection X4: inputs or outputs
(6) Connection X2: c
(7) Connection X1: c
(8) "TEST" button
Installation
The external cmodules are snapped onto a standard 35-mm DIN rail inside the switchgear panel. It must be ensured that the
length of the connecting cable of the first module to the circuit breaker does not exceed 6.5 ft.
Connection setup
The cmodules must only be connected to each other and to the circuit breaker using the pre-assembled cables supplied.
These cables are also used for the 24 V DC voltage supply of the cmodules.
If more than two cmodules are connected, the 24 V DC voltage supply must be fed via a separate cable from module to module.
Only one cmodule can be connected directly to a circuit breaker. Further modules must be connected from module to module.
Radial cables are not permissible.
If provided, the ZSI module is always the first module, and must be connected directly to the circuit breaker.
The ccable must be connected to the X3 connection of the last module with a 120 0.5 W resistor.
The total length of the ccables must not exceed 30 ft from auxiliary current plug X8 of the circuit breaker to the last
cmodule.
