23 – 22

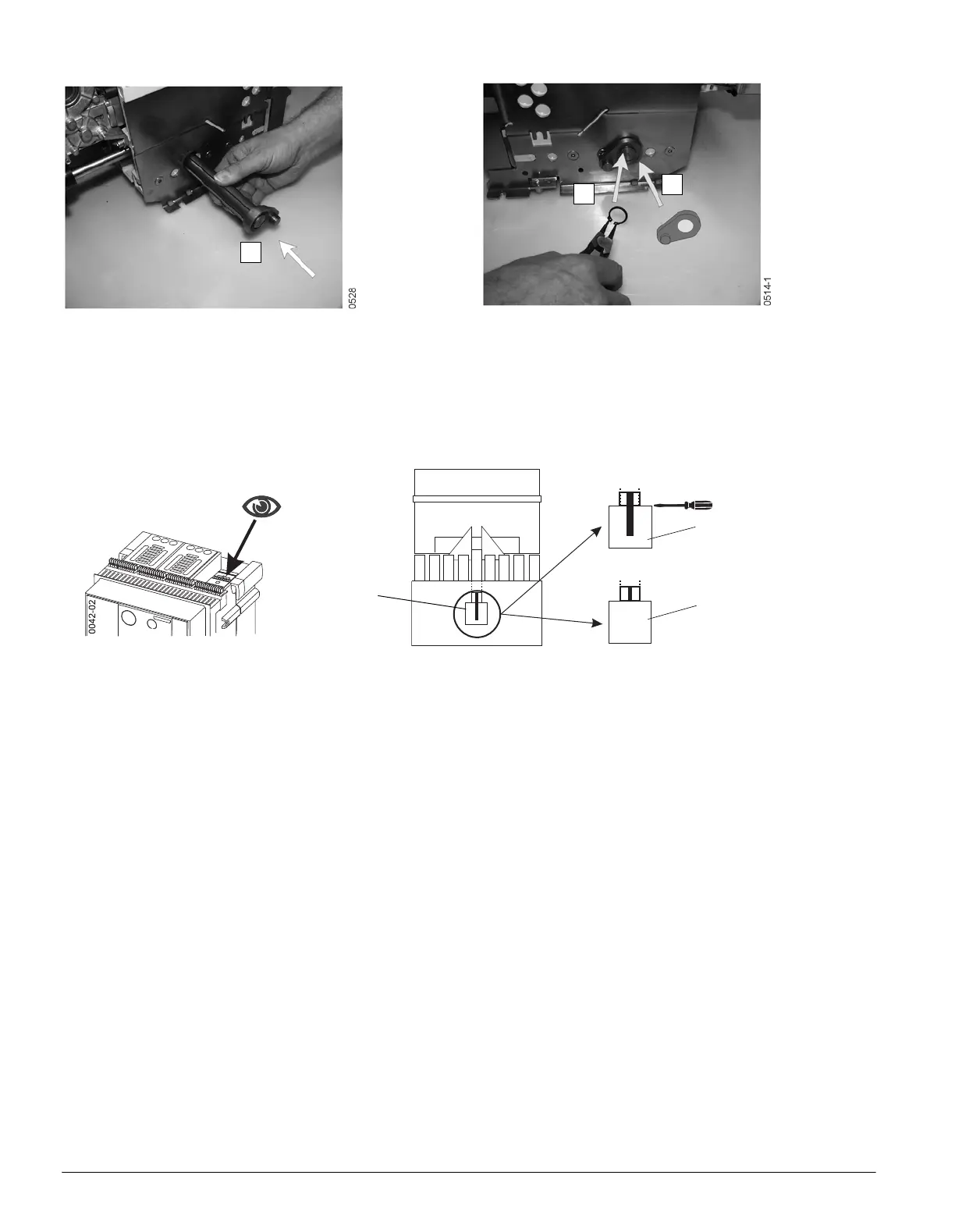

1 Insert racking shaft

2 Mount crank

3 Secure crank

23.6.6 Adjusting the contact wear indicator

- Charge the closing spring manually  (page 6-4)

-Close  (page 6-7))

(1) Indicator pin

(2) Indicator pin before adjustment

(3) Indicator pin adjusted

Using a screwdriver, cut the plastic indicator pin along the upper edge of the large recess.

If the indicator pin is no longer visible, the contact system must be replaced.

0071-2

(1)

(2)

(3)

screwdriver

10 mm / 3/8‘‘ blade
