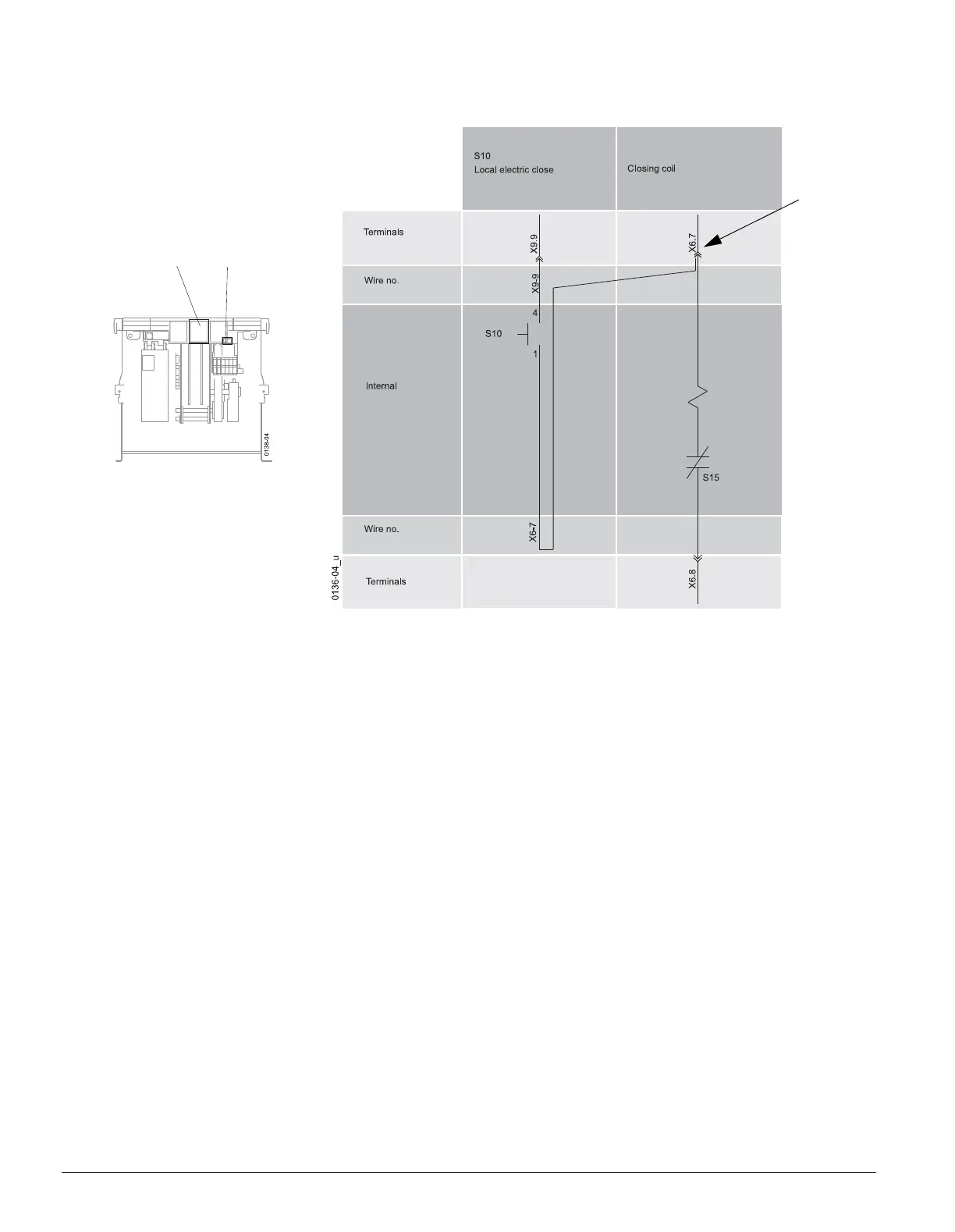

8.5 Closing Coil / Electrical CLOSE
*) Same installation location as S12
1) For circuit breaker equipped with shunt trip and closing coil, the combined cutoff- switch S14 / S15 will be used. (One switch NO + NC is serving both solenoids.)
2) Use twin wire end ferrule
Crimping tool e.g.: Weidmüller PZ3 to PZ6, WAGO Variocrimp 4
CC
S10 *)
CC
CC
b
1)
2)
